P6mm Rental Die Cast Indoor Full Color Color Hang up LED Display
| Price: |
US $ 2000/Square Meter |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal |

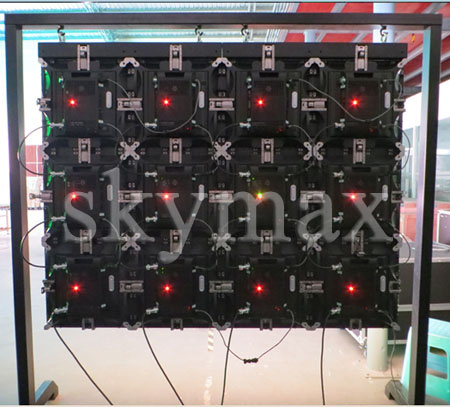

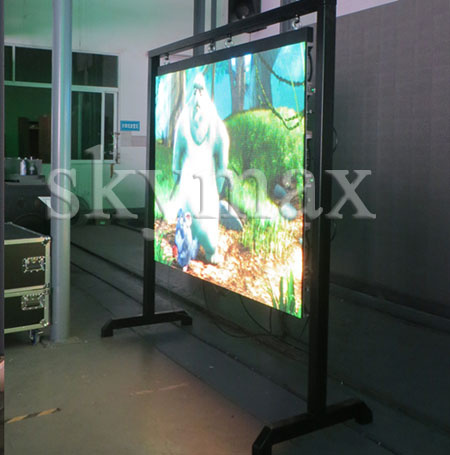

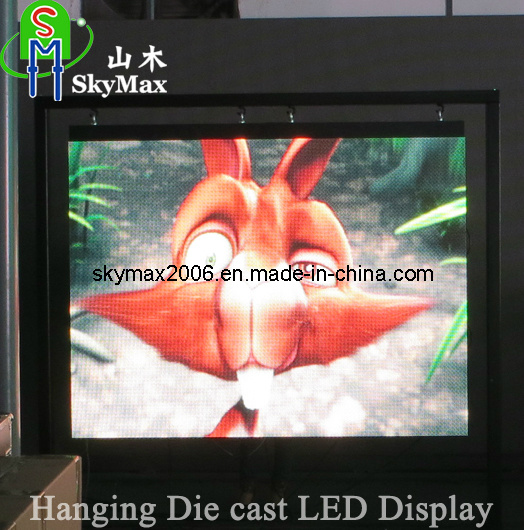

2012 New product die cast aluminum rental led display
High purity aluminum die casting one full HD display serials: SMD P4 SMDP5 SMDP6
1. Light weight: It can be loaded by one person, quick assembling, quick maintain, reduce. Carrying, save costs.
2. Thin cabinet: The thickness isonly10 CM, the space of the screen is small, and the entire screen will be more beautiful.
3. Flat screen: Smooth surface error is under 0.2cm, it can Remove the mosaic phenomenon. Effectively. The effect of the display will be more clear and exquisite.

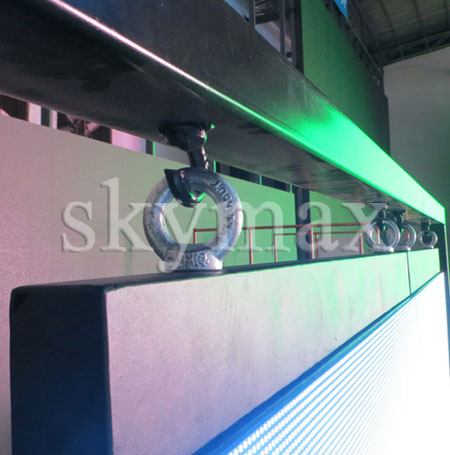

4. Quick dismounting: Adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: Low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
6. Full compatible: New structure design which can demand the indoor displays' require.
Warm prompt:
Now, this new product is good price, if you are interesiting it, please contact us soon.
| NO | Item | parameter |
| module |
| 1 | LED encapsulation mode | SMD3528 surface mounted |
| 2 | Horizontal axis | 120° |
| 3 | Vertical axis | 120° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 6mm |
| 6 | Scan method | 1/10 |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 40× 40dots |
| 9 | Module size | 240mm× 240mm |
| 10 | Module type | Integration of lamp and drive board |
| 11 | Module working voltage | +5V |
| 12 | Module average consumption | 40W |
| 13 | module maximum consumption | 10W |
| 14 | module shell material | PC |
| 15 | module mask material | PC |
| cabinet |
| 1 | Module layout | 2× 2 pieces |
| 2 | Resolution | 80× 80 dots |
| 3 | Cabinet maximum consumption | 200W |
| 4 | Cabinet average consumption | 50W |
| 5 | Cabinet dimension | 480mm× 480mm |
| 6 | Cabinet material | Die-cast aluminum |
| 7 | Cabinet color | black/grey |
| 8 |
|
|
| screen |
| 1 | Application environment | indoor |
| 2 | brightness | > 2000cd /m² |
| 3 | White balance | X=0.29, Y=0.31 |
| 4 | contrast | 64000: 1 |
| 5 | Color Temperature | 8000K |
| 6 | Density (dot/m² ) | 27777 |
| 7 | Average power consumption(W/m² ) | 217 |
| 8 | Maximum power consumption(W/m² ) | 868 |
| 9 | Power supply mode | AC220V/50HZ--AC110V/60HZ |
| 10 | Operating temperature | -20º C to +50º C |
| 11 | Operating humidity | 10%--90% |
| 12 | Storage temperature | -30º C to +70º C |
| 13 | Refresh frame rate | 60Hz |
| 14 | Refresh rate | 480Hz |
| 15 | Viewing distance | 6-100m |
| 16 | Grey level/color | 16.7M |
| 17 | Brightness adjustment mode | Software 100level/ automatic 100level |
| 18 | Control manner | Synchronous with the computer display |
| 19 | Distance of signal transmission | Net cable 100m |
| 20 | Computer operating system | WINDOWS (98, 2000, XP, Vista, 7) |
| 21 | Video signal | VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION etc |
| 22 | MTBF | ≥ 10000hours |
| 23 | longevity | ≥ 100000hours |
| 24 | certificate | UL/CE/CCC |
| Prod Model: |
SM-HANG UP LED DISPLAY SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE; FCC; CCC; UL; RoHS; ISO9001: 2008 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Certification: |
CE |
| System Operating Platform: |
Windows (98, 2000, XP, Vista, 7) |
| Application: |
Rental |
