P6mm Indoor LED Display with 576 Mm X 576 Mm Cabinet
| Price: |
US $ 700-750/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
P6mm indoor LED Display with 576 mm x 576 mm cabinet feature :Super Slim LED display is designed for indoor and outdoor LED display R & D leases. Synchronous control system processing, accept DVI, VGA, HDMI, S-video, composite, YUV input signals, etc., free video, graphics, images, and Mao's program in real time, synchronization, clear information dissemination play each kind of information, and can display 2D and 3D animation, video, TV, VCD programs, and live and so on.
As a new type of advertising display design makes stable, durable, easy to use, suitable for indoor stage, television and other application areas. Achieved without tools to quickly install and maintain, greatly expanding the use of the product areas. High production efficiency and lower operating costs.
p5 Indoor led display application : Indoor Advertisement , Government Project , Theme Park, Stadium , Large Exhibition Hall and so on.
| Item | Indoor Fixed LED display Series |
| Pixel Pitch(mm) | 6mm |
| LED type | 3528 |
| Module Size(mm) | 256mm x 128mm |

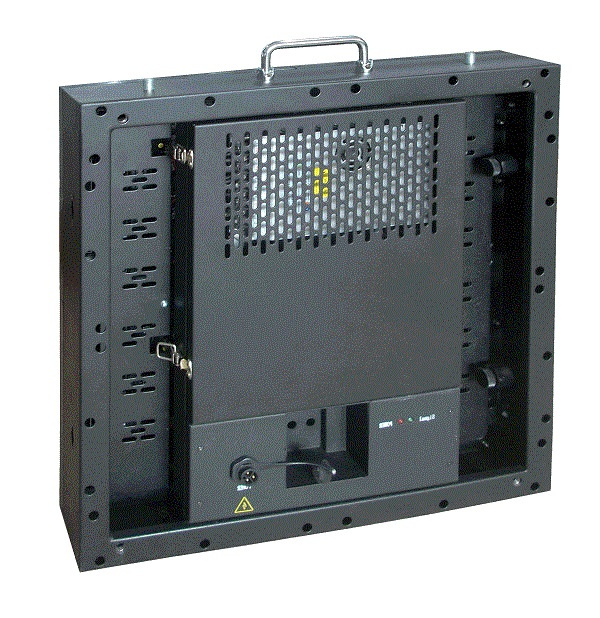

| Cabinet Size(mm) | 576mm x 576mm |
| Brightness | ≥1800cd/sqm |
| Contrasts (Max. /Min.) | 1.1:1 |
| Driving Method | 1/16 |
| View Angle | Horizontal 120° Vertical 120° |
| Optimal Viewing Distance | 3m to 50m |
| Brightness Control | Red, Green and Blue 256 Grade/Each |
| Fresh Frequency | ≥600Hz |
| Frame Frequency | 50 - 60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Defects Rate | ≤0.00001 |
| Screen Weight | ≤12kg/pc for Iron cabinet /8kg/pc for Aluminum cabinet |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Brightness Uniformity | <3% |
| Earth Leakage Current | <3mA |
| Protective Grade | IP45 |
| Temperature-operating | -40ºC~60ºC |
| Humidity-operating | 10%~90% |
| Operating System | Windows98//2000/NT/XP/win7 |
| Prod Model: |
P6 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256 Mm X 128mm |
| LED Type: |
SMD3528 |
| Cabinet Size: |
576mm X576mm |
| Warranty Time: |
2 Year |
| Best View Distance: |
5m -50m |
| Cabinet Weight: |
8 Kg/ PC |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
Window XP , Window 97 |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
