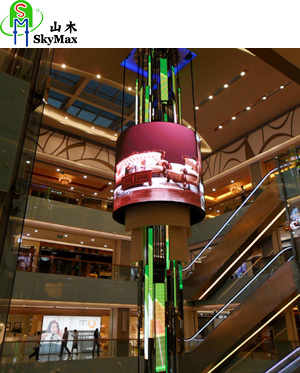

P6 columnar indoor full color LED Display Screen belong to high-end product
In the market at present.
P6 columnar indoor full color LED Display Screen have many advantages:
1. Seamless splicing
2. Meet requirements of circularly display
3. Hight Brightness
4. Diameter is tiny
This project is located Sichun provice China.
Acreage: 12.288m* 3.456m
Why choices SKYMAX? ?
1. Advanced module panel increases the contrast degree of LED display.
2. Our company adopts EMC principles to design printed circuit board, which makes our products pass EMC tests easily.
(1)The best LED display EMC designing is considering the value of the EMC technical parameter at the beginning of the designing process. Therefore, our company chooses raw circuit board and designs circuit based on EMC designing principles. It increases our products' EMC performance and decreases the expense.
3. Our products adopt Taiwan MBI latest energy-saving driving IC chip MBI5035, which can save 35% power consumption maximum.
4. Our products adopt unique power box radiator structure. Which can increase life span of the power box.
5. We adopt small unit module assembling technology which can make circular LED display, more smooth and perfect.
6. LED display 3G/GSM/GPRS data transition control system.
(1) Control System data transition methods include a lot of common network, like 3G\GSM\GPRS\CDMA\INTERNE, it also supports wireless system such as WiFi\ZigBee module\RF wireless module, and our system can connect with network cables\fiber\RS232\RS485.
7. Auto color correction by pixel adjustment technology makes all products perfect.
(1) After LED display working for a long time, LED lamps' lumen depreciation will be different, it makes display's brightness and color different, then performance of the display. Will be worse. Display uses auto brightness adjustment system to adjust the brightness, it makes the display keep the best condition like a new one.
8. We adopt auto pixel inspection technology can find out the broken lamp of LED display automatically, it is more convenient for maintenance.
Remote power box controlling system, it makes "nobody on duty" possible. Out customers do not need to assign a person to check the display all the time.
Customers can open or switch off the display through remote controlling system, monitor cabinet's fan and power box at the same time. The remote controlling system can also monitor the temperature, humidity and smog, it can detect the abnormal cases, switch off the power box and send a mobile message to the display manager.
|
number |
Item name |
Parameter and index |
|
unit module |
|
1 |
LED encapsulation mode |
SMD 3528 Surface mounted |
|
2 |
Horizontal axis |
160° |
|
3 |
Vertical axis |
160° |
|
4 |
Pixel composition |
1R1G1B |
|
5 |
Pixel pitch |
6mm |
|
6 |
Diameter |
1.712 m |
|
7 |
High |
1.536 m |
|
8 |
Module amount |
96*192 |
|
unit cabinet |
|
1 |
C abinet material |
aluminum alloy |
|
2 |
Cabinet color |
black/gray |
|
Entire screen |
|
1 |
brightness |
> 1800cd/m² |
|
2 |
Operating temperature |
-10º C~ +45º C |
|
3 |
Operating humidity |
10%---90% |
|
4 |
Viewing distance |
6-100m |
|
5 |
Longevity |
≥ 100000 hours |
