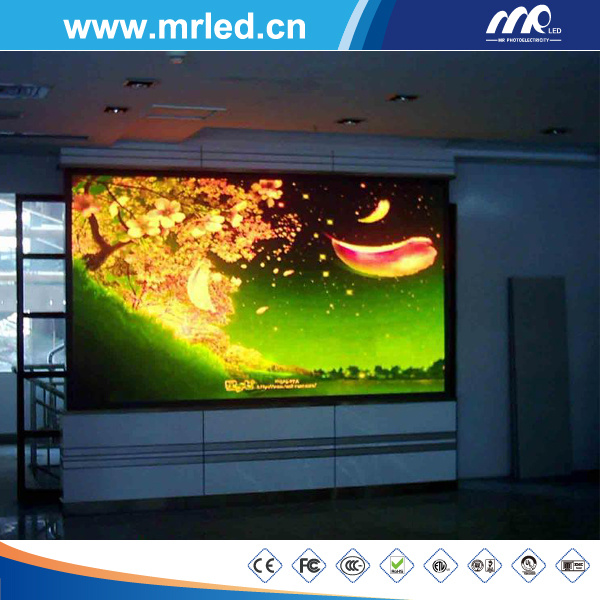

P6 Indoor Full Color LED Screen Display
Full color LED display screen---MR-P6 Full color LED Display screen
1. Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
MRLED Products Advantages:
1. MRLED guaratee our products two years'quality assurance period(warranty is 2 year from the shipping date)
2 Whin the warranty: The failure caused by product quality problems can be returned to us for maintenance;
The damage to the product caused by users' human factors is only available for fee maintenance service. MRLED would offer some spares to reduce the maintenance time.
3. Exceed the warranty, only material cost is charged for depot repair, and users need undertake engineers' travel subsidy costs and transportation and accommodation costs if need on-site maintenance
4. We will send engineers to direct installation and training for customers' technicians
5. MRLED will send engineers to our customers for inspection and maintenance or the screen each half year
6. MRLED provide 24-hour-free-technical-support by telephone or email.
Products list and application area:
1. Indoor full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display
2. Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,
3. Full spec, such as P2.5mm, P3mm, P5mm, P6mm, P7.62mm, P8mm, etc
Display and Control Feature | Structure Feature |
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 6mm | Module size | 192mm*96mm |
Pixel composing | 1R1G1B | Display resolution/module | 32 dots*16 dots |
Wavelength (R) | 625±5 | Standard cabinet size | 960 mm*768mm |
Wavelength (G) | 522±3 | Weight per sqm | 45 Kg/sqm |
Wavelength (B) | 567±3 | Protection classification | --- |
Wave Angle (H) | 140°(H)/140°(V) | Install mode | Wallmount, hung and stand structure |
Led package | SMD 3in1 | SMD Type | SMD 3in1 |
Density | 27,777 | Working Power |
Display color | 16384*16384*16384 | Specification | Parameter |
Whiteness brightness | ≥2000cd | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 16384grade | Max power/sqm | 1100W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 750W/sqm |
Refresh | 1600 Hz | Short circuit protection | Yes |
Driving method | Constant driving 1/8 |
|
|
Control mode | synchronous | Working Environment |
Display port | DVI | Specification | Parameter |
Display mode | 1024*768 1024*1024 | Environment | Indoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --5~50 |
lifetime | 100,000 hours | Working Humidity | 10~90% |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
