Product features
1. Simple structure, easy to assembled and maintained.
2. Specially designed for indoor long viewing distance.
3. Portable, convenient, big pixel pitch, very cost effective.
4. No-fans design. With lower sound, better heat dissipation, lower consumption, higher reliability.
5. Bright color, quick respond, long life span. Environment friendly and energy saving.
6. Strip structure and eliminating nearly all limitations on display size.

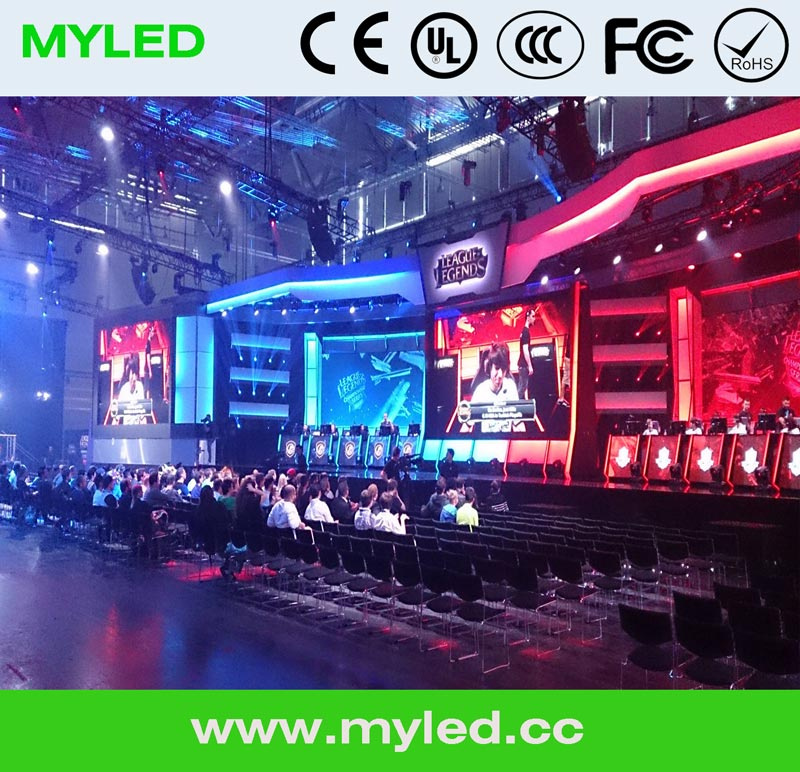

7. Mainly applied in indoor stage background for concert, curtain wall building, large advertising display, clubs, etc.
Display and Control Feature | Structure Feature |
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 7.62mm | Module size | 305mm*366mm |
Pixel composing | 1R1G1B | Display resolution/module | 40 dots*48 dots |
Wavelength (R) | 625±5 | Standard cabinet size | 610mm*732mm*60mm |
Wavelength (G) | 522±3 | Weight per pcs | 8.90 Kg/pcs |
Wavelength (B) | 567±3 | Protection classification | --- |
Wave Angle (H) | 120°(H)/120°(V) | Install mode | Wallmount, hung and stand structure |
Led package | SMD 3528 |
Density | 17222 | Working Power |
Color Depth | 14 bits | Specification |
Whiteness brightness | ≥1800cd | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 128 grade | Max power/sqm | 155W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 330W/sqm |
Refresh | 960 Hz | Short circuit protection | Yes |
Driving method | Constant driving 1/8 | LED Chip | Silan |
Control mode | synchronous | Working Environment | 10~90% |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
