P6 Hr Indoor Full Color LED Display

P6 Hr Indoor Full Color LED Display
Price: US $ 600-650/Square Meter
Min Order: 1/Square Meter
Pay Type: T/T,Western Union



Product Description



Our products:
    We specialize in producing and developing all kinds of led displays. As a reliable LED Display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price.

Our features and advantages:
1.High quality:
    Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.

2.Good effect:
    To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.

3.Easy maintenance:
    Can fix the single point to save the maintenance cost.

4.Good uniformity:
    Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well

5.Price
    No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!

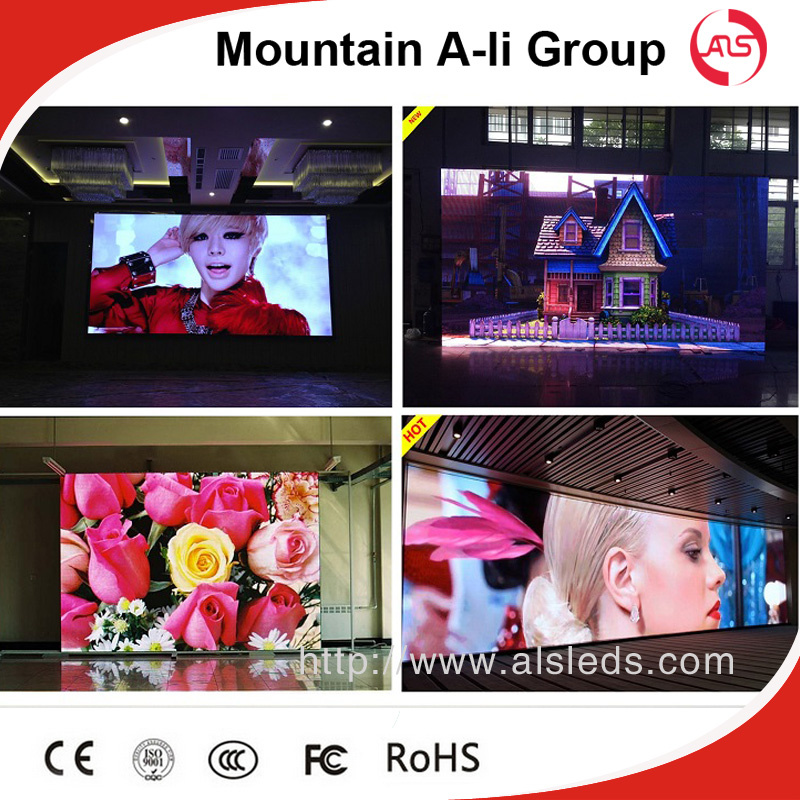

6.Application
    It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.


Remarks
1.Payment term:
    30% T/T in advance and balance before delivery.

2.Delivery time:
    Within 15 working days after 30% advance payment.

3.Free training:
    You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.

4.Installation:
    We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.

5.Service after sales:
    If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.




Parameter

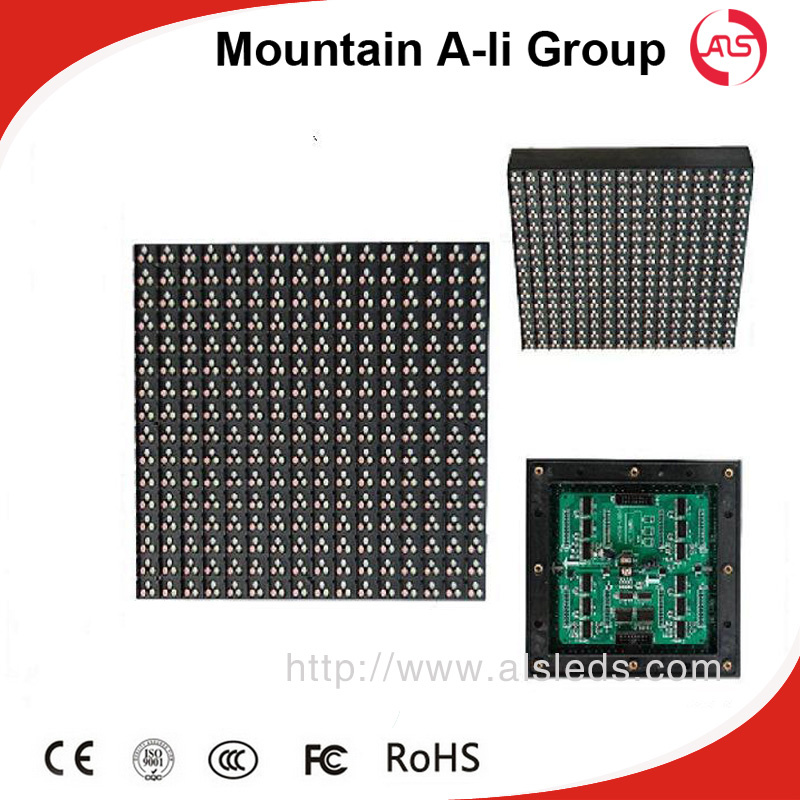

The specifications of modules
ItemsParameter
 Model Number ALS-P6-4S
Module size192mm*96mm
Pixel pitch6mm
Pixel density27777dots/m2
Pixel configuration1R1G1B
Module resolution32dots(W)*16dots(H)
Module maximum power consumption15W
Module Thickness2.7CM
Module Weight0.4kg
Driving methodConstant Current Driving
Scanning method1/8scan
InterfaceHUB75B
Brightness of white balance ≥3000cd/m2
The specifications of cabinets
Thermal discharge fan 2pcs
Pixel per cabinert 96mm*96mm
Dimension 576mm*576mm
Module quantity32pcs
Power supply5V/40A 5V/60A
Cabinet resolution128*128dots
Optimal viewing distance6M~40M
Optimal viewing angle160°(W) 120°(H)
RHWorking temperature(Work :-20°C~+60°C)
System operating humility10%-95%
The specifications of power supplier
Operating VoltageAC220V±10%
Average power consumption270W/m2
Maximum power consumption≤810W/m2
Electric current≤20mA(single LED)
The specifications of control card
Control PanelsPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters
Driving deviceConstant Current Driving
Refresh rate≥400HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900
Prod Model: p6 indoor led display
Model No.: P6 Full Color LED Module: Tube Chip Color: Full Color
Pixel Configuration: 1r: Display Function: Video Display
1g: Certification: Ce
1b: RoHS
Application: Advertising: CCC
Export Markets: Global: EMC/ISO9001/FCC
Standard: According To Cabinet Size And: Interface: Hub75-a
Origin: Shenzhen: Packing: Woodencase and Flight Case
China: Shenzhen
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 6mm
Scanning Mode: 1b
Display Type: LED Video Display
Application: Win/XP/2000/98
Certification: CCC
Pixel Configuration: 1r
Pixel Density: 1g
System Operating Platform: 27777D/M2
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
