6mm Outdoor HD Rental Full Color LED Display Screen for Advertising

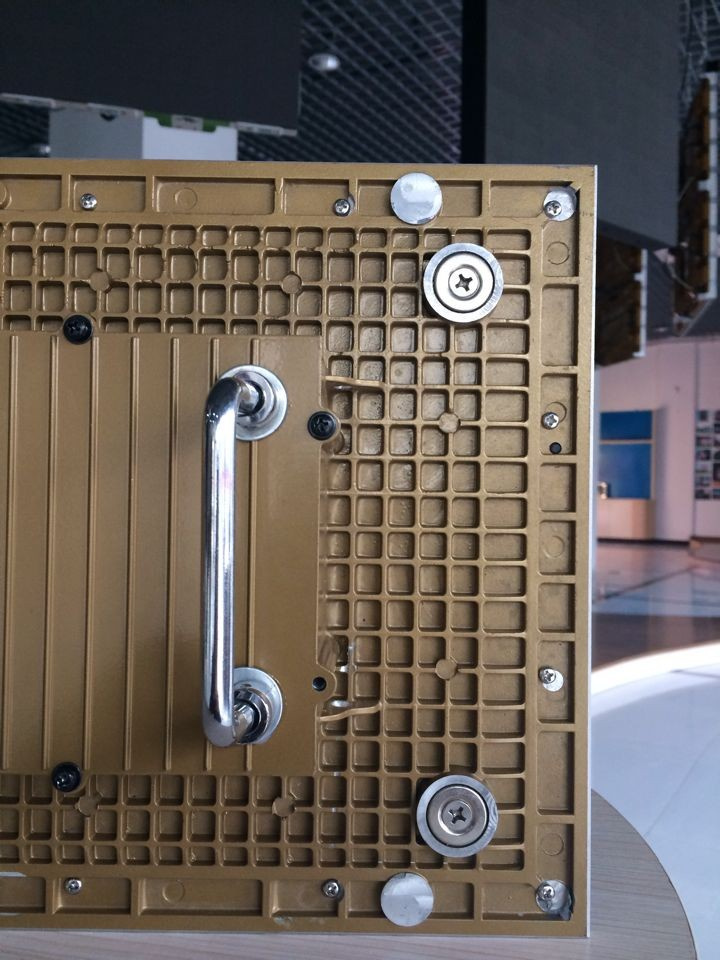

Retop is taking its new product to a completely new level with the introduction of outdoor 6mm SMD LED display module with IP 65 front and rear waterproof. Fully engineered and manufactured by Retop, the outdoor 3-in-1 SMD LED display screen module is designed for multiple usage for fix and rental installation.
The extremely lightweight and slim profile design enables the LED screen module only 12.5 kg with the size of 576mm x 576mm. The full outdoor brightness can be achieved to minimum 5, 000 nits. Exploring new concepts and satisfying our customers' demanding are always Retop pursuing.
| Resolution | 6 mm |
| LAMP | LED Type | SMD 3-in-1(4040) |
| Wave length | R: 620 nm |
| G: 524 nm |
| B: 468 nm |
| BOARD | Pixel configuration | 1R1G1B |
| LED driving method | 1/8 dynamic scan |
| Pixels | 48 | * | 48 | (W*H) |
| Pixel pitch | 6 | mm |
| Led board size | 288 | mm | * | 288 | mm |
| W*H |
|
| MODULE | Led boards | 2 | * | 2 | (W*H) |
| Pixels | 96 | * | 96 | (W*H) |
| Module area | 0.33 | m 2 |
| Module size | 576 | mm | * | 576 | mm | * | 85 | mm | (W*H*D) |
| Net weight | 16.0 | kg | (aluminum) |
|
| Power | AC220/110 ± 10%, 47~63Hz |
| Water proof | IP65(Front)/IP54(Rear) |
| Serviceability | Front service |
| DISPLAY | Max. power consumption | R | ≤ | 980 | W/m 2 | N | ≤ | 780 | W/m 2 | C | ≤ | 860 | W/m 2 |
| Avg. power consumption | ≤ | 343 | W/m 2 | ≤ | 273 | W/m 2 | ≤ | 301 | W/m 2 |
| Max. current (208V 60Hz) | ≤ | 5.24 | A/m 2 | ≤ | 4.17 | A/m 2 | ≤ | 4.59 | A/m 2 |
| Hor. viewing angle(min 50% brightness) | 120° |
| Vert. viewing angle(min 50% brightness) | 120° |
| Brightness | ≥5000 cd/m 2 |
| Pixel density | 27777 | /m 2 |
| Power factor | >0.9 |
| Contrast ratio | 2000:1 |
| Operating temperature | -20ºC to +50ºC |
| Operating humidity | 20% to 90% |
| Lifetime (50% brightness) | 100,000 hours |
| Processing | 14 bit |
| Colors | 281 trillion |
| Refresh rate | ≥ 2000 Hz |
| Frame rate | 60 fps |
| Brightness level | Manual 100 levels,automatically 16 levels. |
Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.
Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
