Home LED Light Products P6.67mm High Brightness Outdoor Rental Full Color LED Display

P6.67mm High Brightness Outdoor Rental Full Color LED Display

P6.67mm High Brightness Outdoor Rental Full Color LED Display
Price: US $ 1700-1900/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
P6.67mm High Brightness Outdoor Rental Full Color LED Display

Application

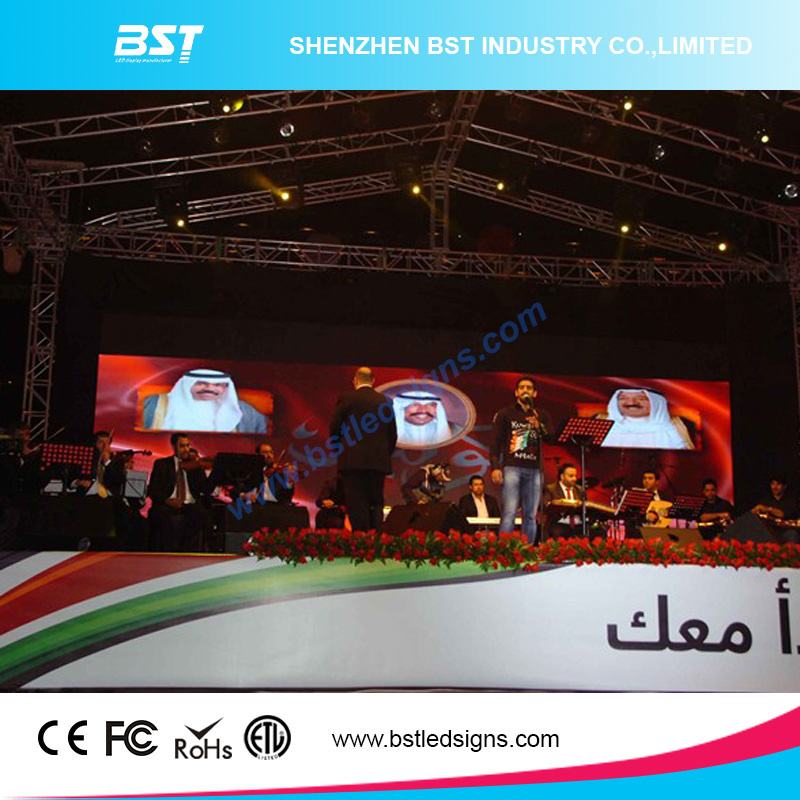

BST SIGN's LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.

Feature

1. Standard cabinet design and component design
The size of this LED display screen cabinet is only 640x640mm, adopt industry-standard connector. Reduces maintenance time and costs.

2. Lightweight, ultra slim and Seamless splicing
The weight of this LED display screen cabinet is only 13kg, ultra slim, very easy to transport, stock and install. Seamless splicing advance visual performance.

3. Fanless design, silent operation low heat generated
Low voltage input, low heat generated and fanless design, advance LED Screen reliability.

4. IP65 rated Weatherproof Class
Special designed cabinet for outdoor environment, waterproof LED module with Glue filling technology, standard signal & power interface with waterproof function.

5. Wide Viewing angles, High contrast ratio
Horizontally 140 degree, Vertically 140 degree wide viewing angles.
6. High brightness make sure visibility
Brightness is higher than 5500nits make sure visibility even directly under sun light.


Specification

ModelOR-6.67
Pixel Pitch6.67mm
Pixel Density22478 pixels/m2
LED TypeSMD3535
LED Configuration1R1G1B
Cabinet Dimension640mmx640mm
Cabinet Resolution96*96pixels
Cabinet Weight13kg
Cabinet Materialdie casting aluminum
Ingress Protection(front/rear)IP65/IP54
Brightness>5500nits
Viewing Angle(H/V)140°/140°
Driving Method1/6 Scan
Frame Refresh≥ 60Hz
Data Refresh Rate>1500Hz
Gray Scale16bit
Power Consumption(avg.)300w/m2
Input VoltageAC 110/220±10%,  50~60Hz
Temperature(operating/storage)-20~50°C / -40~60°C
Humidity(operating/storage)10%~90%RH / 10%~85%RH
MTBF≥1000hrs
Life Span≥50000hrs
Pixel Failure<0.0003
Prod Model: 6.67mm, 8mm, 10mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time: 15~25 Working Days
Warranty Time: 2 Years
Cabinet Size: 640X640mm
OEM: Yes
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 300W / m²
Display Type: LED Video Display
Application: Stage Performance
Certification: ETL
Pixel Pitch: 6.67mm
Pixel Density: 22478pixels/Sqm
Scanning Mode: 1/6 Scan
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.

Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.

We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
