Home LED Light Products P6.67 Mm Full Color Rental LED Display for Outdoor Video Wall

P6.67 Mm Full Color Rental LED Display for Outdoor Video Wall

P6.67 Mm Full Color Rental LED Display for Outdoor Video Wall
Price: US $ 1630-1800/Square Meter
Trade Terms: FOB,CIF,others
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
640 MM  X 640MM Die cast rental LED Display



Detail specification

ParametersOutdoor Die-casting LED Display Series  (  640 MM X 640MM )
Pixel Pitch (mm)6.67mm8mm10mm
Pixel density(pix/m2)225451562510000
LED Type353535353535
Viewing AngleX,Y140°X,Y140°X,Y140°
Brightness(nits)≥5000≥5000≥5000
Drive Method1/61/51/2
Color Depth65536
Refresh Rate(Hz)192019201920
Module Size (mm)320×160×16
Cabinet Size(mm)640×640×80
Cabinet Materialaluminum
Cabinet weight(kg)121717
Voltage200-240V
Average.power(W/m2)230230230
Max.power (W/m2)700700700
IP GradeIP65/IP54
Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humiditytemperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)≥50000
Compliant StandardCCC(CE)Rosh


Feature :


P65 and Seamless Connection ,New design, suitable for outdoor live show, brightness adjustable facing the sunshine directly, waterproof IP65. neither flick nor color blocks.

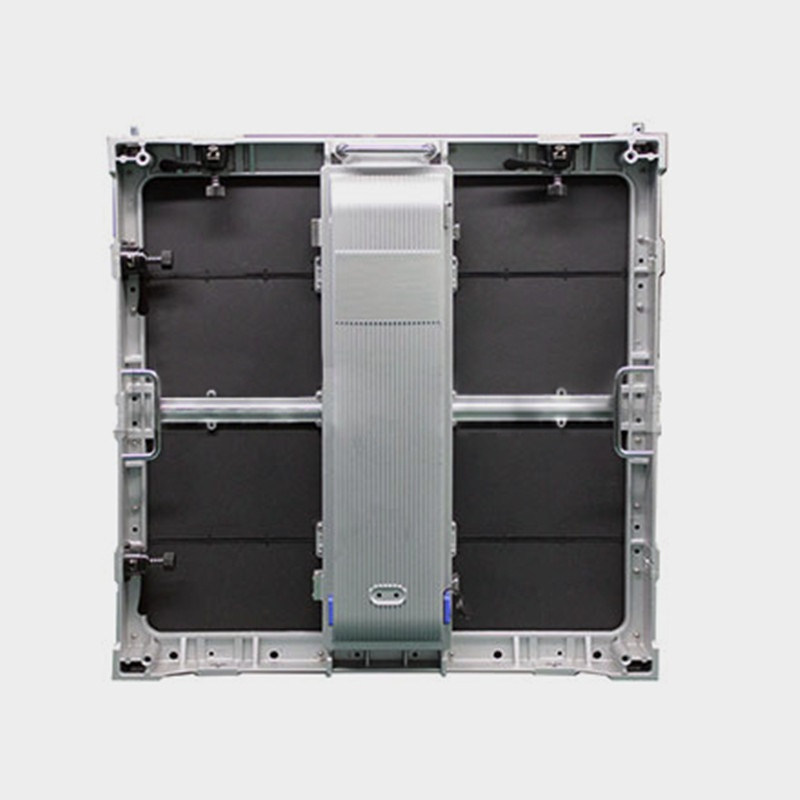

Die casting aluminum cabinet size 640mm*640mm, seamless connection, 0.1mm gapline between 2 cabinets.

Quick and Easy Installation in 5 Seconds ,Fast lock for quick and easy installation.
Maximum support 50pcs hanging in a collum




Factory aging view  :

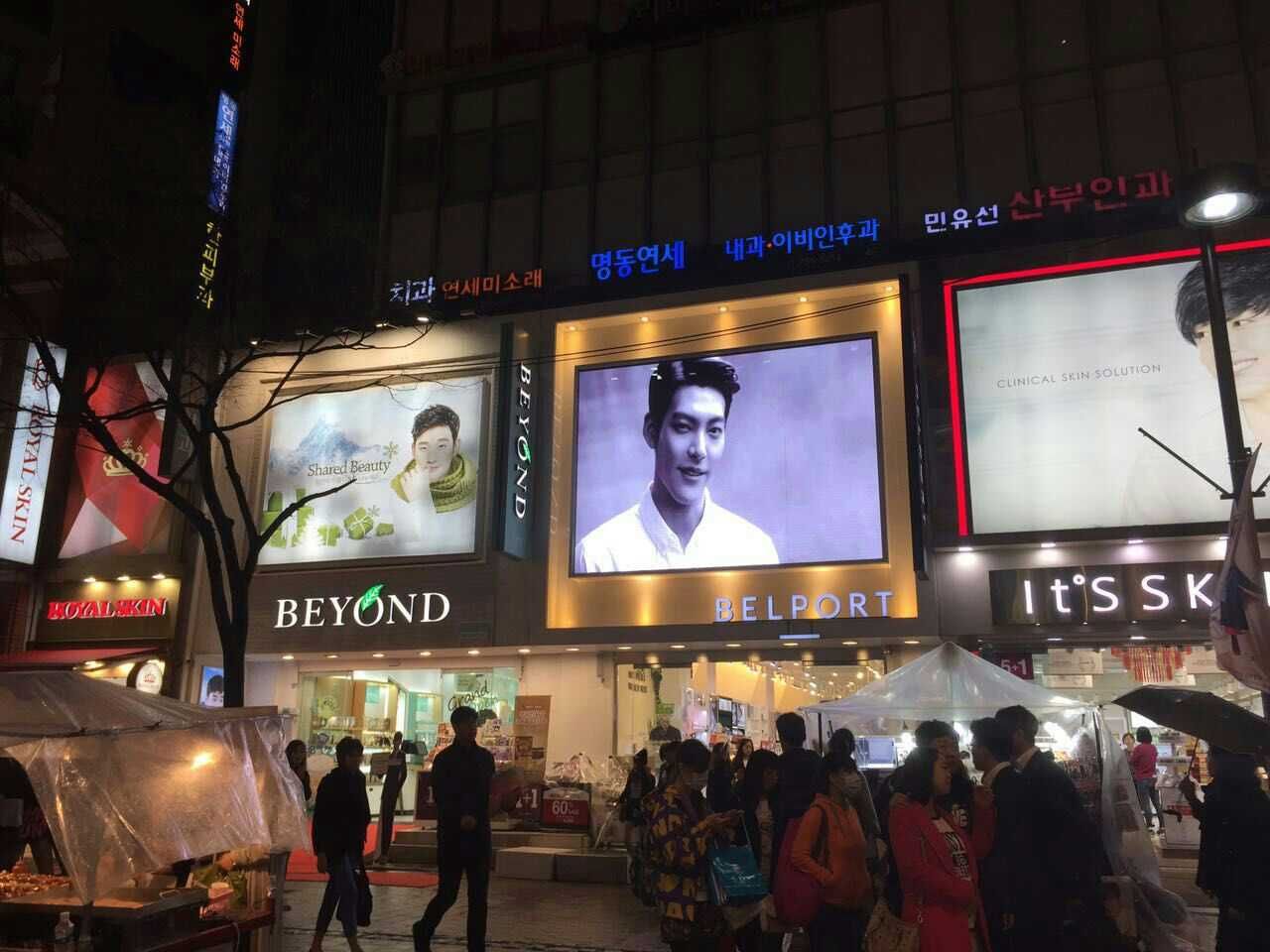

Install in Korea Project view :







Prod Model: P6.67mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: SMD3535 Outdoor LED Display
Cabinet Size: 640mm X 640mm X 85mm
Cabinet Weight: 12kg/ Cabinet
Lifetime(: :More Than 50000 Hour
Brightness: Brightness More Than 5500 CD
Warranty: Guarantee 3year with Parts
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Certification: UL
Display Function: Video Display
Application: Stage Performance
Scanning Mode: 1/4 Scan
Pixel Density: 10000 dot / m²
Average Power Consumption: 180W / m²
Pixel Pitch: 6.67
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
