P6.25 Outdoor Rental LED Video Display

ENBON P6.25 indoor & outdoor high definition LED video display is slim and portable with die-casting aluminum panel of 500*500mm or 500*1000mm.

This LED screen is bacoming more and more popular in rental market now because:
(1) resolution is high(25600 dots/m2);
(2)high brightness (>5000nits);
(3) waterproof (IP65 standard) ;
(4) It is very easy to calculate the size of LED screen.It can be exactly 4*3m, 6m*4m, 8m*4.5m etc. P.S: 4m*3m is 4:3 ratio and 8m*4.5m is 16:9 ratio,perfect to show video

We produce a lot each month so we have good prices and very stable quality.Please send an inquiry for more information.


Other Advantages:

1) Wide viewing angle by using SMD 3535 LED, it can reach 140 degree horizontally and vertically.

2) Ultra-thin and Super-light: only 7.8KG per cabinet of 500mmW*500mm Hand 12.8 KG per cabinet of 500mm W*1000mm H and depth is only 75mm, can stand on floor independently.

3) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m

4) The appearance is very simple and elegant,looks very high end

5) With specially designed fast lock system, easy to install and dismantle

6) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.

7) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.

8)  .High refresh rate with NOVA control system,no scaning line when photographed.

9)  . Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost

10) 14 bit color,16384 gray scale,showing very clear and vivid video and images.

11)  Good thermal design, excellent heat dissipation even no fan installation

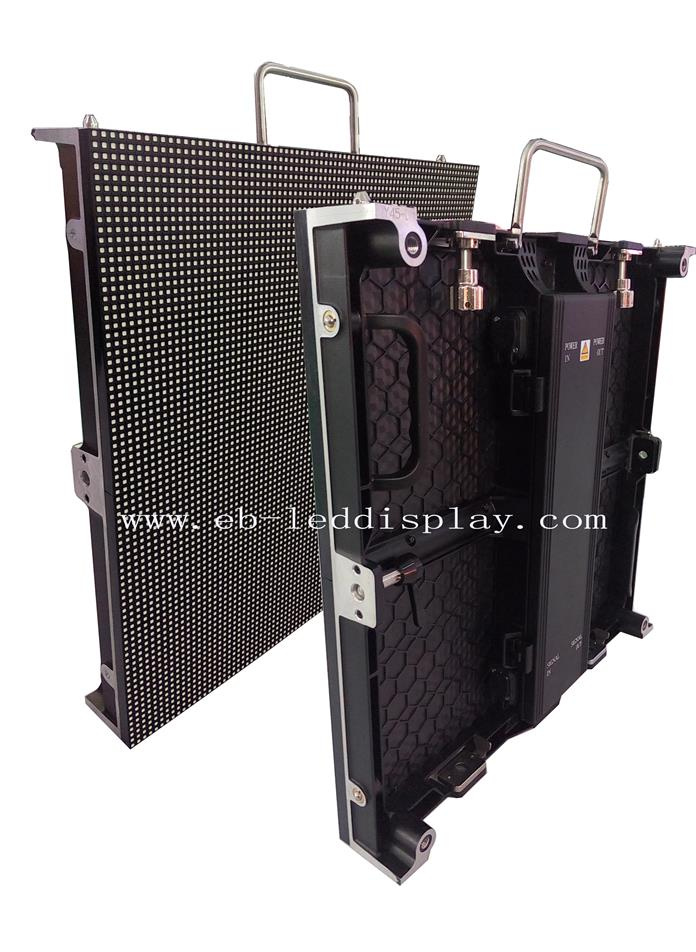

                                       P6.25 outdoor indoor LED panel (500*500mm)

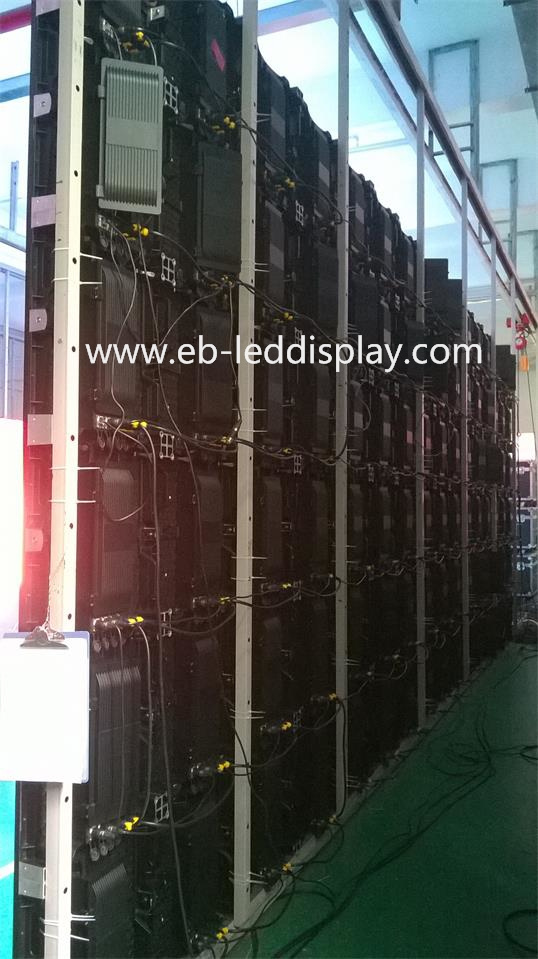

          P6.25 outdoor indoor LED screen aging in our factory

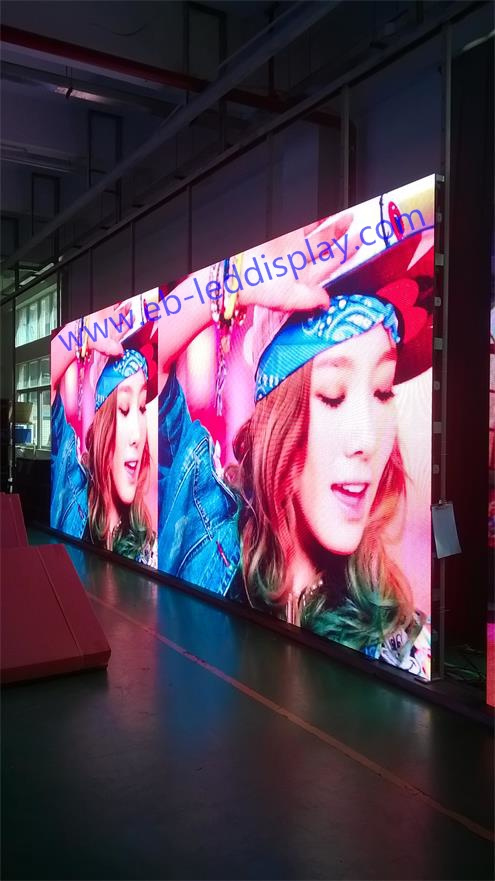

                                                P6.25 outdoor indoor LED screen aging in our factory

Parameters:

Product name	P6.25 die-casting aluminum indoor and outdoor LED video display
Pixel pitch	6.25mm
Pixel density	25600 dots /sqm
Module size(W*H)	250 mm(width)*250 mm(height)
Module pixels(W*H)	40 dots *40 dots
Pixel configuration	1Red 1Green 1Blue
Drive mode	constant current driving 1/10 scan
LED lamp type	SMD3535
Cabinet size(W*H*D)	500mm*500mm
Color scale	65,536 degree
View angle(H/V)	140/140 degree
Brightness (White balance)	about 5000cd/sqm.
Power consumption(one cabinet)	Max:300W / cabinet , Average: 100W / cabinet
Operating Voltage	AC110V±10% or 220V ±10%;   50---60HZ
Net weight	7.5Kg / cabinet
Operating temperature	-30°C----+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
MTBF	5,000 hours
Whole Display Flatness	≤0.5mm Juncture
Frame frequency	25-60 Hz/s
Refresh rate	≥2000Hz /s
Control distance	100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15%  47--63Hz
LED control system	LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating system	Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protections for outdoor display	IP65
Maintenance way	Rear  Access
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
