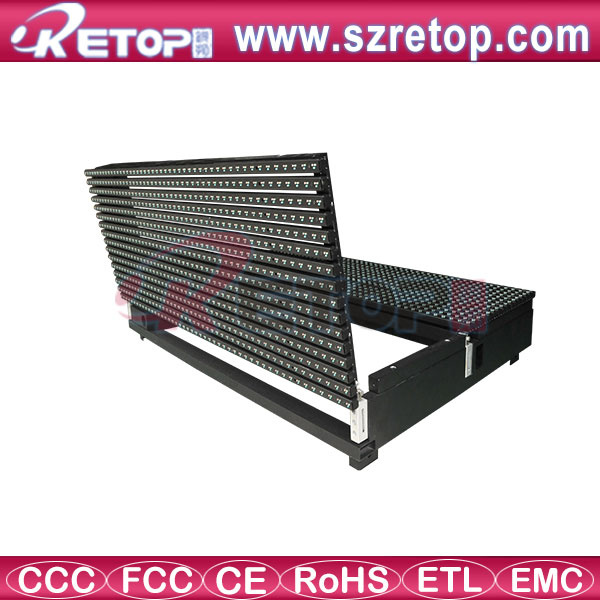

P50 led strip high brightness outdoor display
From large free-form video displays to architectural visual design, Retop LED Strip series are available in different pixel pitches. This smart, lightweight, fl exible and yet rugged strip LED solution is not only to bring out stunningly bright videos on displays of any size, shape or form, but also lighting type effects. It can be used as a screen or creative solution, based on the customers' requests and based on the design of each building. Our customized solution team and our workshop for training your staff, offer architectural LED solutions for each specific screen installation. Retop Strip series can be built up to almost any shape and size display that is ideal for use at outdoor locations with large viewing distances and angles. The Strip series are for 24/7 uses, for day and night time. Retop has designed, produced, installed and maintained numerous LED strip screens all over the world, especially in Los Angeles, USA and Victoria Harbour, Hong Kong.
RETOP STRIP LED DISPLAY APPLICATION
1. Retop LED Strip Displays outshine LA Live, Los Angeles, USA
2.90% of all LED Strip Display installations around Victorial Harbour, Hong Kong were designed, installed and maintained by Retop
Resolution | 50mm |
LAMP | LED Type | DIP |
STRIP | Pixel configuration | Retop | Cree |
4R4G3B | 3R3G2B |
LED driving method | Static |
Pixels | 30 | * | 1 | (W*H) |
Pixel pitch | 50 | mm |
Led strip size | 1500 | mm | * | 19 | mm | * | 23 | mm |
| (W*H*D) |
MODULE | Led strip | 1 | * | 16 | (W*H) |
Pixels | 30 | * | 16 | (W*H) |
Module area | 1.20 | m2 |
Module size | 1500 | mm |
| * | 800 | mm |
| * | 140 | mm |
| (W*H*D) |
Net weight | 38 | kg |
Power | AC220/110 ± 10%, 47~63Hz |
Water proof | IP65(strip) |
Serviceability | Rear service |
DISPLAY | Max. power consumption | R | ≤ | 290 | W/m2 | C |
| ≤ |
| 270 | W/m2 |
Avg. power consumption | ≤ | 102 | W/m2 |
| ≤ |
| 95 | W/m2 |
Max. current (208V 60Hz) | ≤ | 1.47 | A/m2 |
| ≤ |
| 1.37 | A/m2 |
Hor. viewing angle(min 50% brightness) | 140° |
Vert. viewing angle(min 50% brightness) | 70° |
Brightness | ≥6000 cd/m2 |
Pixel density | 400 | /m2 |
Power factor | >0.9 |
Certifications | UL,CE,ETL,ROSH,CCC |
Contrast ratio | 1500:1 |
Operating temperature | -20ºC to +60ºC |
Operating humidity | 20% to 90% |
Lifetime (50% brightness) | 100,000 hours |
Processing | 16 bit |
Colors | 281 trillion |
Refresh rate | ≥ 4200 Hz |
Frame rate | 60 fps |
Brightness level | Manual 100 levels,automatically 16 levels. |
Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.
Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
