Home LED Light Products P50 Indoor Flexible LED Display

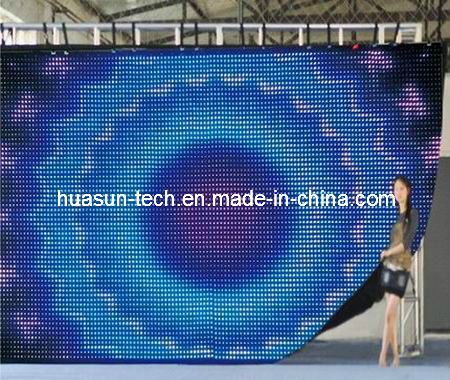

P50 Indoor Flexible LED Display

P50 Indoor Flexible LED Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Square Meter
Pay Type: T/T,Western Union
FLC series Soft LED display are made with DFR material which are fire, water, dust resistance, the features are high brightness, light weight, small volume, reliable quality and smooth image due to the installation of high quality LED module. And also they are absolute soft, the HD video will be showed only after you take them out of case, hang on truss, connect controller and power on, which designed for stage tours, entertainment areal and mobile rental.
Model  NoFLC-3000FLC-2500FLC-1600FLC-1000FLC-700FLC-400FLC-200FLC-200AFLC-100
Pixel  Pitch18.25mm20mm25mm30mm37.5mm50mm75mm75mm100mm
Pixel  ConfigurationRGB  3-in-1  SMD 3R2G2B  DIPRGB  3  in  1  SMD
Resolution3002  pixel  /  m²2500pixel  /  m²1600pixel  /  m²1111  pixel  /  m²711pixel  /  m²400  pixel  /  m²176pixel  /  m²100pixel  /  m²
Brightness(White)3080cd/m²2700cd/m²1730cd/m²1200cd/m²770cd/m²220cd/m²86cd/m²265cd/m²55cd/m²
Optima  visual  distance12m15m18m22m28m37m55m55m75m
Max. Power  Consumption≤ 78  W  /  m²≤ 68  W  /  m²≤ 45W  /  m²≤ 30  W  /  m²≤ 20  W  /  m²≤ 12W  /  m²≤ 5  W  /  m²≤ 20  W  /  m²≤ 3  W  /  m²
Average. Power  Consumption≤ 32W  /  m²≤ 28  W  /  m²≤ 18W  /  m²≤ 12  W  /  m²≤ 8  W  /  m²≤ 5  W  /  m²≤ 2  W  /  m²≤ 8  W  /  m²≤ 1.2  W  /  m²
Weight9.0kg  /m²8.2kg  /m²7.0kg  /m²5.5kg  /m²4.3kg  /m²2.7kg  /m²2.5kg  /m²3.2kg  /m²2.1kg  /m²
Recommendation  size

W=Width
H=Height
W:   1168mm
He:   . 336mm
W:   280mm
H:   2560mm
W:   1600m
H:   2400mm
W:   920mm
H: 2400mm
W:   200mm
H:   400mm
W:   1600mm
H:   2400mm
W:   2400mm
H:   2400mm
W:   2400mm
Ht:   2400mm
W:   3200mm
H:   3200mm

Size  can  be  customized
Brightness  level16  levels
Bit  depth  per  color12  bit
Bit  depth  per  pixel36  bit
Visual  AngleHorizontal:   120;     Vertical:   120
Date  Refresh  Rate≥ 300Hz
Drive  modeConstant  current
Control  modeVGA  synchronous  display
Display  mode1280× 1024
Input  SignalRF, S-VIDEO, RGBHV, YUV, YC  &   COMPOSITION, etc
Power  Supply90~  260VAC  50/60Hz
Face  materialDFR  velvet  drapery
Ingress  ProtectionFront:   IP65;   Rear:   IP54
Ambient  Temperature-20  ~  +50  ° C
Relative  Humidity10%  ~  90%
PackageCarton  (Flight  case  optional)
InstallationHang
Control  system²   Sending  card  801  &   HC-101  Receiving  card    (HC-103  External  Sending  card  is  available)
²   Or  HC-102  Easy  LED  receiving  controller  (No  need  sending  card)
²   Video  processor
Safety  certificateCE    FCC    ROHS
Prod Model: FLC-400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/8 Scan
Display Type: LED Video Display
Application: Stage Performance
IP Rating: IP43
Certification: RoHS
Pixel Pitch: 50mm
Pixel Density: 400 Dots/Sq
System Operating Platform: Win7
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.

The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
