Home LED Light Products P5 Indoor Low Power Consumption Stage LED Display Moule

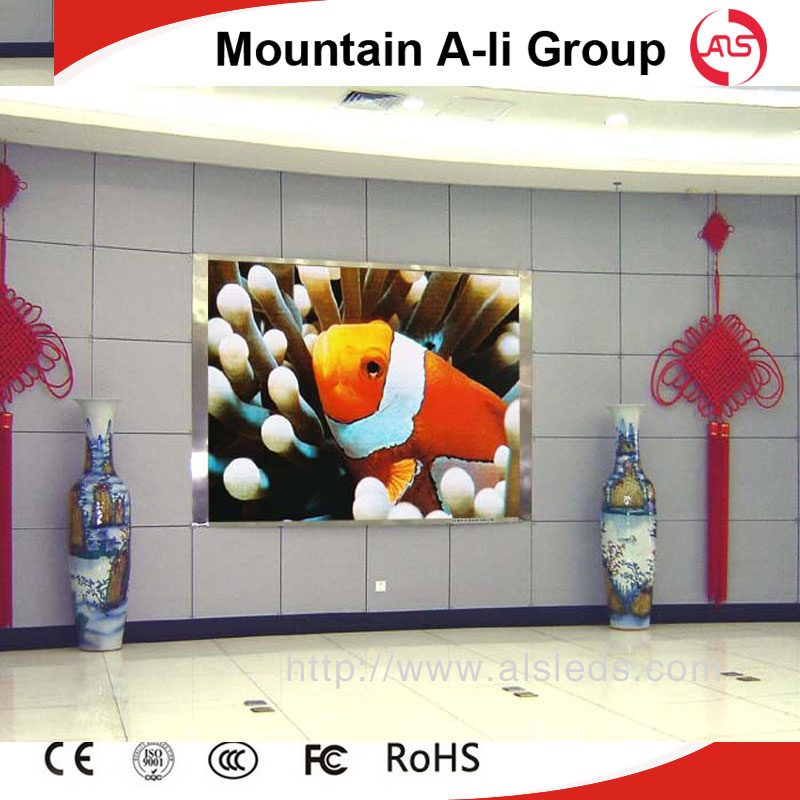

P5 Indoor Low Power Consumption Stage LED Display Moule

P5 Indoor Low Power Consumption Stage LED Display Moule
Price: US $ 25piece
Trade Terms: FOB
Min Order: 1piece
Pay Type: T/T,Western Union
  Product Features and advantages:
  .Light, color can be customized
.Full Magnesium design,cooling well, no fans, no noise, Anti-interference
.Assembly of high precision, the gap can be controlled less than 0.2mm, cabinet installation just 20 seconds
 .The cabinet size can be user-friendly designed according to the module size
 .Fast disassembly module just 10 seconds, convenient replacement and  maintenance
 .Durable cabinet structure
Remarks
1.Payment term:
    30% T/T in advance and balance before delivery.

2.Delivery time:
    Within 15 working days after 30% advance payment.

3.Free training:
    You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.

4.Installation:
    We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer’s salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.

5.Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
 Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Shipping freight are quoted under your requests
3. Shipping port: Shenzhen, Mainland China
4. Warranty time: 2 years




Parameter
The specifications of modules

ItemsParameter
Product ModelP5 ALS-P5-16S
Module size320mm*160mm
Pixel pitch5mm
Pixel density40000dots/m2
Pixel configuration1R1G1B
Module resolution64dots(W)*32dots
Module maximum power consumption25W
Module Thickness26.6CM


Module Weight0.21kg
Driving methodConstant Current Driving
Scanning method1/8scan
InterfaceHUB75-A
Brightness≥1600cd/m2
The specifications of cabinets

Cabinet size640mm*640mm
Module quantity16pcs
Power supply5V/40A *2pcs
Cabinet resolution128*128dots
Optimal viewing distance5M~30M
Optimal viewing angle160°(W) 120°(H)
RH Working temperature(Work :-20°C~+50°C)
System operating humility10%-95%
The specifications of power supplier

Operating VoltageAC220V±10%
Average power consumption≤1180W/m2
Maximum power consumption≤500W/m2
Electric current≤20mA(single LED)
The specifications of control card
Control PanelsPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters

Driving deviceConstant Current Driving
Refresh rate≥400HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768


Prod Model: P5 indoor LED Display
Module Size: 320mm*160mm
Pixel Resolution: 32dots(W)*32dots(H)
Module Thickness: 29.33mm(Containing Mag
Max Power Consumpion: 25W
Module Weight: 0.21kg
Brightness Of White Balance: 1600CD/M2
Best Viewing Distance: 5m~30m
Control Mode: Synchronization with PC
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 5mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 40,000 dots / m²
Scanning Mode: 1/8 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Advertising
Certification: FCC
IP Rating: IP65
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
