Home LED Light Products P5 Indoor LED Display Screen for TV Station (320*160mm)

P5 Indoor LED Display Screen for TV Station (320*160mm)

P5 Indoor LED Display Screen for TV Station (320*160mm)
Price: US $ 550-688/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

P5 Indoor LED Display Screen for TV Station(320*160mm):

1. Application



Advertising LED display , shopping mall LED display for logo showing , bank &stock exchange LED display for rates showing ,train & bus station , airport ,school message board, telecommunication LED Screen system for information showing and instruction , Stage performance and so on .



2. Feature



Excellent visual effect, clear and exquisite, Good flatnessgood viewing angle, vivid mixed colors, easy to assembly, install and transport with simple packing and convenient use, excellent heat-sinking, high stability ,no scrapped lamp .





3. Our advantage



1. Rich experience: established in 2005; familiar with technical and material about LED display and LED light.



2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.



3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.



4. Good quality: stable performance .



5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.



6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime, and we will inspect our products which have been sold periodically.



Hight quality with favorable price and professional severice, you can't miss it !!!!



4. Specification



Pixel pitch


5mm


Module size


160mm*160mm


Module density


40000dots/sqm


Module resolution


32*32


Pixel configuration


SMD1R1G1B


Red wavelength


Epistar taiwan 625±2nm


Green wavelength


Epistar taiwan 525±2nm


Blue wavelength


Epistar taiwan 470±2nm


Best viewing distance


From 5m to 150m


Horizontal viewing angle


110°


Vertical viewing angle


90°


Maximum power consumption


Below 800W


Brightness


7500cd/sqm


Gray scale


More than 4096


Control method


Synchronization


Driving method


4Sconstant current


Frame frequency


60Hz


Refresh frequency


More than 300 Hz


Working voltage


AC220V±5%


IP grade


IP43


Working temperature


-20°C±50°C


MTBF


More than 5,000 hours


Life span


More than 100,000hours


Cabinet style


Waterproof cabinet


Cabinet size


W1024*H1024*D180mm


Cabinet weight


 35kgs

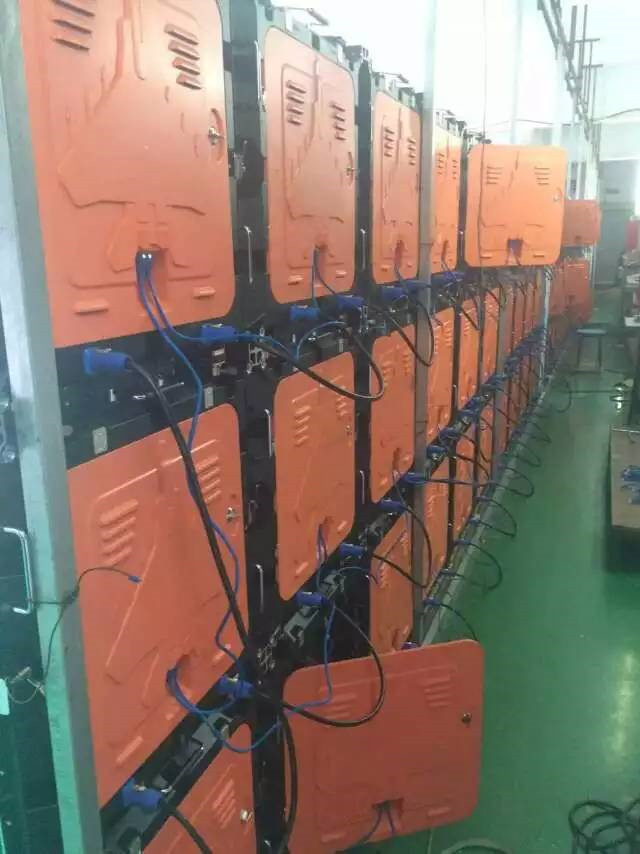

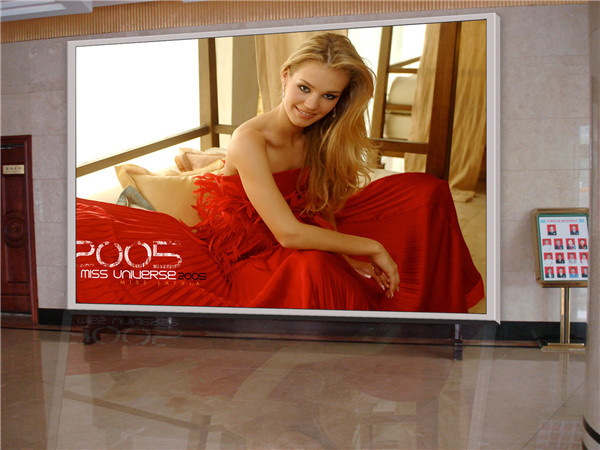

5. Project Pictures


6. Why choosed us

1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system  , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system


7. Product list

1.P1.9/P2.5/P3/P4/P5/P6/P7.62/P10...indoor full color led display;
2.P5/P6/P7/P8/P10/P12/P16/P20/P25...outdoor full color led screen;
3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.


8. Service

Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer.
No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture,deliver to installation and after-service.
We can manufacture strictly according to your drawings and request.
We can design ourself to supply you a most suitable proposal to you.


9. Quality:

Raw material reserves: Steel bought from major steel mill
Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC Continuous mode of production lines etc

Strictly quality control: Manufacture strictly according to drawings, Inspection every link,Pre assembled before delivery.


10. Design& Delivery & Packing

sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.
With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.
Packed in container by sea or by train, with stable package for no damage during transpotation.


11. Certificate:

We have ISO9001:2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.

Prod Model: P5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: P5 HD Indoor LED Display for Rental Stage
Module Size: 160mm*160mm
IC: Mbi5020
LED Chip: Epistar
Brightness: 1900CD/Sq.M
Cabinet Size: 640mm*640mm
Cabinet Material: Iron/Aluminum/Rental Cabinet
Weight: 35kg/Sq.M
Function: Video/Graphic/Text
IP Grade: IP43 Front, IP30 Back
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 5mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 40,000 dots / m²
Scanning Mode: 1/8 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: CCC
Being an over 12 years' LED display supplier, our company has developed an outstanding reputation for manufacturing and distributing all types of premium indoor and outdoor LED displays for commercial use including outdoor LED displays, LED billboards, mobile LED trailers and more at manufacture direct pricing. We are a leader in advanced LED technology with proprietary signage and software solutions.
