Home LED Light Products P5 Indoor Full Color LED Display for Advertising/Live Show

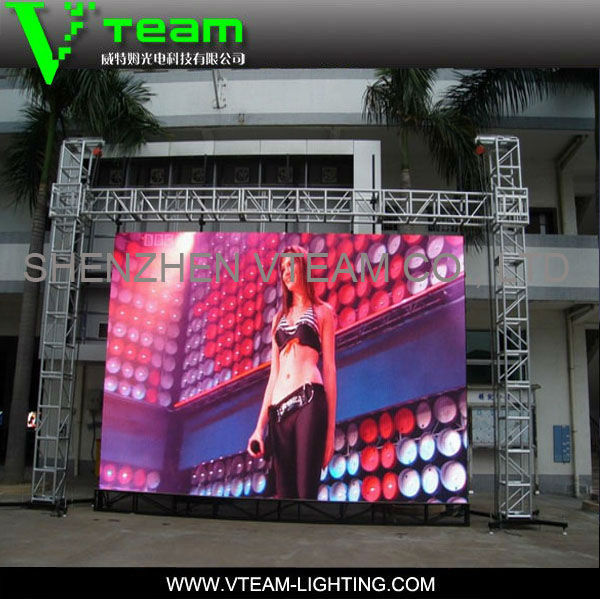

P5 Indoor Full Color LED Display for Advertising/Live Show

P5 Indoor Full Color LED Display for Advertising/Live Show
Price: US $ 485-1335piece
Trade Terms: FOB
Min Order: 6piece
Pay Type: T/T,Western Union
Specifications
1. No noise, quiet when operation.
2. Black LED with high contrast
3. Die-casting aluminum, good heat dissipation
4. CE


Fn Overview

Fn is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fn is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Die-casting aluminum, secure and nice in constitution.

Features

1) No fans, mute when operation.

2) Dustproof, IP43.

3) High refresh rate and high gray depth.

4) Completely black LED with high contrast.

5) Standard cabinet size is 500mm x 500mm.

6) Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the range.

7) Exactly connected and easy to install and dismount.
Item Fn3.125 Fn3.57 Fn3.9 Fn4.64 Fn5.2 Fn6.25
Pixel Pitch 3.125mm 3.57mm 3.9mm 4.64mm 5.2mm 6.25mm
LED type SMD1514 SMD2121 SMD2121 SMD2724 SMD3528 SMD3528
Pixel matrix per panel 160*160 140*140 128*128 112*112 96*96 80*80
Pixel density/sqm 102400 78400 65536 50176 36884 25600
Viewing distance ≥4m ≥4m ≥4m ≥5m ≥6m ≥7m
Brightness ≥800 Nit
Weight 7kg/panel
Max power consumption 250W/panel(white balance)
Ave power consumption 125W/panel( normal display)
Panel Size 500mm x 500mm x 72mm
LED Configuration RGB 3in 1,Black
Viewing angle Hor: 140 degree   Vert: 120 degree
Gray Scale ≥14BIT
Refresh rate ≥1920Hz
Color temperature 8000K ± 500(Optional)
Protection Level IP43(Optional IP65)
Input voltage AC 110V/220V ±10%
Working environment temperature -10~50degree, Humidity 10-90%RH
Lifetime > 50,000 hours
Certification CE
Prod Model: Fn
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: >800 Nit
Weight: 7kg/Panel
Max. Power Consumption: 250W/Panel
Ave. Power Consumption: 125 W/Panel
Cabinet Size: 500X500X72mm
Gray Scale: >14bit
Refresh Rate: >1920 Hz
Color Temperature: 8000k ± 500(Could Be Customized)
Input Voltage: AC 110V/220V±10%
Working Environment: Temperature -10~50degree, Humidity 10-90%Rh
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/16 Scan
Application: Live Shows,Concerts
IP Rating: IP43
Certification: CE
System Operating Platform: WIN XP
Pixel Configuration: RGB 3in1,Black
Pixel Pitch: 3.125/3.57/3.9/4.64/5.2/6.25mm
Pixel Density: 102400/78400/65536/50176/36884/25600dots/Sqm
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.

VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.

As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!

VTEAM Mission: To create value and profit for customers!

VTEAM Vision: Being creative concept pioneer!
