Features:
1. Reasonable cabinet structure design and install fast for fixed project.
2. The cabinet is made with locks on the left and right sides and location hole/pole in the upper and lower sides, which make connections between cabinets to be very fast.
3. Independent rear cover and lock design that isn't only waterproof and dustproof but also make Its debugging and maintenance to be fast.
4. Size is 640x640mm and pixel density :40000/and brightness:1800NIT that are available in a variety of indoor occasion.
5. Size is 640x640mm and pixel density :40000/and brightness:1800NIT that are available in a variety of indoor occasion.
6. Our cabinet is used the high precision processing aluminum bar section. It not only ensures the cabinet to be light and beautiful but also ensure higher processing precision. That greatly reduces the gap of LED screen connection .It makes sure the display image without shadows, dark and bright lines and ensure the clear and smooth display picture and still ensure the picture of flatness and smooth even in 140 degree angle.
Applications:

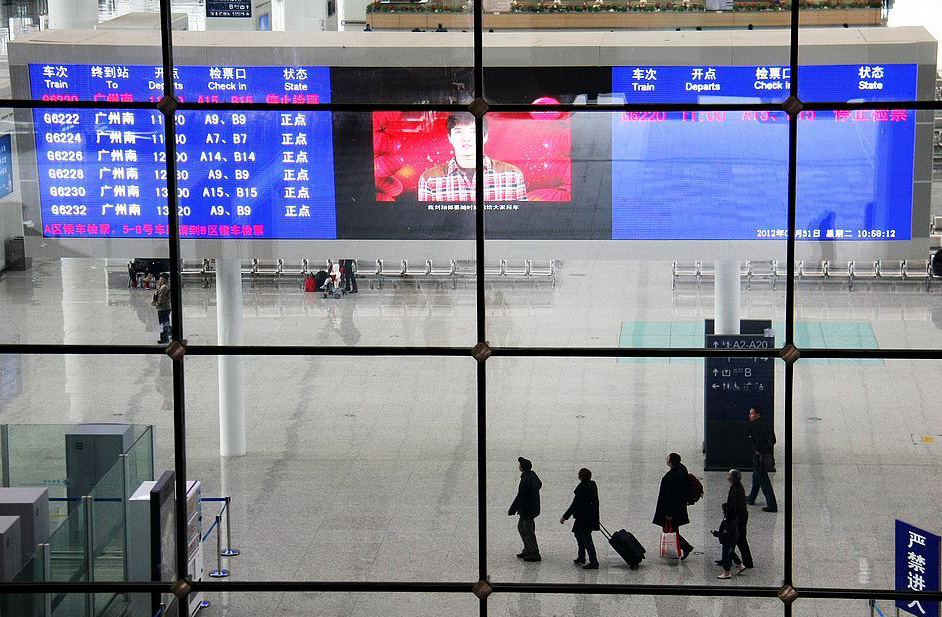

It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
|
Model |
P4 |
P5 |
|
Pixel pitch |
4mm |
5mm |
|
Pixel configuration |
1R1G1B |
1R1G1B |
|
LED type |
SMD2020 |
SMD3528 |
|
Module size |
256x128mm |
160x160mm |
|
Module resolution |
64x32 |
32x32 |
|
Cabinet resolution |
192x168 |
128x128 |
|
Cabinet size |
768x512x145mm |
640x640x135mm |
|
Density |
62500dots/m2 |
40000dots/m2 |
|
Brightness |
≥1200 NIT |
≥1400 NIT |
|
Scan method |
1/16 |
1/8 |
|
Best view distance |
≥4m |
≥5m |
|
Max. power consumption |
900W/panel |
800W/panel |
|
Ave. power consumption |
400W/panel |
350W/panel |
|
Cabinet Weight |
<35Kg |
|
Grey scale |
65536 step |
|
Color |
281 billion |
|
Refresh rate |
≥480Hz |
>720Hz |
|
Best view |
Vertical: 120°, Horizontal: 120° |
|
Color temp |
6500-9500K |
|
Frame frequency |
≥60Hz |
|
Out of control pixel rate |
<1/10000 |
|
MTBF |
>5000 hours |
|
Lifespan |
50000 hours |
|
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
Working voltage |
AC 110/220v 50-60Hz |
|
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
|
Operation temperature |
-20 to +40 |
|
Working humidity |
10% to 80% |
|
Protection level |
Indoor use |
