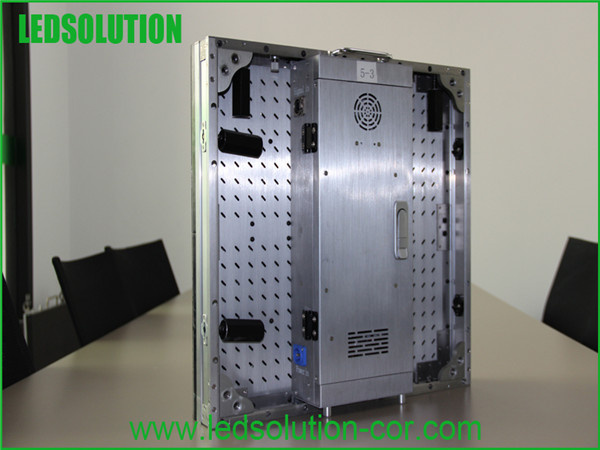

P5 High Resolution Indoor Super Slim SMD LED Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
Specification
* CE, RoHS, ISO, UL, ETL certificates;
* 3-years warranty;
* Light weight;
* Ultra thin;
* Fast and safe assembly
General
Slim LED display is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.
Features
* Aluminum slim rental design;
* Light weight only 8kg/panel;
* Option pitch 4mm,5mm,6mm
* Indoor Application;
* Certificated Meanwell power supply;
* Neutrik connector.
Model Parameter
Parameter |
Unit |
Value |
Pitch |
mm |
5 |
Brightness |
nits |
1,200 |
Color temperature |
deg. K |
6,500 |
Viewing angle - Horizontal (50% brightness) |
deg. |
140(-70 ~ +70) |
Viewing angle - Vertical (50% brightness) |
deg. |
140(-70 ~ +70) |
Panel weight |
kg |
8 |
Panel width |
mm |
480 |
Panel height |
mm |
480 |
Panel depth |
mm |
100 |
Panel area |
sq. m. |
0.2304 |
LED Chip |
|
Epistar |
LED |
|
Black body SMD |
Power supply |
|
Certificated Meanwell |
Connector |
|
Neutrik |
Panel material |
|
Epoxy paint coated Aluminum |
Panel Mode |
|
Slim rental |
Operating temperature range |
deg. C |
-30 to +60 |
Humidity operating |
RH |
10% ~ 90% |
Pixel type and configuration |
R/G/B |
3in1 SMD |
Resolution per panel |
|
96x96 |
Dot per panel |
|
9,216 |
Dot per sq. meter |
|
40,000 |
LED per sq. meter |
|
40,000 |
Recommended minimum viewing distance |
m |
3.8 |
Recommended best viewing distance |
m |
5~15 |
Colors |
|
281 Trillion |
Grey scale (linear) |
Levels |
65,536 levels per color |
Brightness control |
Levels |
100 |
Contrast ratio |
|
1,000:1 |
Processing depth |
bit |
16 |
Video frame rate |
Hertz |
60 |
Display refresh rate |
Hertz |
180~3,000 |
Input voltage (nominal) |
VAC |
110 to 240 |
Input power frequency |
Hertz |
50 to 60 |
Input power (max) |
Watts / panel. |
275 |
Input power (typical) |
Watts / panel. |
110 |
Lifetime (50% brightness) |
Hours |
≥100,000 |
Red wavelength (dominant) |
nm |
620~625 |
Green wavelength (dominant) |
nm |
520~525 |
Blue wavelength (dominant) |
nm |
470~475 |
Data interconnection |
|
UTP Cat 5 |
Mounting system |
|
Hanging / Fixed |
| Prod Model: |
LS-SI-P5-0.48mx0.48m-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Certification: |
CE |
| Pixel Density: |
40,000 dots / m² |
| Application: |
Stage Performance |
| IP Rating: |
IP40 |
| Pixel Configuration: |
3in1 SMD |
| Pixel Pitch: |
5 |
| System Operating Platform: |
Windows7, Vista, XP, 2000, 98 |
