Product Description

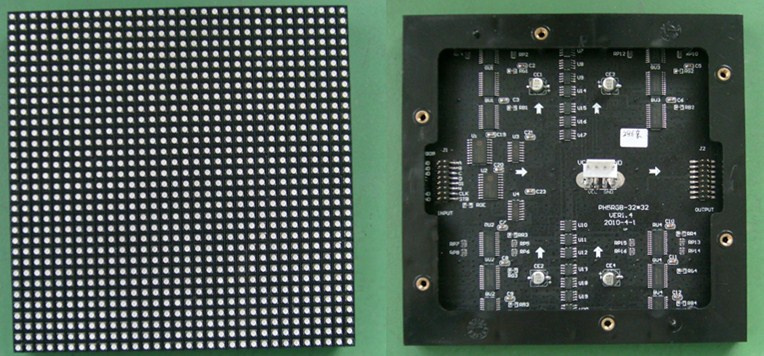

P5 Indoor Video Meeting full color LED Display sign
Main feature:
Price lower than most factory
Ultra slim and light cabinet
Low heat
Easy fast lock and installation
Seemless assemble
Utra-high refresh rate, support the camera recorder, to ensure a clear picture quality
Suit to all indoor place: TV broadcasting room, meeting room, stage, shop, bar, airport etc.
Parameter
| The specifications of modules |
|
|
| Items | Parameter |
|
| Product Model | ALS-P5--16S |
|
| Module size | 320mm*160mm |
|
| Pixel pitch | 5mm |
|
| Pixel density | 40000dots/m2 |
|
| Package mode | SMD3528 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 64dots(W)*32dots(H) |
|
| Module maximum power consumption | 25W |
|
| Module Thickness | 14.27mm (without magnet ) |
|
| Module Weight | 0.21kg |
|
| Driving type | Constant Drive |
|
| Scanning method | 1/16scan |
|
| Interface | HUB75-A |
|
| Brightness | ≥1600cd/m2 |
|
| The specifications of cabinets |
|
|
| Dimension | 480mm*480mm |
|
| Thermal discharge | Fan 2pcs |
|
| Quantity of module | 8 |
|
| Power supply | 5V/60A*1PCS |
|
| Cabinet resolution | 64*64dots |
|
| Optimal viewing distance | 5M~30M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-30°C~+60°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | 110V-240V |
|
| Average power consumption | 1180W/m2 |
|
| Maximum power consumption | ≤500W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh frequency | ≥400HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768 |
|
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
