Die-cast Aluminum LED Display with die-casting panel size of 500x500mm and 500x1000mm, high quality,good service and reason price,with CE,Rohs,FCC Certificates
1. SMD block lamp body ensure the high contrast and good uniformity

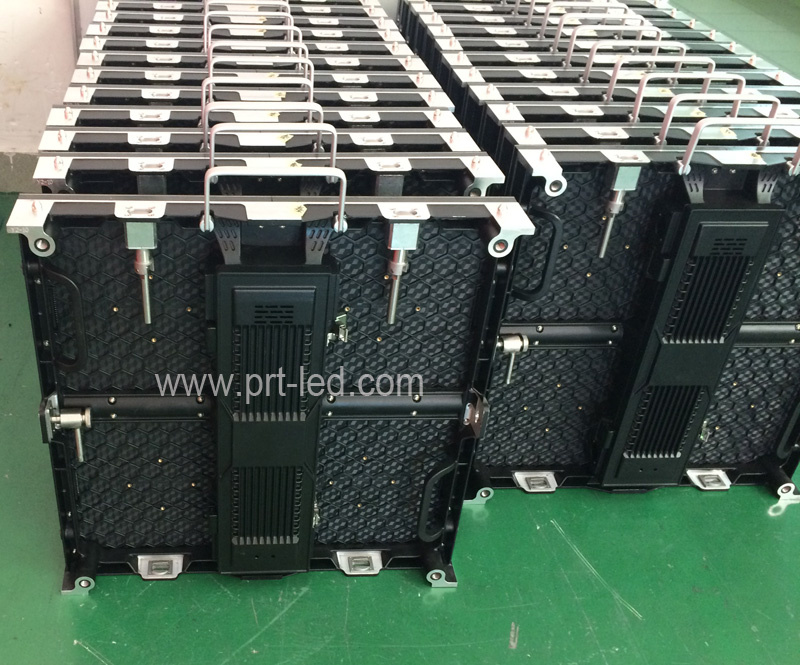

2. Made with Die-casting Aluminum material cabients,strong structure and light weight
3. Rental design with fast locks and aviation plugs,easy and quick to install and dismantle
4. Unique muting and fan free design ,good environment protection
5. Exquisite and tastful appearance due to structural wire layout
6. Back installation for drivers,benefical to maintenance
7. Widely used for banquet, conference,shows,exhibition etc.
| P5.68 Indoor full Color LED Screen Specification |
| Pixel pitch | 5.68mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 250mm x 250mm |
| Resolution of module | 44x44 |
| Size of cabinet | 500mm x 500mm x 75mm |
| Resolution of cabinet | 88x88 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 7.8KGS |
| Brightness | >6000cd/m² |
| Density | 43264dots/m² |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-60M |
| Maximum power consumption | 1200W/² |
| Average power consumption | 640W/m² |
| Driving method | 1/11 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP43 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
