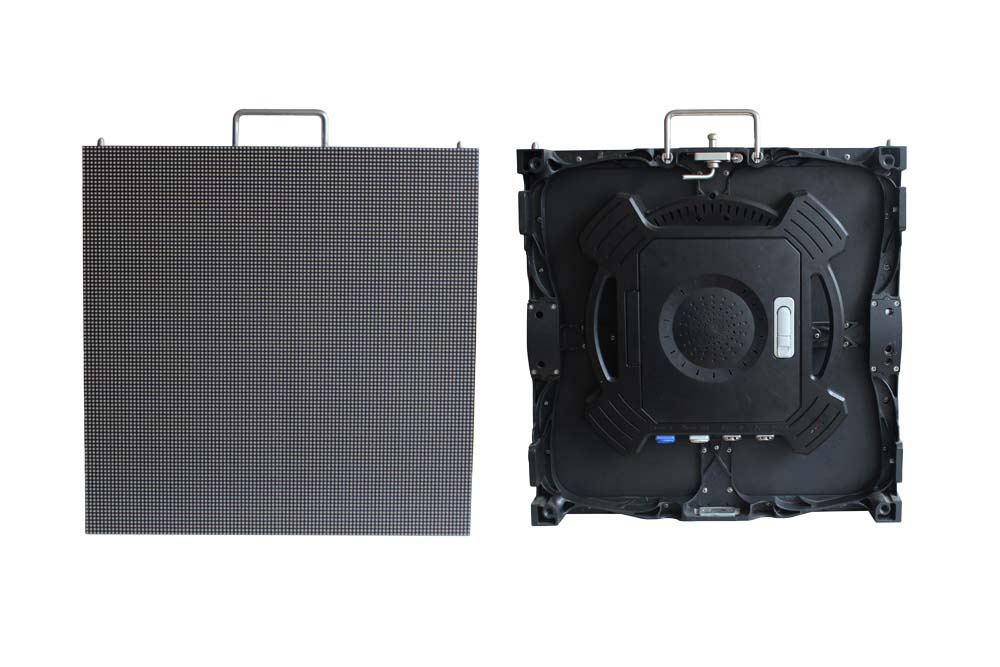

Features:
1. The cabinet thickness is 75mm, the cabinet weight is 9.5kgds/panel.
2. Pixel pitch available in 4mm, 4.92mm and 6.4mm.
3. Different color options of back cover according to clients requirements.
4.16 bit driver IC with rich and delicate colors, refresh rate can reach 3000Hz.
5. Rotatable hanging lock and manual safety button avoiding panels dropping off.
6. Special design of back cover make sure different ways of maintenance.
7. Adopt Die-cast aluminum housing, ensure the flatness of the screen and seamless among panels.
8. Adopt the DC cooling fans, less noise for indoor use.
9. Support hanging and stacking installation, suitable for both fixed and rental applications.
| Model | P4 |
| Pixel pitch | 4mm |
| Pixel configuration | 1R1G1B |
| LED type | SMD2020 |
| Module size | 256x256mm |
| Module resolution | 64x64 |
| Cabinet resolution | 128x128 |
| Cabinet size | 512x512mm |
| Density | 62500dots/m2 |
| Brightness | ≥1200 NIT |
| Scan method | 1/16 |
| Best view distance | ≥4m |
| Max. power consumption | 300W/panel |
| Ave. power consumption | 180W/panel |
| Cabinet Weight | 9.5Kg |
| Grey scale | 16 bit\65536 step |
| Color | 281 billion |
| Refresh rate | ≥ 960Hz |
| Best view | Vertical: 140°, Horizontal: 140° |
| Color temp | 7500K |
| Frame frequency | ≥60Hz |
| Out of control pixel rate | <1/10000 |
| MTBF | >5000 hours |
| Lifespan | 50000 hours |
| Signal input source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
| Working voltage | AC 110/220v 50-60Hz |
| Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
| Operation temperature | -20 to +40 |
| Working humidity | 10% to 80% |
| Protection level | Indoor |
Shenzhen HTSLED Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.
HTSLED is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
