Home LED Light Products P4 Indoor LED Display, High Definition, Full Color (LS-I-P4)

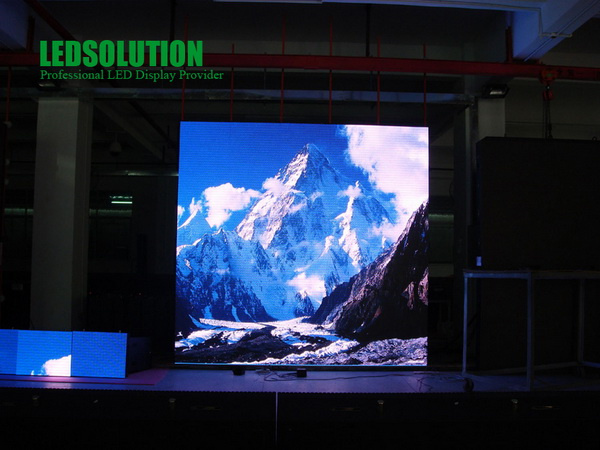

P4 Indoor LED Display, High Definition, Full Color (LS-I-P4)

P4 Indoor LED Display, High Definition, Full Color (LS-I-P4)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T
Features of the indoor LED Display:
*3 IN 1 SMD LEDs
*High resolution images at short viewing distance
*Easily configured for various size and aspect ratios
*Wide viewing angle up to 140 degrees
*Brightness from 1000 nits onwards
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
ParameterUnitValue
Pitchmm4
Brightnessnits1, 500
Color temperaturedeg. K6, 500
Viewing angle Horizontal (50% brightness)deg.140(-70 ~ +70)
Viewing angle Vertical (50% brightness)deg.140(-70 ~ +70)
Panel weightkg18
Panel widthmm512
Panel heightmm512
Panel depthmm150
Panel areasq. m.0.262
Panel material
Epoxy paint coated Cold rolled steel
Operating temperature rangedeg. C-30 to +60
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B3in1 SMD
Resolution per panel
128x128
Dot per panel
16, 384
Dot per sq. meter
62, 500
LED per sq. meter
62, 500
Recommended minimum viewing distancem4
Recommended best viewing distancem4~16
Colors
16 millions
Grey scale (linear)Levels256 levels per color
Brightness controlLevels100
Contrast ratio
1, 000: 1
Processing depthbit14
Video frame rateHertz60
Display refresh rateHertz600
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts / sq. m.1, 200
Input power (typical)Watts / sq. m.480
Lifetime (50% brightness)Hours≥ 100, 000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm520~525
Blue wavelength (dominant)nm470~475
Panel input format
DVI
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Fixed with4pcs M10 bolts

Prod Model: LS-I-P4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 1, 500nits
Color Temperature: 6, 500deg. K
Panel Weight: 18kg
Panel Width: 512mm
Panel Height: 512mm
Panel Material: Epoxy Paint Coated Cold Rolled Steel
Resolution Per Panel: 128X128
DOT Per Panel: 16, 384
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/4 Scan
Certification: ETL
Pixel Pitch: 4mm
Application: Shopping Guide
IP Rating: IP43
System Operating Platform: WIN2000
Pixel Configuration: 3in1 SMD
Pixel Density: 62, 500dots/M&Suq2
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
