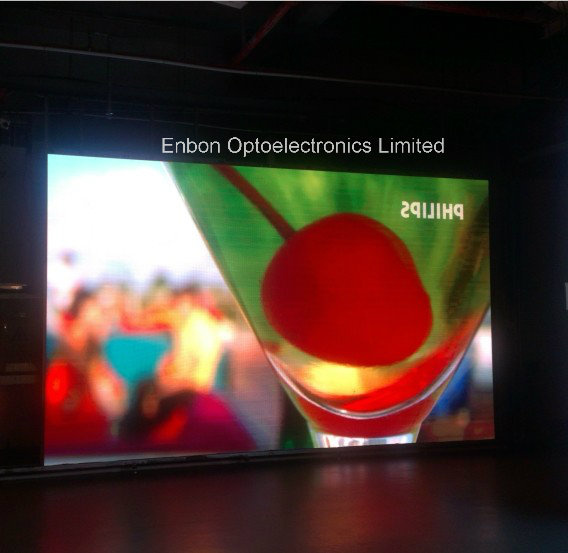

P4 HD indoor LED screen display for hotel, conference to improve their competitiveness. P4 LED screen is our mature product, both quality and price are very good as we produce a lot. Also we are pushing the sales of this item. Welcome to enquire!
Some advantages and features bellow.
1. High resolution: 62,500pixels/m2, can show extremely high quality video, images and texts
2. Cabinet size: 1024*1024mm with 2 receiving cards inside to improve the refresh rate so that it won't have scaning line when take pictures or video
3. Large viewing angle, Up to 140° (Horizontal & Vertical) by using our specially designed mask.
4. High reliability, fully produced by auto-machine, SMD LED is with high uniformity, stability & reliability, that guarantees the perfect performance of the screen.
5. Low Power Consumption, can save energy extremely, and advocate environment-protection.
6. Has fast heating spread, to protect screen effectively and increase the use life largely.
7. We can design the cabinet as slim body & light weight, Easy maintenance, Long use life.
8. This P4 LED display screen can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.
9. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.
10. Applications indoor, It can be used in advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
| Model | P4 SMD3528 outdoor LED display for permanent installation |
| Pixel pitch | 4mm |
| Pixel density | 62,500 dots /sqm |
| Module size(W*H) | 256 mm(width)*128 mm(height) |
| Module pixels(W*H) | 64 dots *32 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/16 scan |
| LED lamp type | SMD3528 |
| Cabinet size(W*H*D) | 1024mm*1024mm, it can be customized |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 1200cd / sqm. |
| Power consumption(one cabinet) | Max:1000W/sqm. Average:300W/sqm. |
| Operating Voltage | 90-264 VAC; 47---63HZ |
| Net weight | 40Kg/ sqm (iron cabinet), 30Kg/ sqm (Aluminum cabinet) |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP30 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
