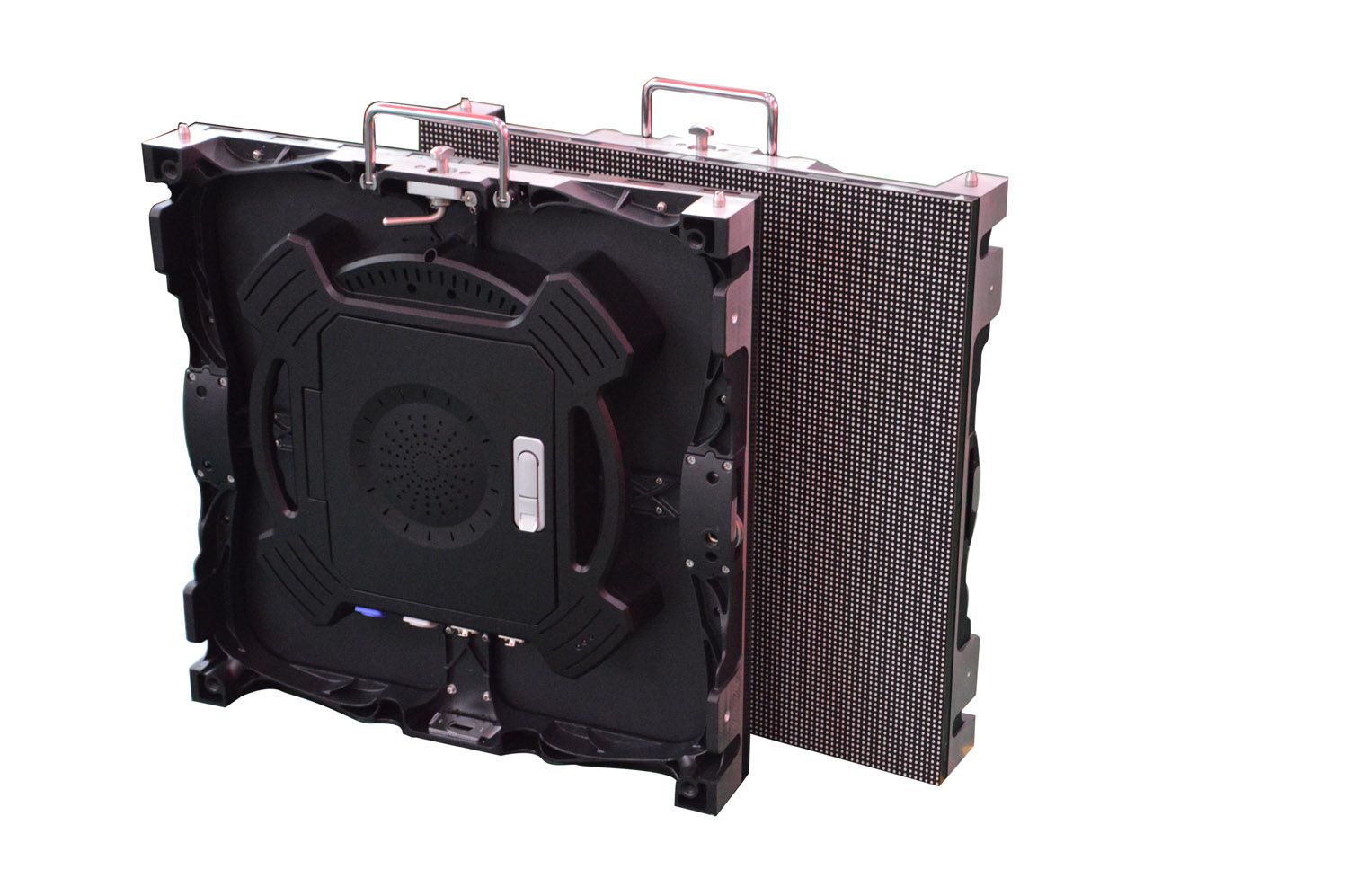

Features:
1. The cabinet thickness is 75mm, the cabinet weight is 9.5kgds/tile.
2. Pixel pitch available in 4mm, 4.92mm, 6.4mm
3. Different color options of back cover according to clients requirements.
4.16 bit driver IC with rich and delicate colors, refresh rate at 3000Hz.
5. Rotatable hanging lock and manual safety button avoid panels dropping off.
6. Special design of back cover make sure different ways of maintenance.
7. Adopt Die-casting aluminum housing, ensure the flatness of the screen and seamless among panels.
8. Neutrik connectors are adopted, fast assembly, durable.
9. Adopt the DC cooling fans, less noise for indoor use.
10. Support hanging and stacking installation, suitable for both fixed and rental applications.
Photos
LED System Diagram
|
Model |
P4.92 |
|
Pixel pitch |
4.92mm |
|
Pixel configuration |
1R1G1B |
|
LED type |
SMD3528 black |
|
Module size |
256x256mm |
|
Module resolution |
52x52 |
|
Cabinet resolution |
104x104 |
|
Cabinet size |
512x512mm |
|
Density |
41260dots/m2 |
|
Brightness |
≥1400 NIT |
|
Scan method |
1/13 |
|
Best view distance |
≥5m |
|
Max. power consumption |
300W/panel |
|
Ave. power consumption |
180W/panel |
|
Cabinet Weight |
9.5Kg |
|
Grey scale |
16 bit\65536 step |
|
Color |
281 billion |
|
Refresh rate |
960~3000 Hz |
|
Best view |
Vertical: 120°, Horizontal: 120° |
|
Color temp |
7500K |
|
Frame frequency |
≥60Hz |
|
Out of control pixel rate |
<1/10000 |
|
MTBF |
>5000 hours |
|
Lifespan |
50000 hours |
|
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
Working voltage |
AC 110/220v 50-60Hz |
|
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
|
Operation temperature |
-20 to +40 |
|
Working humidity |
10% to 80% |
|
Protection level |
Indoor |
