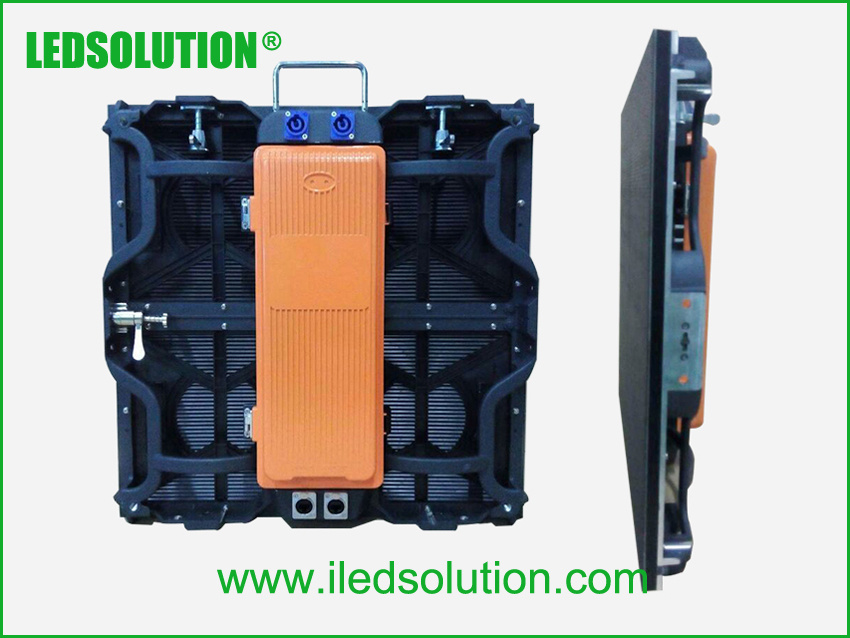

P4.81 Outdoor Full Color Die-Casting LED Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
Die-cast Aluminum LED Display is a new series in LEDSOLUTION. It is designed
Specially for rental application. Easy assembly, easy dis-assembly. No need for any
Tools.
Easy assembly Disassembly by hands without tools
Super smart flatness
Seamless tiled display
Sharp Brightness for outdoor use
Up to 1, 073.7 million color
Long Durability and High Reliability
Low Maintenance Cost
Energy Efficient
Superb Picture Quality
| Parameter | Unit | Value |
| Pitch | mm | 4.81 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 6 |
| Panel width | mm | 500 |
| Panel height | mm | 500 |
| Panel depth | mm | 78 |
| Panel area | sq. m. | 0.25 |
| Panel material |
| Epoxy paint coated aluminum |
| Panel Mode |
| Die-cast rental |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | Outdoor 3in1 SMD |
| Resolution per panel |
| 104x104 |
| Dot per panel |
| 10,816 |
| Dot per sq. meter |
| 43,264 |
| LED per sq. meter |
| 43,264 |
| Recommended minimum viewing distance | m | 4 |
| Recommended best viewing distance | m | 5~100 |
| Colors |
| 281 trillion |
| Grey scale (linear) | Levels | 65,535 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel. | 300 |
| Input power (typical) | Watts / panel. | 120 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging / Fixed |
| Prod Model: |
LS-DO-P4.81-0.5mx0.5m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
500X500mm |
| Resolution Per Panel: |
104X104 |
| Panel Material: |
Epoxy Paint Coated Aluminum |
| Panel Mode: |
Die-Cast Rental |
| Mounting System: |
Hanging / Fixed |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Certification: |
ETL |
| Pixel Pitch: |
4.81mm |
| Pixel Configuration: |
3in1 SMD |
| Average Power Consumption: |
120W/M2 |
| Pixel Density: |
43,264DOT/M2 |
