Home LED Light Products P3 P4 P5 P6 P7.62 P8 P10 P12.5 P16 P20 Indoor/Outdoor LED Display

P3 P4 P5 P6 P7.62 P8 P10 P12.5 P16 P20 Indoor/Outdoor LED Display

P3 P4 P5 P6 P7.62 P8 P10 P12.5 P16 P20 Indoor/Outdoor LED Display
Price: US $ 500-700/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: T/T,D/P,Paypal,Money Gram,Western Union
Product Name:P10 Outdoor Full Color Video LED Display Billboard for Advertising:

Pixel pitch


10mm


Module size


160*160mm


Module density


10,000dots/sqm


Module resolution


16*16


Pixel configuration


1R1G1B


Red wavelength


Epistar taiwan 625±2nm


Green wavelength


Epistar taiwan 525±2nm


Blue wavelength


Epistar taiwan 470±2nm


Best viewing distance


From 10 to 150


Horizontal viewing angle


110°


Vertical viewing angle


90°


Maximum power consumption


Below 800W


Brightness


7500cd/sqm


Gray scale


More than 4096


Control method


Synchronization


Driving method


4Sconstant current


Frame frequency


60Hz


Refresh frequency


More than 300 Hz


Working voltage


AC220V±5%


IP grade


IP65


Working temperature


-20°C±50°C


MTBF


More than 5,000 hours


Life span


More than 100,000hours


Cabinet style


Waterproof cabinet


Cabinet size


W640*H640*D120mm


Cabinet weight


Less than 28kgs

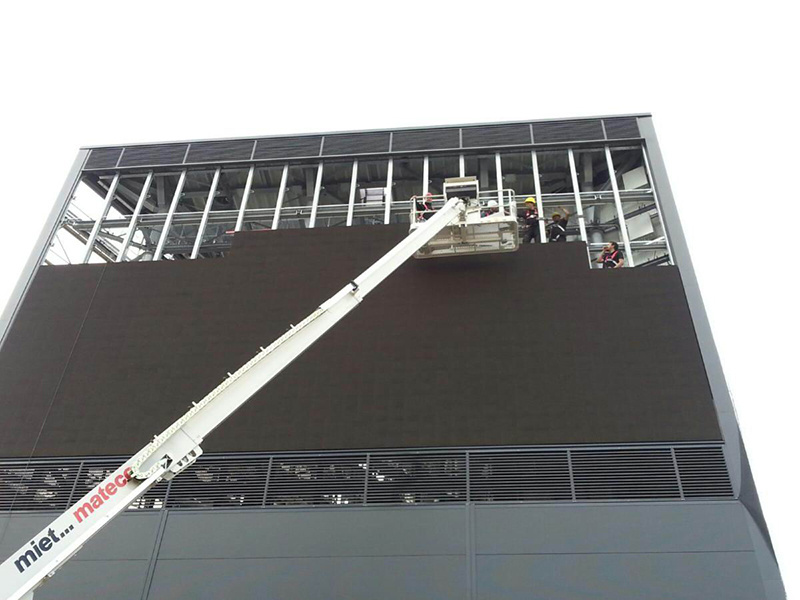

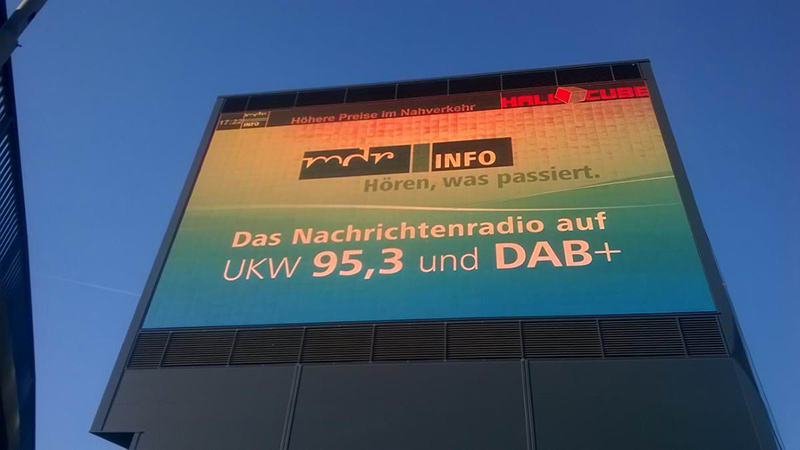

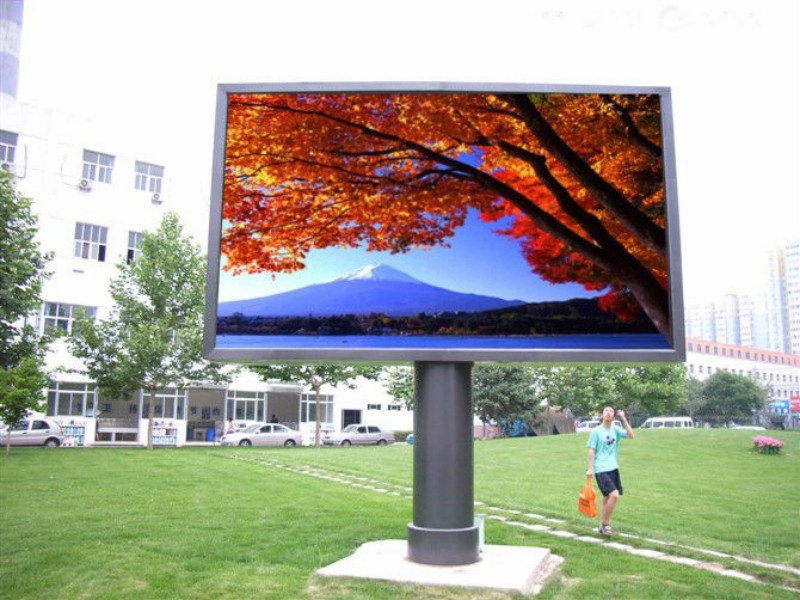

Project Pictures:


Why choosed us :

1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system  , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system


Product list:

1. P3\P4\P5\P6...indoor full color led display;
2.P10/P12/P12.5/P16/P20/P25...outdoor full color led screen;
3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.

Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: P10 Outdoor Full Color Video LED Display Billboard
Module Size: 160mm*160mm
IC: Mbi5024
LED Chip: Epistar
Brightness: 6000CD/Sq.M-8000CD/Sq.M
Cabinet Size: 960mm*960mm
Cabinet Material: Iron/Aluminum/Rental Cabinet
Weight: 50kg/Sq.M
Function: Video/Graphic/Text
IP Grade: IP65 Front/IP54 Back
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 600W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Being an over 12 years' LED display supplier, our company has developed an outstanding reputation for manufacturing and distributing all types of premium indoor and outdoor LED displays for commercial use including outdoor LED displays, LED billboards, mobile LED trailers and more at manufacture direct pricing. We are a leader in advanced LED technology with proprietary signage and software solutions.
