Product description:

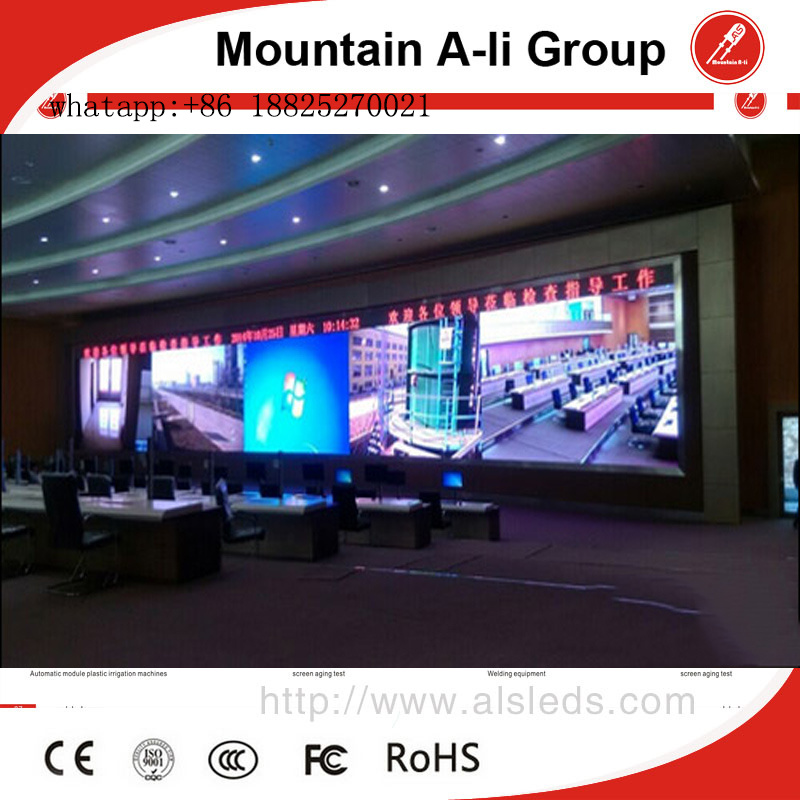

The configuration of P3 indoor full color led display is 1R1G1B. The gap can be controlled less than 02mm,cabinet installation just 20 seconds. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Light, color can be customized.
2.Full magnesium desigh,cooling well,no fans,no noise.
3.High precision.
4.Fast disassembly module just 10seconds.
5.Convenient replacement and maintenance.
6.Durable cabinet structure.
Product Parameter
| Item | Parameter |
Unit Module | Module size | 192mm*96mm |
Module thickness | 14.75mm(without magnet) 26.63mm(with magnet) |
Pixel pitch | 3mm |
Pixel density | 111111dots/m² |
Pixel configuration | 1R1G1B |
Package mode | SMD2121 |
Pixel resolution | 64dots(W)*32dots(H) |
Max power consumption | 18W |
Weight | 0.16kg |
Drive type | constant drive |
Scan mode | 1/16 scan |
Port type | HUB75-A |
Brightness | ≥1500cd/m² |
Dimension | 576mm*576mm |
Quantity of module | 18 |
Power supply | 5V/40A*3PCS |
Thermal discharge | fan 2pcs |
Pixel per cabinet | 192*192 |
Best viewing distance | 3m~20m |
Best viewing angle | 160°(W)120°(H) |
Temperature | working:-10ºC~+50ºC |
Relative humidity | 10%~95% |
Power | Working voltage | AC220V±10% |
Average power consumption | ≤180W/H |
Max power consumption | ≤360W/m² |
Current | ≤20mA(single LED) |
Control system | CPU | pentium4 or above |
Operation system | WIN98/2000/NT/XP |
Control method | synchronization |
Main technical parameter | Drving device | constant current drive IC |
Refresh frequency | ≥400HZ |
Grey scale/color | 256 levels of each color(RGB)/16.7M color |
MTBF | ≥9000hours |
Power switch | automatic switch |
Display mode | 800*600/1024*768 |
