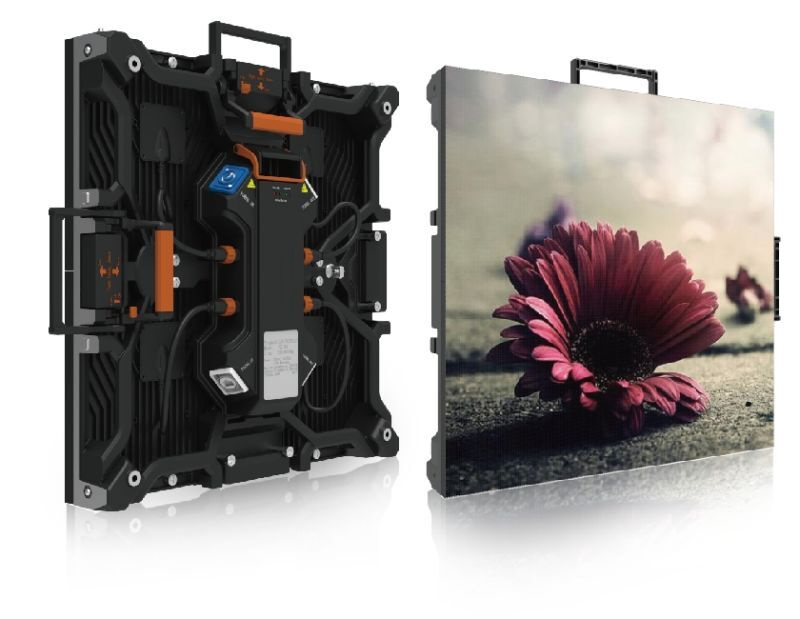

P3.91mm Pixel Pitch Full Color P3.91LED Display For Indoor Event Rental Purpose
This ultra thin & lightweight indoor rental P6.91 LED display is one of our die-casting aluminum indoor rental series.
With density of 16384pixels per square meter, it also produces truly amazing and stunning HD quality images.
What's more, its unique cabinet is designed to be compact, firm, slim and lightweight( 80mm deep and 9kg/babinet).
With 2 handles and 2 interlocks, the whole screen assembly is way too convenient for any indoor event and to save much more labor cost.
Working state indicator at backside makes it easy for you to know its working state without opening the rear
Basic introduction - Indoor P3.91 LED Display
> For real 3.91mm pixel pitch indoor rental LED display
> 16384 pix/m2 pixel density
> Die-casting aluminum has better heat dissipation
> Black faced LED SMDs for rich blacks and better contrast
> Full-HD Processing with DVI, VGA, HD-SDI inputs
> Lightweight at just 9kg per cabinet
> This cabinet size - 500mm x500mm x 80mm - is also universal for P3.91, P4.81 and P6.25 LED screen
| Model | R3II |
| Pixel Pitch | 3.91 mm |
| Brightness | ≤1000 nits |
| Refresh Rate | ≥3840 Hz |
| Driving Method | 1/16 |
| Grey level | 16 bit |
| Color Display | 281 trillion |
| LED Type | SMD2020 |
| IP Grade | IP31 |
| Power consumption(Max/Average) | 650/350 W/sq.m |
| Cabinet |
|
| Module Size (mm) | 250×250×18 mm |
| Cabinet Size(mm) | 500×500×80 mm |
| Cabinet Material | Die-cast Aluminum |
| Cabinet weight(kg) | 9 kg |
| Cabinet resolution | 128×128 Pixels |
| Pixel density | 16384 Pixels/sq.m |
| Application environment |
|
| Input AC power voltage | 110V-240V |
| Working temperature | -20ºC~50ºC |
| Working humidity | 10%-95% |
| Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| Control distance | cat-5Lan cable:<1000m;single-mode fiber cable:<10kilometer |
