Specifications

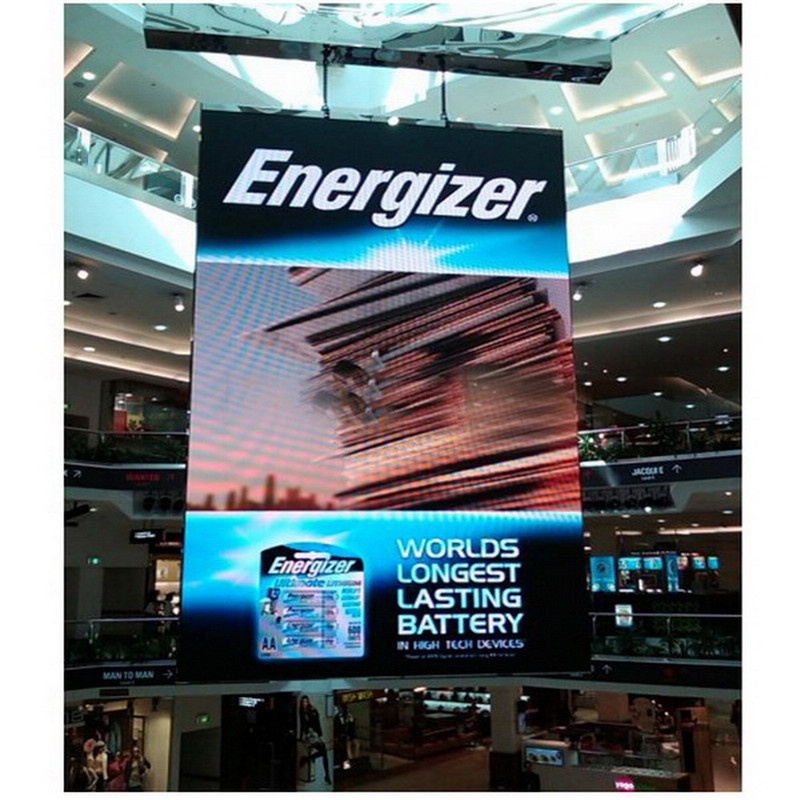

Small Pixel Die-cast LED Screen Display for Indoor rental with No Fan Design,next generation's LED screen
P3.91 Small Pixel Die-cast LED Screen Display for Indoor rental with No Fan Design,next generation's LED screen
Highlights:
1, Screen cabinet is made of die-casting aluminum material, The effect of heat dissipation is remarkable.
2, Light weight, the weight of the cabinetis less than 7 kg; easy installation.
3, With bullet-shaped spring lock, the module can be quickly removed and easy to maintain.
4. No fan design,Noise-free power supply.
5, Simply perfect appearance, cabinet is adopted die casting molding, high precision and can be realized fine adjustment.
Item | Rental Diecast LED Display |
| Pixel Pitch(mm) | 3.91mm |
| Pixel density(dot/m2) | 65536 |
| LED Type | 2020 |
| Viewing angle: | H:140°,V:140° |
| Brightness(nits) | ≥1000 |
| Drive Method | 1/16. |
| Color Depth(nits) | 65536 |
| Refresh Rate(Hz) | 1920 |
| Module Size(mm) | 250×250×16 |
| Cabinet Size(mm) | 500×500×88 |
| Cabinet Material | Aluminum |
| Cabinet weight(kg) | 7 |
| Voltage | 110/220V |
| Average.power(W / m2) | 200 |
| Max.power(W / m2) | 600 |
| IP Grade | IP31 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE |
1. Excellent design should be easy to understood, the product will talk for itself, cancelling the necessity of detailed explain.
2. Seamless stitching: With our special connector design it is easy to reduce gaps while installing, creating a perfect display.
3. Adopt the latest anti-collision technology, make a more stable cabinet during rental events, make a longer life span.
4. Magnesium aluminum alloy control box, adapt to all kinds of weather.
5. Customized Arc design: bevel edge cabinet design according to customer requirements makes Arc screen assembling.
6. Gapless connection: under 0.1 mm tolerance gap between cabinet and module, under 0.2mm tolerance gap between cabinets.
