Fi Overview:

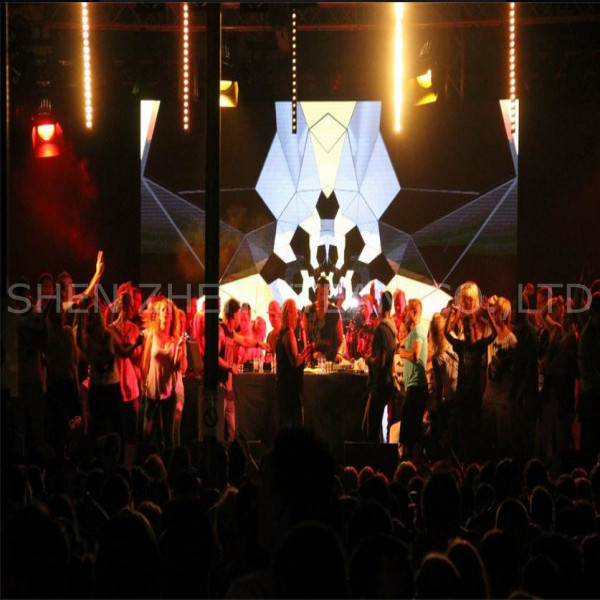

Fi is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fi is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Main Features:
1. All die casting aluminum, secure and nice in constitution.
2. Dust proof, IP 43
3.1R1G1B 3-IN-1 SMD, good in mixture color
4. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
5. Could be exact connected and easy to install and dismount.
|
Item |
Fi3.75 |
Fi 4 |
Fi 4.6 |
Fi 5 |
Fi 6 |
|
Pixel Pitch |
3.75mm |
4mm |
4.615mm |
5mm |
6mm |
|
LED Type |
SMD2121 |
SMD2724 |
SMD2724 |
SMD3528 |
SMD3528 |
|
Pixel Matrix /pcs |
128*128 |
120*120 |
104*104 |
96*96 |
80*80 |
|
Pixel Density/sqm |
71111 |
62500 |
46952 |
40000 |
27778 |
|
Brightness |
900nit |
1000nit |
1000nit |
1500nit |
1500nit |
|
Driving Mode |
1/16 scan |
1/15 scan |
1/13 scan |
1/12 scan |
1/10 scan |
|
Viewing Distance |
≥3m |
≥4m |
≥4m |
≥5m |
≥6m |
|
Weight |
8.5kg/panel |
|
Max. Power Consumption |
120W/panel |
|
Ave. Power Consumption |
60 W/panel |
|
Panel Size |
480x480x80mm |
|
LED Configuration |
RGB 3in1 Black |
|
LED Lamp/Chip |
Silar or Epistar |
|
Viewing Angle |
140°(H) X 120°(V) |
|
Gray Scale |
≥14bit |
|
Refresh Rate |
2880 Hz |
|
Color Temperature |
8000K±500 |
|
Colors Space |
687 billion |
|
Protection Level |
IP43 |
|
Application |
Indoor,rental&fixed |
|
Input Signal |
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Power Supply |
Meanwell or G-energy with UL certificate |
|
Display Media |
Video,graphic,animation,signage,cartoon,text,etc |
|
Control System |
YDEA(showbox),Nova,Linsn,PC based dynamic capture & mapping. |
|
System Operating Platform |
WINDOW98/2000/XP/7/8 |
|
Working Environment |
Temperature: -10ºC~+50ºC, humidity: 10-90%RH |
|
Warranty |
Two years |
|
Lifetime |
> 50,000 hours(to>70% luminous output) |
|
Certificate |
CE&RoHs |
