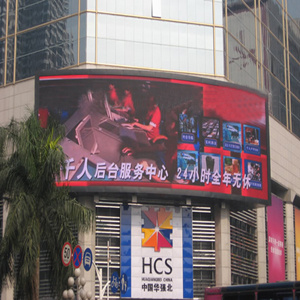

P20mm led display outdoor:
Brief discription:
1. High definition, energy saving
2. Lower heat productivity;
3. Outdoor advertising application;
4. High rate of return on investment.
Features:
1. LED Chip: Epistar from Taiwan;
2. Brightness: High Brightness that can have a better viewing effect;
3. IP 65: Good waterproof and dustproof design;
4. Operation: Easy Installation & Operate;
5. Service: Two years warranty.
Package:
1. Wooden case
2. Flight case(for rental)
Delivery time:
Within 15~25 days after receiving the deposit.
|
Display and control feature |
Structure feature |
|
Specification |
Parameter |
Specification |
Parameter |
|
Pixel Pitch |
20 mm |
Module size |
320 mm*160 mm |
|
Pixel composing |
2R1G1B |
Resolution/module |
16 dots*8 dots |
|
Wavelength (R) |
625±5 |
Standard cabinet size |
1280 mm*960 mm |
|
Wavelength (G) |
522±3 |
Weight per sqm |
65 Kg/sqm |
|
Wavelength (B) |
567±3 |
PIP grade |
IP65 |
|
Wave Angle (H) |
140°(H)/ 60° |
Install mode |
Wallmount, hung and stand structure |
|
LED package |
DIP546 |
Cabinet Material |
Iron/Aluminum |
|
Density per sqm |
2500 pixel |
Working power |
|
Display color |
256*256*256 |
Specification |
Parameter |
|
Whiteness brightness |
≥6500 |
Working voltage |
AC 220v/380v±10% 47~64Hz |
|
Brightness level |
128 grade |
Max power/sqm |
750W/sqm |
|
Frequency |
60 Hz |
Average power/sqm |
400W/sqm |
|
Refresh |
400 Hz |
Short circuit protection |
Yes |
|
Driving method |
Constant Static |
Led Lamp type |
Cree |
|
Control mode |
synchronous |
Working environment |
|
Display port |
DVI |
Specification |
Parameter |
|
Display mode |
1024*768 /1024*1024 |
Environment |
Outdoor |
|
Out of control |
1/10,000 |
Working temperature |
-20~50 |
|
lifetime |
100,000 hours |
Working Humidity |
10~90% |
