P20 Full Color Outdoor LED Display
| Price: |
US $ 500/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
P20 Full Color Outdoor LED Display with cheap cost with competitive price,it is a good cost performance product for bigger sizeProduct Features:1. DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging
2. Good waterproof IP65, Anti-corrosion, Antifogging
3. Long life span>100,000Hours,low power consumption
4.High quality,meet international standard request of CE,Rohs,FCC
5.Long view distance, High definition, Good uniformity
6.Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically
7. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.

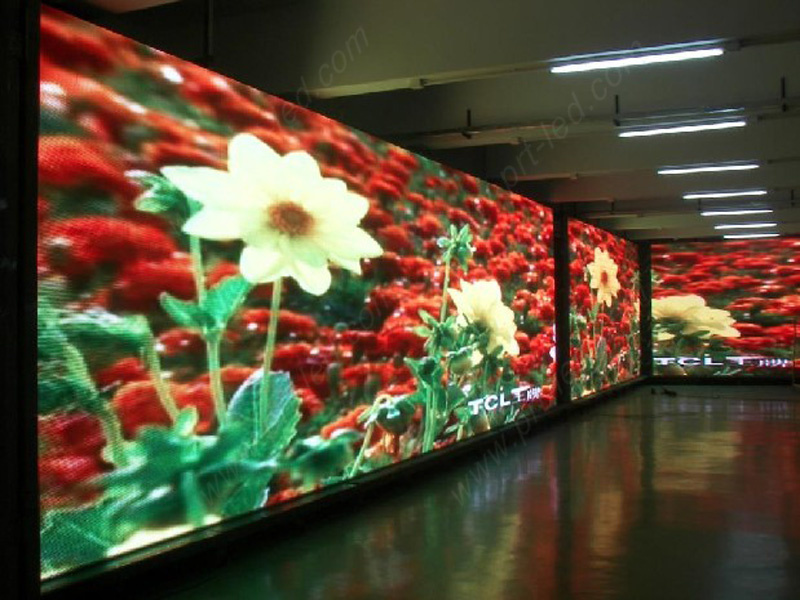

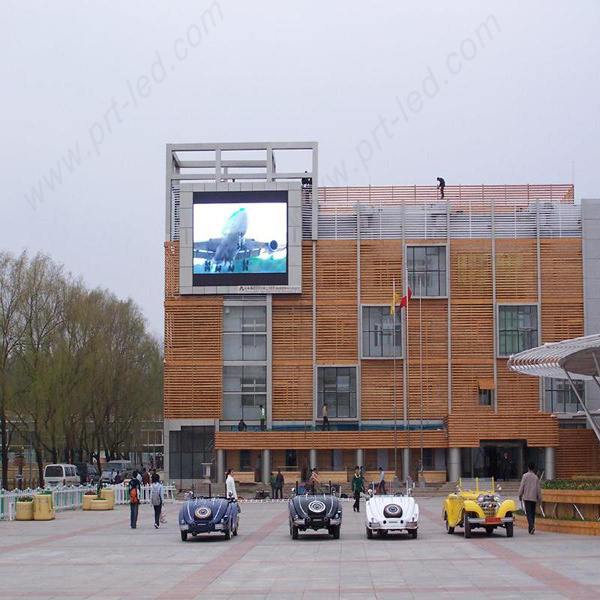

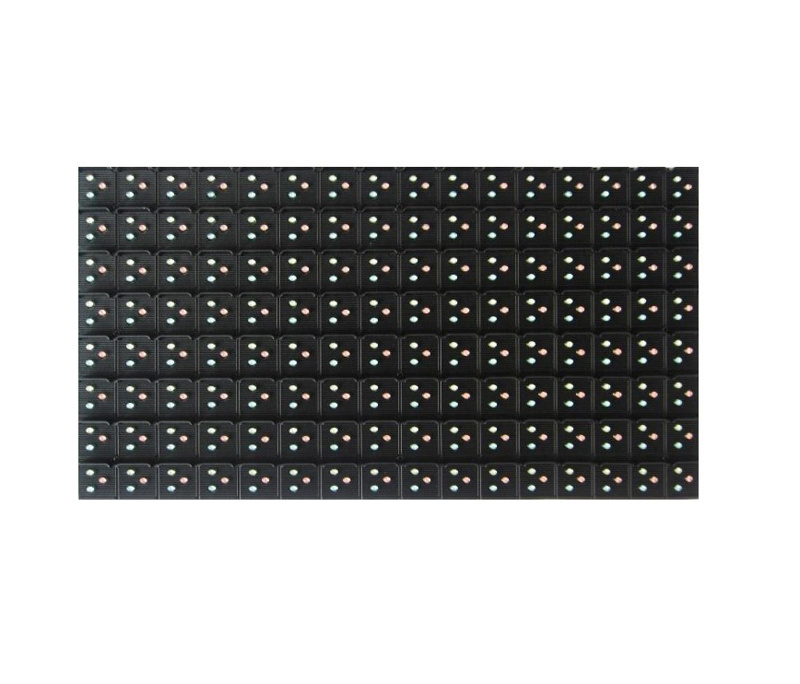

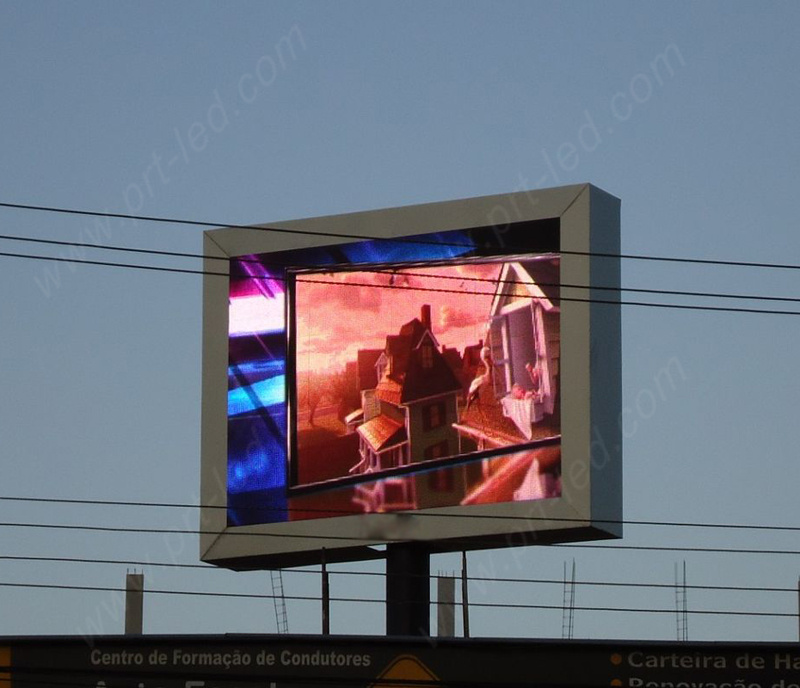

More pictures for checking:
| P20 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 20.0 |
| Pixel Density | Dots/sq.m | 2500 |
| Pixel Configuration |
| DIP346 |
| Cabinet Resolution | dots | 64×48 |
| Refresh Rate | Hz | ≥3000 |
| View Angle(H/V) | ° | 100/45 |
| Brightness | nits | ≥7000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 700/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 1280x960 |
| Cabinet Material |
| Iron |
| Cabinet Weight | Kg | 40.0 |
| Module Size(W×H) | mm | 320×320 |
| Environment |
| Operation Temperature |
| -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| Static |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
| Prod Model: |
P20-DIP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
DIP 346 |
| Module Size: |
320X320mm |
| Module Resolution: |
16X16dots |
| Cabinet Size: |
1280X960mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
RoHS |
| Pixel Pitch: |
20mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
300W / m² |
| Application: |
Advertising,Stage Performance,Rental |
| Pixel Density: |
2500dots/Sq.M |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.
Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.
Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
You are welcome! Waiting for you!
