Home LED Light Products P20 Front Access LED Display Outdoor Use (LS-O-P20-V-MF)

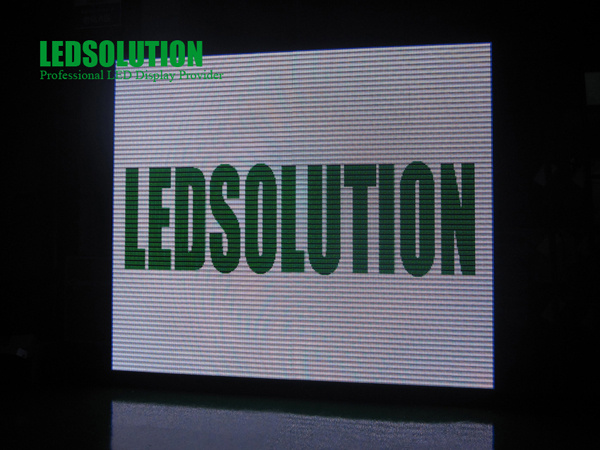

P20 Front Access LED Display Outdoor Use (LS-O-P20-V-MF)

P20 Front Access LED Display Outdoor Use (LS-O-P20-V-MF)
Price: Negotiable/Square Meter
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T
P20 Front Access Outdoor LED Display

The front access LED display has two types:
1) Cabinet Front Service
This cabinet design suitable for both indoor and outdoor aplication only one cabinet virtical for the display.

2) Module Front Service
Module front service include LS-O-P16-MF and LS-O-P20-MF, both suitable for any display size outdoor.

Features of the front access LED display:
* application for intallation site has no back maintenance space.
* zero distance from cabinet installation structure to the architecure wall.

LEDSolution LED Display:
ParameterUnitValue
Pitchmm20 / 10
Brightnessnits6, 000
Color temperaturedeg. K6, 500
Viewing angle  Horizontal (50% brightness)deg.130 (+65/-65)
Viewing angle  Vertical (50% brightness)deg.60(+30/-30)
Panel weightkg63
Panel widthmm1, 280
Panel heightmm960
Panel depthmm200
Panel areasq. m.1.229
Panel material Epoxy paint coated Cold rolled steel
Panel Mode Module Front Service
Ingress protection (front/rear)IPIP65/IP43
Operating temperature rangedeg. C-30 to +60
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B2, 1, 1
Resolution per panel 64x48
Dot per panel 3, 072
Dot per sq. meter 2, 500
LED per sq. meter 10, 000
Recommended minimum viewing distancem20
Recommended best viewing distancem25~67
Colors  1, 073.7  millions
Grey scale (linear)Levels1, 024  levels per color
Brightness controlLevels100
Contrast ratio 1, 000: 1
Processing depthbit16
Video frame rateHertz60
Display refresh rateHertz180~3, 000
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts / sq. m.782
Input power (typical)Watts /sq. m.312.8
Lifetime (50% brightness)Hours≥ 100, 000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm520~525
Blue wavelength (dominant)nm470~475
Multimedia data format DVI, MPG, AVI, WMV, RM etc.
Data interconnection UTP Cat 5/Optical Fiber
Mounting system Fixed with 4pcs M10 bolts

Prod Model: LS-O-P20-V-MF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 6, 000nits
Panel Width: 1280mm
Panel Height: 960mm
Panel Depth: 200mm
Panel Material: Epoxy Paint Coated Cold Rolled Steel
Panel Mode: Module Front Service
Resolution Per Panel: 64X48
Recommended Minimum Viewing Distance: 20m
Recommended Best Viewing Distance: 25~67m
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 2R, 1G, 1B
Certification: ETL
Pixel Pitch: 20mm
Display Function: Video Display
Application: Advertising
Scanning Mode: 1/2 Scan
Pixel Density: 2500DOT/M&Sup2
Average Power Consumption: 312W/M&Sup2
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
