Home LED Light Products P16 Outdoor Full Color LED Display for Roadside/High-Way Advertising

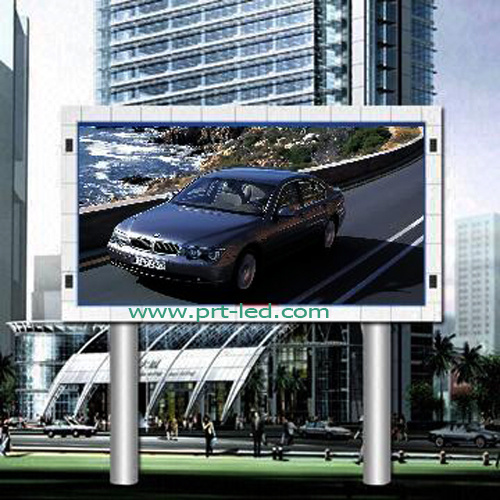

P16 Outdoor Full Color LED Display for Roadside/High-Way Advertising

P16 Outdoor Full Color LED Display for Roadside/High-Way Advertising
Price: US $ 400-600/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
P16 Full Color led display panel with size of 1024x768mm or 1024x1024mm for outdoor permanent install,stability and high brightness

Product Features:

1. DIP led encapsulation confirm the high brightness up to 7500nits, good vision effect even under sunlight,

2.Good waterproof,IP65, Anti-corrosion,Antifogging,suit to any weather

3.High quality,with CE,Rohs,FCC certificates,and 2years warranty

4. Long view distance far from more than150M

5. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically

6.Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.


P16 Outdoor full Color LED Screen Specification
Pixel pitch16mm
Pixel Configuration1R1G1B
LED componentDIP346(Epsitar chips)
Size of module256mm x 256mm
Resolution of module16x16
Size of cabinet1024mmx 768mm x 150mm
Resolution of cabinet64x48
Material of CabinetIron with back doors
Weight of Cabinet<50KGS
Brightness>7500cd/m²
Density3906dots/m²
Best viewing angle110 /50
Best viewing distance15-200M
Maximum power consumption<800W/m²
Average power consumption<300W/m²
Driving methodStatic
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>3000Hz
IP gradeIP65
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

Prod Model: P16 led message sign
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Encapsulation: DIP 346
Module Size: 256X256mm
Cabinet Size: 1024X768mm
IP Grade: IP65
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 16mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 220W / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Certification: RoHS
Pixel Density: 3906dots/Sq.M
Application: Advertising,Stage Performance,Rental
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.

Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.

Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.

Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!

PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.

You are welcome! Waiting for you!
