Home LED Light Products P16 Outdoor Full Color Flexible Curtain LED Display (Moon Series), P16mm Pitch Waterproof Flexible LED Display

P16 Outdoor Full Color Flexible Curtain LED Display (Moon Series), P16mm Pitch Waterproof Flexible LED Display

P16 Outdoor Full Color Flexible Curtain LED Display (Moon Series), P16mm Pitch Waterproof Flexible LED Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Square Meter
Pay Type: T/T,Western Union
Galaxias-16 P16 Flex LED Display
Feature:

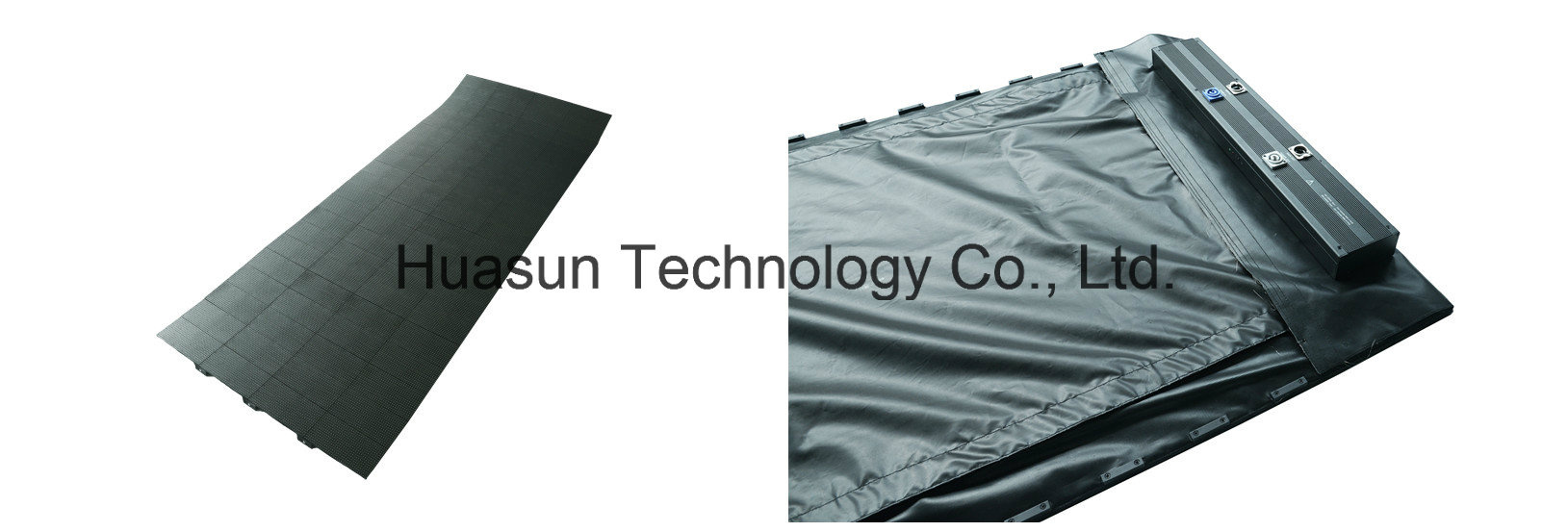

High Quality DFR drapery face mAterial
High contrast and brightness, light weight, thin and good for mobile  rental

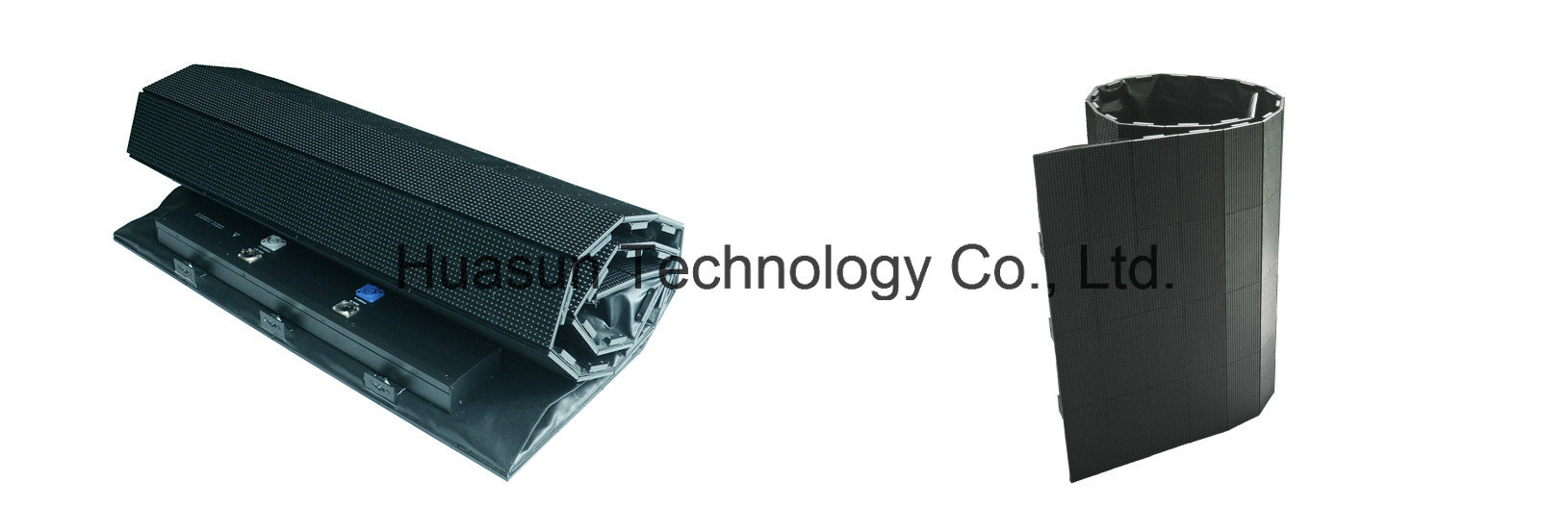

Soft and Flexible
Reflesh rate of more than 10,000Hz

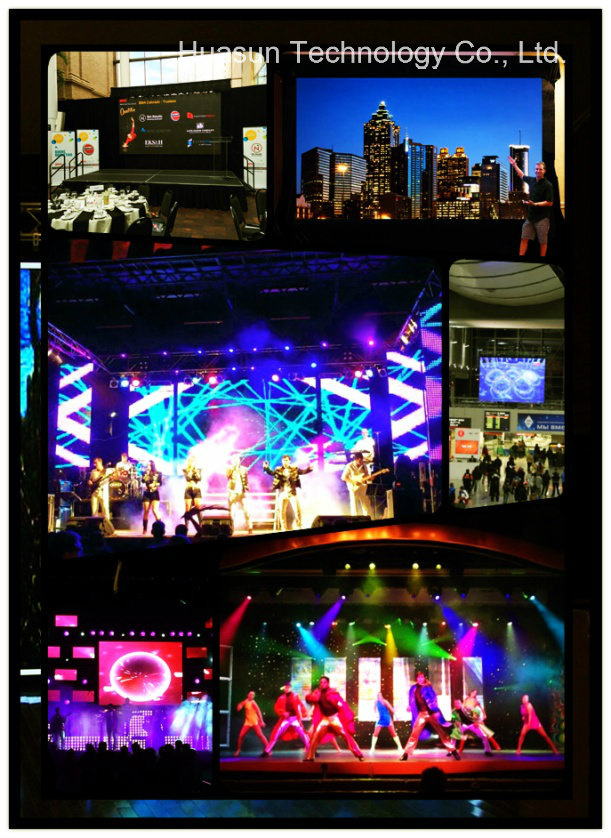

Application: Indoor/outdoor use, media advertising display, entertainment, stage background and rental.



Item   Moon16
Pixel pitch    16mm
Brightness(White)   4800 nit
Density of pixel  3906 Dots/m2
Pixel constitution  RGB 3-in-1 SMD5050
LED encapsulation  SMD5050
Display mode1280x1024
Optimum view-ing distance   12m
Optimum viewing Horizonal:120 ° ;Vertical:120 °
Maximum power consumption 318W/ m2
Average power consumption112W/ m2
Size W 512mm× L 2560mmx T 25mm
Weight 9.4kg/ m2
Driving method Full scan drive
Face material DFR velvet drapery
Operating environment temperture -20°C-+50°C
IP Rating  Front: IP65, Rear: IP54
Working voltage  DC 24V
Refresh rate≥10000 Hz
Operating systemsWindows 2000/XP/Vista/Win 7
signal typeAV,S-Video,VGA,CVBS,HDMI,DVI
Power SystemPower-600, Power-1200
InstallationHang


Prod Model: Galaxias-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 4800 Nits
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: Static Scan
Application: Stage Performance
Certification: RoHS
Pixel Pitch: 16mm
Pixel Density: 3906 Dots/M2
System Operating Platform: Windows 2000/XP/Vista/Win 7
IP Rating: IP65
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.

The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.

Welcome to future of Huasun: A brighten future.
