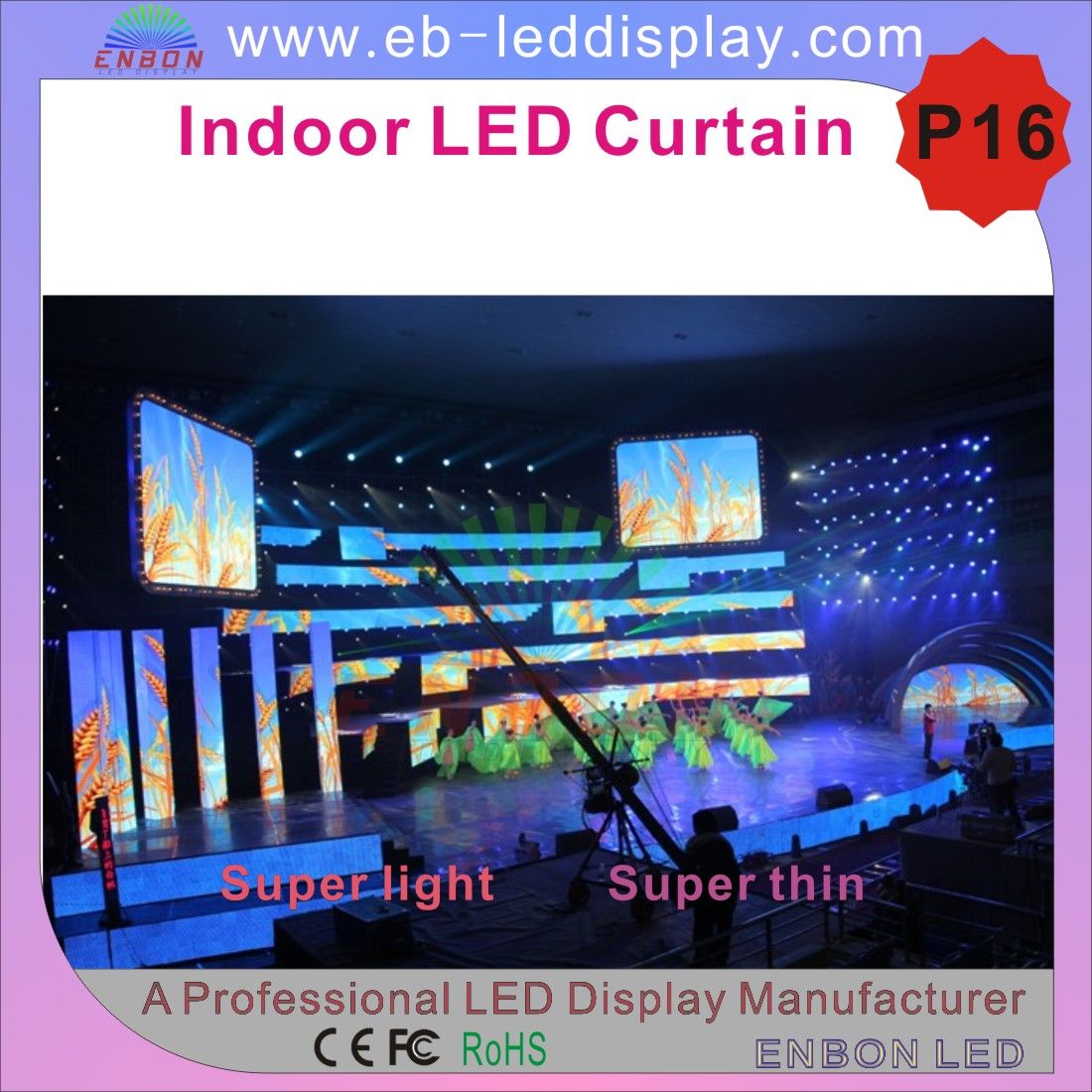

P16 indoor LED curtain Display for rental
Specifications
Colorful background use LED screen, transparent, low power cost, thin, light weight indoor
ENBON indoor mesh LED screen is image magnification screen which is specifically created for indoor applications, at music festivals, theatre, concert, large tradeshow booths, etc.
The LED mesh screen indoor features super lightweight, slim, hollow. It allows audio, wind, light and smoke to pass through, presenting dramatic effect.
With a transparency factor of 57%, the hollow frame screen enables designers to create large wide-canvas screens and layer video with lighting to create stunning visual 3D-like effects.
Features:
Highly transparent, better color performance
Simple and easy to operate, install and transport
Lightweight, quick-connect hanging brackets guarantee fast build-up and tear-down
Silent system by fan-less design
Cost-effective, create visual effects at special events on a limited budget
Perfect for entertainment venues, events, exhibitions and architectures with long viewing distances.
| Technical Prameters |
| PROJECT | P16 indoor LED mesh indoor for rental |
| Pixel pitch | 16mm |
| Pixel density | 3906.25 Pixels/sqm |
| Module size(W*H) | 256 W(mm) | 256 H(mm) |
| Module pixels(W*H) | 16 Pixels(W) | 16 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | SMD3528 |
| Cabinet size(W*H*D) | 1024 W(mm) | 768 H(mm) |
| Cabinet resolution | 64 Pixels(W) | 48 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1300cd/sqm. |
| Power consumption(one cabinet) | Max:300W/sqm. Average:100W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 20 Kg/M 2 for Aluminum cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.3mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
