| Price: | US $ 1000-1100/Square Meter |
|---|---|
| Trade Terms: | CIF,EXW |
| Min Order: | 5/Square Meter |
| Pay Type: | T/T,Money Gram,Western Union |

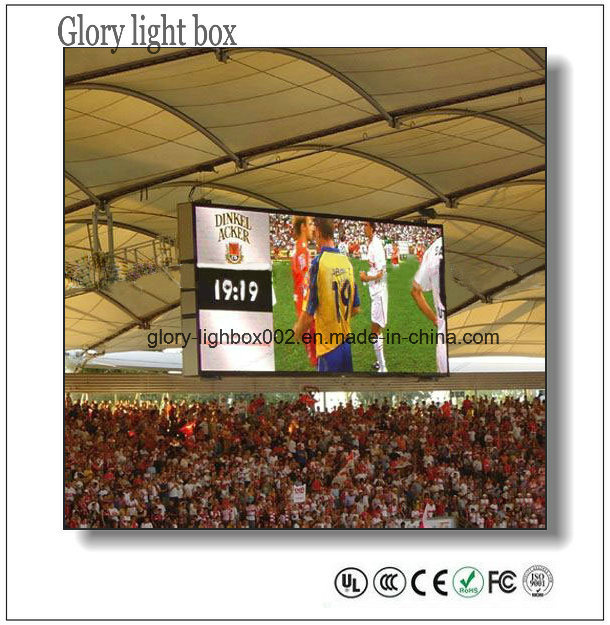

P16 outdoor football stadium perimeter led screen display
1.High Brightness and Saving Engergy
Outdoor HD led display leader,very mature product,each type is at least 2 years ahead of the industry. Using the high brightness led light with the lowest consumption, saving engergy ≥30%, with 28 core technologypatent, whole saving engergy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it possible for customer to upgrade the screen to smaller pixel pitch,Increase the secondary marketing opportunity and maintain good relationship
2.Support Format Low Cost Installation
Broadct color gamut, intelligent adjustment for color temperature and brightness.Uniform color, high contrast, the picture is vivid and nature. Support main displaying format, workable for DVI HDMI 3G/HD/SD SDI display format. Modularized design,low cost for installation and maintenance, easy to operate,support hot plugging.
P16 Football Stadium Perimeter Led Screen Display Specification
| product model | AP16 |
| point spacing | 16 |
| pixel density(dots/m2) | 3906 |
| LED packaging | DIP346 |
| scanning mode | static state |
| Module resolution | 20*20 |
| Module size(mm) | 320*320 |
| Cabinet size(mm) | 1280*960 |
| Cabinet material | Aluminum |
| Cabinet weight(kg) | 55 |
| working voltage(V) | AC220&110 |
| maximum power consumption(W/m 2) | 780 |
| Average Power (W/m 2) | 260 |
| brightness | 7500 |
| color temperature | 6500 |
| visual angle | 110/55 |
| refresh rate | 1920-3840 |
| usage temperature | -20ºC-+50 ºC |
| protect grade | IP65/IP54 |
| Grayscale/color | 13bit |
P10 Outdoor Full Color Led Signs Commercial Cabinet Parameter
| Prod Model: | LED062 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Pitch: | 16mm |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Scanning Mode: | Static Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | UL |
| Average Power Consumption: | 250W |
| Pixel Density: | 3906dots |
