Home LED Light Products P16 Full Color Rental LED Display (semi-outdoor)

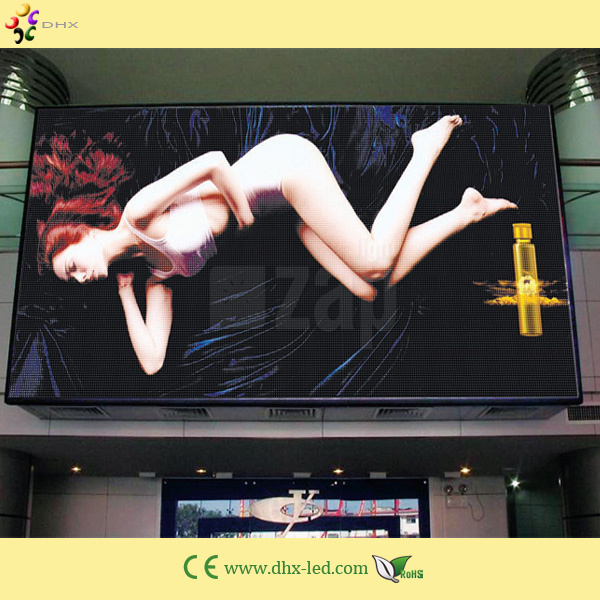

P16 Full Color Rental LED Display (semi-outdoor)

P16 Full Color Rental LED Display (semi-outdoor)
Price: US $ 680/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
Product Name: P16 fulll color LED Advertising Display (good brightness)
1)High brightness;
2)Good flatness;
3)High contrast;
4)High energy saving display can save 50% more than traditional display.

* Products Advantages:
1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
Pixel Pitch Pixel Configuration
16mm Lamp (1-Red, 1-Green,1-Blue)




LED
Color Brand Origin wavelength Brightness
Red OPTO TW 625±5nm 600 + 20% mcd
Green SILAN CN 525±5nm 1800 + 20% mcd
Blue SILAN CN 465±5nm 450 + 20% mcd
Color matching R:G:B/3:6:1, In order to reach the best white balance effect.







LED Module Parameter
Dimension Definition Shell Working Voltage
Mm Dots Hi-quality &anti-fire PC V
256 x256 16x 16 DC5




 Cabinet Parameter
Dimension definition Material protection level weight
mm dots   Front/Rear kg
1024*1024 64*64 Steel IP43/IP56 55




Whole LED display Parameter
Density 3,906dots/m²
Best viewing distanse 12m-200m
Display Capabilities Video, Text, Graphics, etc
Input Signal HDTV,NTSC, PAL, S-video, VGA
Display Colors 16.7M colors
Processing/Color Depth 14bit
Gray Levels 4096 levels Shades
Refresh Rate >600Hz  (adjustable)
Avpower Consumption 600Watt / m²
Lifetime of LEDs More than 100,000 Hours
Input Voltage AC220V / 380V + 10%
(three items and five lines
Exchange frame speed 60Hz
Vertical Viewing Angle 60°
Horizontal Viewing Angle 120°
Way of Drive 1/4 scan constant current
Control mode To be synchronized with computer monitor
Brightness >7500cd / m² ( adjustable )
Requirement of System environment - 20ºC~ 60ºC, 10% - 90%RH
Communication Distance For 5 types of line(IBDN), no more than 150 meters; for fiber, no more than 5000 meters.
Prod Model: DHX20130912002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Category: LED Display
Display Capabilities: Video, Text, Graphics, etc
Lifetime Of LEDs: More Than 100, 000 Hours
Business Type: Manufacturer
View Angle: Horizontal 110° Vertical 60°
Module`S Material: Lamps
Humidity-Operating: 10% to 95%
Display Function: Video Display
Scanning Mode: Static Scan
Certification: CE
System Operating Platform: WIN XP
Pixel Pitch: 16mm
Pixel Density: 3906 dots/m²
Pixel Configuration: 1R,1G,1B
IP Rating: IP43
Brightness: 6500 CD/Sqm
Shenzhen DHX Technology Co., Ltd is a joint-stock and hi-tech company, It specialize in designing, manufacturing and marketing LED display.The company was found in 2006, now the company is came into being and grew a modernized factory with a set of automation equipment under joint effort of each other.And it has more than 2, 000square meters of the factory building with 200 skilled workers.

Shenzhen DHX Technology Co., Ltd can guarantee for the quality of LED display and LED lamps, It has the certificates of CE, CCC and RoHS etc.IP65 dustproof &waterproof test, energy-saving test, flame retardant test, seismic test, sunlight dazzle prevention test, electromagnetic compatibility test, high/low-temperature test, and heavy metal content test, Under the strict control of ISO9001:2000, we improve the management for the quality of our products and pay much more attention for 7S every workday, Shenzhen DHX Company confluences excellent professionals in electronics circuit design and chip technology development.

Shenzhen DHX company receives all along presents the customer for the center, take the quality as the survival, to seek the development with the good faith the management indea, with the most sincere heart, the most advanced technology, the highest quality product, the most satisfactory service to win the customer, to win the market.Our tenet:Honesty, innovation, excellence and equality.
