Home LED Light Products P16 DIP Outdoor Full Color LED Display

P16 DIP Outdoor Full Color LED Display

P16 DIP Outdoor Full Color LED Display
Price: US $ 670-1510/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
 P16 Outdoor DIP Full Color  LED Display Series:

ItemOutdoor DIP LED display
Pixel Pitch(mm)10mm12mm16mm20mm
Pixel density(/m2)10000694439062500
LED TypeDIP346
Viewing angle:H:120°,V:60°
Brightness(nits)≥6500≥5000≥7000≥5500
Drive Method1/4Static
Color Depth(nits)16384
Refresh Rate(Hz)22002800

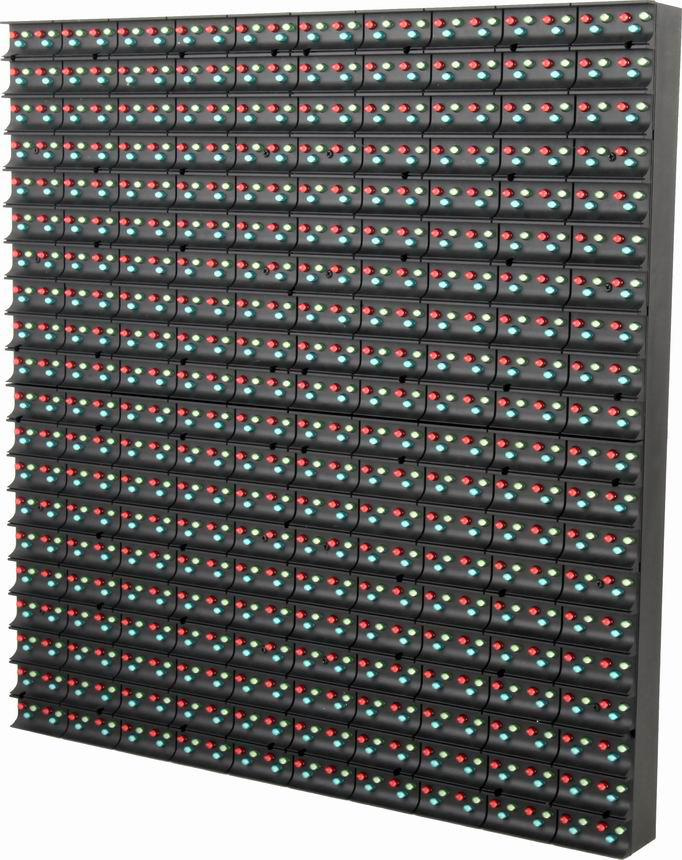

Module Size(mm)160×160x28.5192×192x28.5256×256x28.5320×320x28.5
Cabinet Size(mm)960×960x178.51024×1024x178.51280×960x178.5
Cabinet Materialiron
Cabinet weight(kg)505568
Voltage110/220V
Average.power(W / m2)250170250220
Max.power(W / m2)750500750650
IP GradeIP65/IP54
Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)≥50000
P16 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightning accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.

Description:LED Display /led display screen/LED sign/LED video wall

1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm (DIP LED)
2). Display Color: 256*256*256
3). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
4). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
5). Package: Flight case, wooden case
6). Guarantee:2 year

Prod Model: P16 DIP Outdoor Full Color LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: More Than 7000 CD/Sqm
Module Size: 256*256
Cabinet Material: Iron
Warranty: Two Years
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Certification: CCC
Pixel Pitch: 16mm
Display Function: Video Display
Application: Advertising
Scanning Mode: Static Scan
Average Power Consumption: 220W / m²
Pixel Density: 3906 DOT / Sqm
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
