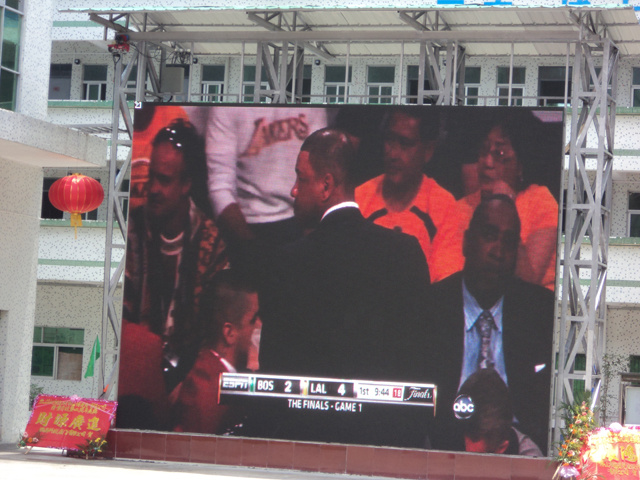

P15 outdoor full color LED display
|
Classification of items |
P15
Real pixel color |
Unit
Module |
Pixel Pitch |
15mm |
|
Size of Module |
240mm*120mm |
|
Pixel Constitution |
2R1G1B |
|
LED Encapsulation |
DIP546 |
|
Resolution of Module |
4445 dots/ m² |
|
Module Pixels |
16dots*8dots |
Major
Technical
Parameters |
Size of Cabinet |
960mm*720mm |
|
Resolution of Cabinet |
64dots*48dots |
|
Max. Power Consumption |
1350W/ m² |
|
View Distance |
14-130m |
Weight of Cabinet
(Waterproof Cabinet) |
60KG |
|
Driving Method |
Static Constant Driving |
|
Luminance of white balance |
≥7500cd/ m² |
|
Frame Frequency |
≥ 60HZ |
|
Refresh Rate |
10 — 3000HZ adjustable |
|
View Angle |
Horizontal: ≥ 120 ° ; Vertical: ≥ 45 ° |
|
Operating Temperature |
"-20 ° C--50 ° C" |
|
Working Voltage |
220V/110V ± 10% |
|
Grey Scale |
16 bit |
|
Input Singal |
RF,S-Video, RGB, RGBHV, YUV,COMPOSITION |
|
Control System |
PCTV Card + DVI display + Master Card + Optical transmitter(optional) |
|
Mean Time Between Failure |
≥ 5000 hours |
|
Life Span |
100000 hours |
|
Out of Control Rate |
<0.0001 |
|
Software |
LINSN or Zedc |
As a Proffessional led lights & led display products manufactuer, Pingwei Technology Limited was established in 2002 in intergrading the R&D, manufacturing and sale of 2 series, Led lights, led display ) more than 70 items products, including Led lights and led display. The products such as Led tube, led panel lights and led display. Our factory in Shenzhen China, occupies a floor area of 20, 000square meters with 4 production lines and a labor force of more than 500 employees. Over 9 years experience has given us the confidence to guarantee the quality of our products., keep improving manufacturing efficiency is the spirit of our daily operation. All our management is organized according to ISO9001: 2000, thus all of our products are produced to the strict standards. Stable quality and reasonable price help us enjoy high reputation from our customers all over the world and China.
PINGWEI also enjoys a very strong self-collocation capacity, it has its own SMT lines, Led lights, Led display assembly lines and modern finished goods assembly lines, which can strictly control the quality from the very begining to the delivery of goods, and can properly decrease the cost as well.
We have established good relationship with many foreign company, we are also looking for good partner in all of the world.
We are promoting our own brand name and accepting OEM orders and providing the total solutions to our customers. We are esteem and develop the mutual benefit between our suppliers and customers as the strategic partners. Only the Win-Win Policy can enlarge and streng then our own supply and demand chain cycle in this LED industry. Back up by the ISO9001: 2000 factory in China, we are producing our led products in house by our 3 High speed SMT machines. All of our products have to be passed the strict QA and QC testing program before delivery. Made the product reliability, we are worthy your trust. Now, start with us, you will find a new Led lights, Led display partner in China.
