Product Description
1. High contrast and brightness
2. Fast and easy to assemble, just hang with header and hook. Self combination with magnet. 4~6 panels can be combined as a large screen. No need tools and less trouble during installation.
3. Extra flexibility, weighs under10Kg/ m2 and thinner than 20mm, Very convenient to use and move, saving a lot of transportation and assembly costs
4. Outstanding image quality and stable performance with a refreshing rate at 10, 000Hz
5. Wide viewing angle

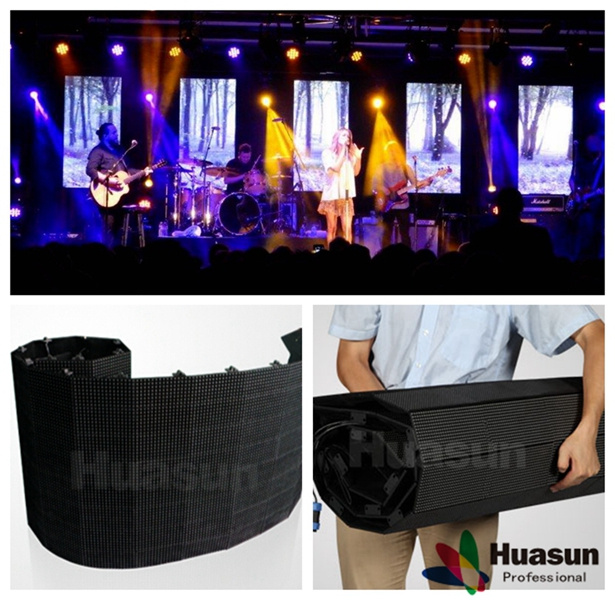

6. Unbeatable flexibility allows the display to be widely used for preparation of various shapes such as round, triangle, cylinder, and cone, etc
7.Soft and flexible: It is flexible or soft which can be folded into any shape for your situation, such as circle, column, ellipse, triangle, etc.
8. Light weight: 90% lighter than most other traditional LED screen options
10. Unlimited Size: Many pieces can be combined together into a big screen; All sizes are available
11. Easy maintenance: The broken LED pixels can be replaced without difficulty
| Model No | Galaxias 6 | Galaxias 7 | Galaxias 9 | Galaxias 12 | Galaxias 16 |
| Pixel Pitch | 6 mm | 7.8mm | 9.375mm
| 12.5mm | 16mm |
| Density | 27778 Dot / m² | 16384 Dot / m² | 11378 Dot / m² | 6400Dot / m² | 3906 Dot / m² |
| Pixel Configuration | RGB 3-IN-1 SMD 2121 |
RGB 3-IN-1 SMD 3528 | RGB 3-IN-1 SMD 5050 |
| Brightness(White) | 2600 nit | 2730 nit | 2100 nit
| 1650 nit | 1300 nit
|
| Optima visual distance | 4.5m | 5m
| 7m
| 9m | 12m |
Max.Power Consumption
|
180 W/m² |
190 W/m² |
175W/m² |
185 W/m² |
230W/m² |
Average.Power Consumption
|
63 W/m² |
67 W/m² |
62W/m² |
65 W/m² |
80W/m² |
Recommendation size
(W=Width
H=Height | W: 800mm
H: 2400mm
T: 25mm | W:1000mm
H:2400mm
T: 25mm | W:600mm
H:2400mm
T: 25mm | W: 800mm
H:3200mm
T: 25mm | W: 1024mm
H:2560mm
T: 25mm |
| Weight | 11.5Kg/Sq.m | 11.0Kg/Sq.m | 10.4Kg/Sq.m | 9.8Kg/Sq.m | 9.2Kg/Sq.m |
| Work voltage | DC 24V |
| Brightness level | 16 levels |
| Bit depth per color | 16 bit |
| Bit depth per pixel | 48 bit |
| Visual Angle | Horizonal:120 ° ;Vertical:120 ° |
| Data Refresh Rate | ≥10000Hz |
| Display mode | 1280×1024 |
| Drive mode | Constant current |
| Signal type | AV,S-Video,VGA,CVBS,HDMI,DVI |
| Operating System | Windows2000/XP/Vista/Windows7 |
| Control Distance | HSYV; <100m |
| Face material | DFR velvet drapery |
| Ingress Protection | IP 43 |
| Ambient Temperature | -20 ~ +50 °C |
| Relative Humidity | 10% ~ 90% |
| Installation | Hang |
| Power system | Power-600, Power-1200 Power system |
| Safety certificate | CE FCC ROHS |
3. After-sale service
1). Free training all the time
2). Warranty : 1 years
3). Complaint respond in 24 hours; maintenance guidance and problem solution supplied in 48 hours.
4). Free technician
4. Company information
Huasun is established in 2006 by Benson, specializing in flexible LED display technolody and related products.
With the first paten in 2008 as as Milestone, Huasun has been manufacturing and suppling flexible LED display products for over 7 years.
Focusing on the technology of LED display, especially in the area of flexible types, Huasun is an industry leader in the global market. Huasun provides its great expertise and advanced products world-wide for entertaiment business, media advertising, and LED display lease. Products of Huasun are showing facinating images everyday in more than 50 countries around the world
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
