P12.5mm Mrled LED Stage Disp / LED Mesh Screen Display ISO9001

P12.5mm Mrled LED Stage Disp / LED Mesh Screen Display ISO9001
Price: US $ 500-3000/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,D/P
P12.5mm Mrled Led Stage Display Indoor / LED Mesh Screen DIsplay ISO9001  Specifications
1)1500CD/M2
2)CE,RHOS,UL
3)High refresh rate
4)Good after sale serces

Product Features:
The design has the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.

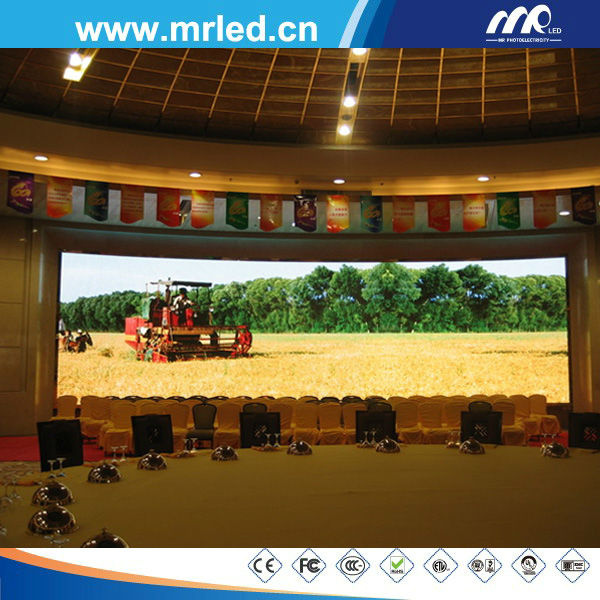

This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.
The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.
The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.
High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.


MRLED Products Advantages:
1. MRLED guaratee our products two years'quality assurance period(warranty is 2 year from
the shipping date)
2  Whin the warranty:the failure caused by product quality problems can be returned to us
for maintenance; the damage to the product caused by users' human factors is only available for fee
maintenance service.MRLED would offer some spares to reduce the maintenance time.
3. Exceed the warranty,only material cost is charged for depot repair , and users need
undertake engineers' travel subsidy costs and transportation and accommodation costs if need
on-site maintenance
4. We will send engineers to direct installation and training for customers' technicians
5. MRLED will send engineers to our customers for inspection and maintenance or  the screen
each half year
6. MRLED provide 24-hour-free-technical-support by telephone or email.

Item
6.25mm indoor LED Mesh screen,stage screen (ISO9001)
Pixel Pitch:6.25mm7.62mm10.4mm12.5mm20mm
Driving Method :  1/10 1/8 1/5 1/4 1/4
LED type :SMD3528
Brightness:≥1300cd/m2≥1300cd/m2≥1300cd/m2≥1300cd/m2≥1300cd/m2
Pixel density :25600pix/m217222pix/m29246pix/m26400pix/m22500pix/m2
Viewing angle:120°H and 120°v
Module Size(W*H):250*250mm305*366mm208*416mm200*400mm320*320mm
Cabinet Size(W*H*D):500*1000*68mm610*732*65mm416*832*50mm400*800*50mm640*640*50mm
Cabinet weight:9kg6kg6kg6kg6kg
Cabinet Material:Aluminum  sheet metal
Avarage Power Consumption:300 W/m228 W/m2240 W/m2210 W/m2100 W/m2
Max Consumption :680 W/m2560W/m2490 W/m2430 W/m2200 W/m2
Refresh rate:≥900HZ
Color Depth:14bit
voltage :200-240V
IP Rrating:IP31
Operating temperature :-20-60 degree
Storage temperature:-40-70 degree
Operation humidity:10-90%
Storage humidity:10-90%
Life span (hrs):≥50000
MTBF (hrs) :≥3500
Control system:Linsn/Nova
Source compatibility (with video processor):YC, VGA, DVI, YUV, SDI, RGB,CVBS,GD-SDI
Compliant standard:CE,FCC,RoHS,ETL,CCC

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Chip: SMD3528
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Pixel Density: 10,000 dots / m²
Scanning Mode: 1/4 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Advertising
Certification: ETL
Pixel Pitch: 12.5mm
IP Rating: IP31
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.

Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.

Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.

MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
