Home LED Light Products P10mm Stadium Indoor & Outdoor LED Display

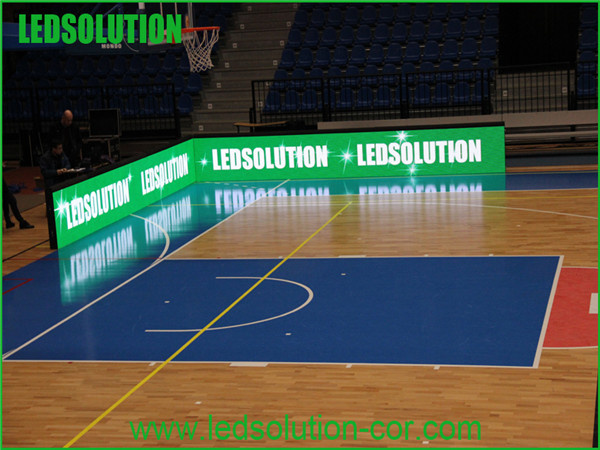

P10mm Stadium Indoor & Outdoor LED Display

P10mm Stadium Indoor & Outdoor LED Display
Price: Negotiable/Square Meter
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T
LED Display, P10 Stadium LED Screen, Stadium LED Display, Perimeter LED Display\screen, Perimeter LED Display\sign, Football LED Display, P10LED Display, P10 Perimeter LED Display, Football LED Display\billboard, P10 Perimeter LED display screen, Stadium Advertising LED Display, LED Screen Solution for Sport Stadium, Sport LED Display P10:

Features of the perimeter LED display:
*high brightness
*good heat dissipation
*easy maintenance
*excellent after-sales service

Claw lock system to link cabinets to avoid visible gaps between cabinets.
Soft rubber mask facia to protect the screen and the players on impact
Simple power and data connections, daisy chain from one cabinet to the next for fast connection
Any cabinet in any position, no need for numbering cabinets and ensuring they are connected in the correct order, easy software set-up when cabinets are connected.

LEDSolution LED display
ParameterUnitValue
Pitchmm10
Brightnessnits6, 000
Color temperaturedeg. K6, 500
Viewing angle  Horizontal (50% brightness)deg.140(-70 ~ +70)
Viewing angle  Vertical (50% brightness)deg.140(-70 ~ +70)
Panel weightkg54
Panel widthmm960
Panel heightmm960
Panel depthmm170
Panel areasq. m.0.922
Panel material
Epoxy paint coated Cold rolled steel
Panel Mode
Quick Assembly Cabinet with Bracket
Special Design
Soft Plastic Mask
Ingress protection (front/rear)IPIP65/IP43
Operating temperature rangedeg. C-30 to +60
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B3in1 SMD
Resolution per panel
96x96
Dot per panel
9, 216
Dot per sq. meter
10, 000
LED per sq. meter
10, 000
Recommended minimum viewing distancem10
Recommended best viewing distancem10~30
Colors
1, 073.7  millions
Grey scale (linear)Levels1, 024  levels per color
Brightness controlLevels100
Contrast ratio
1, 000: 1
Processing depthbit16
Video frame rateHertz60
Display refresh rateHertz180~3, 000
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts /sq. m.860
Input power (typical)Watts /sq. m.344
Lifetime (50% brightness)Hours≥ 100, 000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm520~525
Blue wavelength (dominant)nm470~475
Multimedia data format
, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Stand on ground by bracket

Prod Model: LS-O-P10-SMD-P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 6, 000nits
Viewing Angle: 140/140
Panel Size: 960X960
Resolution Per Panel: 96X96
Panel Material: Epoxy Paint Coated Cold Rolled Steel
Mounting System: Stand on Ground by Bracket
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Video Display
Pixel Density: 10000 dot / m²
Display Type: LED Video Display
Application: Advertising
Certification: ETL
Pixel Configuration: 3in1 SMD
Average Power Consumption: 344/M&Sup2
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
