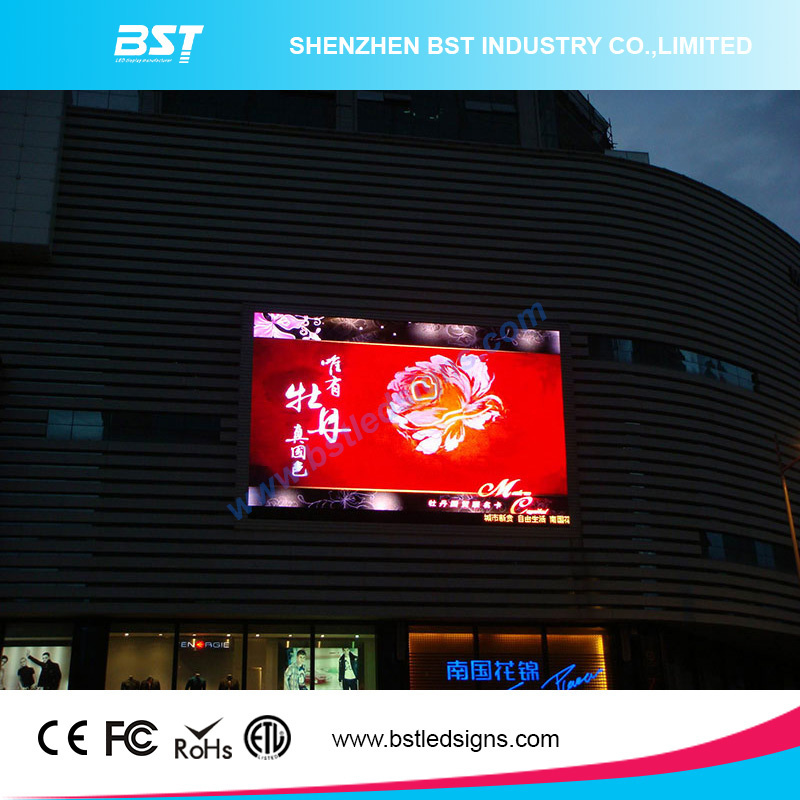

Home LED Light Products P10mm Outdoor LED Advertising Display Boad with Curve Design

P10mm Outdoor LED Advertising Display Boad with Curve Design

P10mm Outdoor LED Advertising Display Boad with Curve Design
Price: US $ 550-600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Application

BST SIGN's LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.

Features
:
1.Standard cabinet design & component design
2.High reliability: Average time between failures(MTBF)is 2 years at least
3.Long life time: Normal lifespan should be more than 8 years
4.Energy saving: 51% energy saving, lowering operation cost significantly
5.Easy to install: Stacking installation design enables easier installation



ModelBST-FS-10
Pixel  Pitch10mm
Unit  Size1280mm x 960mm x150mm
LED  TypeSMD3535(DIP346)
Pixel / Unit128x96
Unit  Weight60kg(steel)
Viewing  Angle(H/V)140°/140°(120°/70°)
ApplicationStorage-40~60° C,     Working-20~50° C
Protection  Level(Front/Rear)IP65/IP54
Power  Consumption( AVG.)420W/m2
Driving1/4 Scan
Frame  Refresh≥ 60Hz
Data  Refresh  Rate>1500Hz
Processing16bit
Max    Brightness>5500nits(>6500nits)
Power  SupplyAC 110/220±10%,  50~60Hz
MTBF≥ 1000  Hours
Life  Span≥ 50000  Hours
Pixel  Failure< 0.0003

Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe
Size: 1280X960mm
Water Proof: IP65
Pacakge: Wooden Case
Maintainence: Rear Service
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: ETL
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.

Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.

We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
