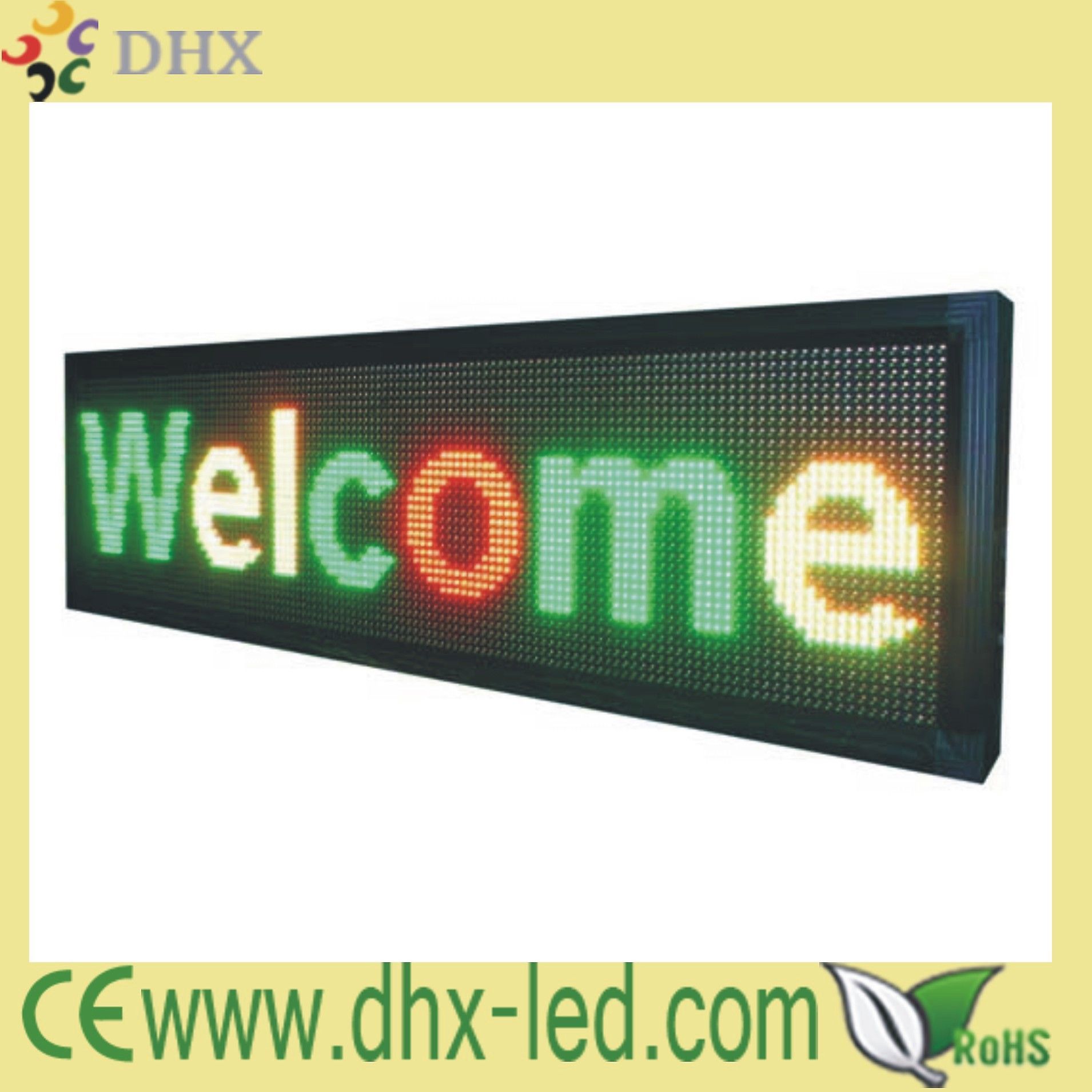

Product Name: P10 two color semi-outdoor LED screen displays for advertising
1)High brightness;
2)Good flatness;
3)High contrast;
4)High energy saving display can save 50% more than traditional display.
* Products Advantages:
1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
Pixel Pitch |
Pixel Configuration |
10mm |
Lamp (1-Red, 1-Green) |
LED
Color |
Brand |
Origin |
wavelength |
Brightness |
Red |
OPTO |
TW |
625±5nm |
600 + 20% mcd |
Green |
SILAN |
CN |
525±5nm |
1800 + 20% mcd |
LED Module Parameter
Dimension |
Definition |
Shell |
Working Voltage |
Mm |
Dots |
Hi-quality &anti-fire PC |
V |
160 x160 |
16 x 16 |
DC5 |
Cabinet Parameter
Dimension |
definition |
Material |
protection level |
weight |
mm |
dots |
|
Front/Rear |
kg |
960*960 |
96*96 |
Steel |
IP43/IP56 |
40 |
Whole LED display Parameter
Density |
10,000dots/m² |
Best viewing distanse |
5m-55m |
Display Capabilities |
Text, Graphics, etc |
Input Signal |
HDTV,NTSC, PAL, S-video, VGA |
Display Colors |
16.7M colors |
Processing/Color Depth |
14bit |
Gray Levels |
4096 levels Shades |
Refresh Rate |
>600Hz (adjustable) |
Avpower Consumption |
600Watt / m² |
Lifetime of LEDs |
More than 100,000 Hours |
Input Voltage |
AC220V / 380V + 10% |
(three items and five lines |
Exchange frame speed |
60Hz |
Vertical Viewing Angle |
60° |
Horizontal Viewing Angle |
120° |
Way of Drive |
1/4 scan constant current |
Control mode |
To be synchronized with computer monitor |
Brightness |
>7500cd / m² ( adjustable ) |
Requirement of System environment |
- 20ºC~ 60ºC, 10% - 90%RH |
Communication Distance |
For 5 types of line(IBDN), no more than 150 meters; for fiber, no more than 5000 meters. |
Shenzhen DHX Technology Co., Ltd is a joint-stock and hi-tech company, It specialize in designing, manufacturing and marketing LED display.The company was found in 2006, now the company is came into being and grew a modernized factory with a set of automation equipment under joint effort of each other.And it has more than 2, 000square meters of the factory building with 200 skilled workers.
Shenzhen DHX Technology Co., Ltd can guarantee for the quality of LED display and LED lamps, It has the certificates of CE, CCC and RoHS etc.IP65 dustproof &waterproof test, energy-saving test, flame retardant test, seismic test, sunlight dazzle prevention test, electromagnetic compatibility test, high/low-temperature test, and heavy metal content test, Under the strict control of ISO9001:2000, we improve the management for the quality of our products and pay much more attention for 7S every workday, Shenzhen DHX Company confluences excellent professionals in electronics circuit design and chip technology development.
Shenzhen DHX company receives all along presents the customer for the center, take the quality as the survival, to seek the development with the good faith the management indea, with the most sincere heart, the most advanced technology, the highest quality product, the most satisfactory service to win the customer, to win the market.Our tenet:Honesty, innovation, excellence and equality.
