P10 Outdoor SMD Advertising LED Display

P10 Outdoor SMD Advertising LED Display
Price: US $ 839/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
P10 Outdoor SMD Advertising LED Display

1. High brightness:
We display support automatically or manually adjust the brightness of the LED display screen.

2. Good LED chip:
High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system.

3. Clear vivid image quality:
Throughout the show, the picture clear, bright color.


P10 Outdoor SMD Technical Parameters
Item NameParameter
Model NoSY-P10-2S

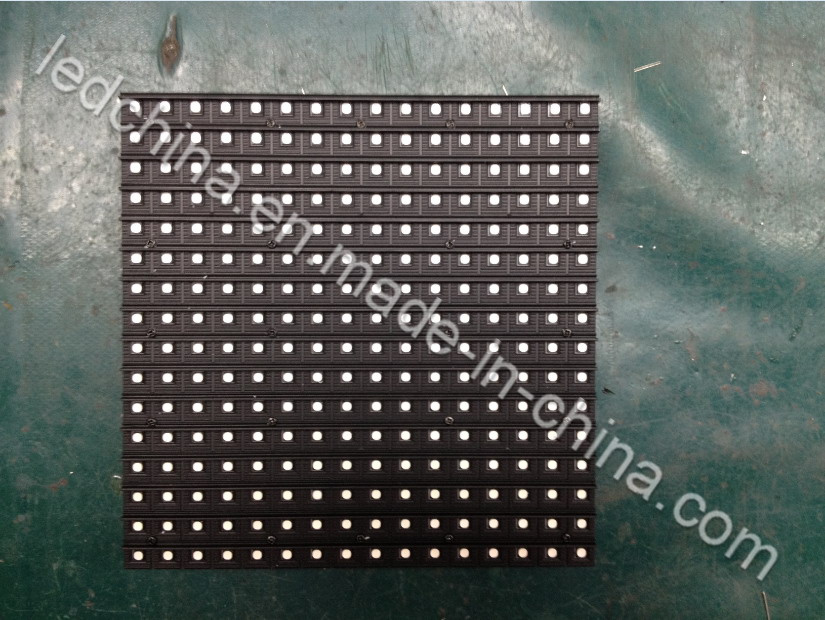

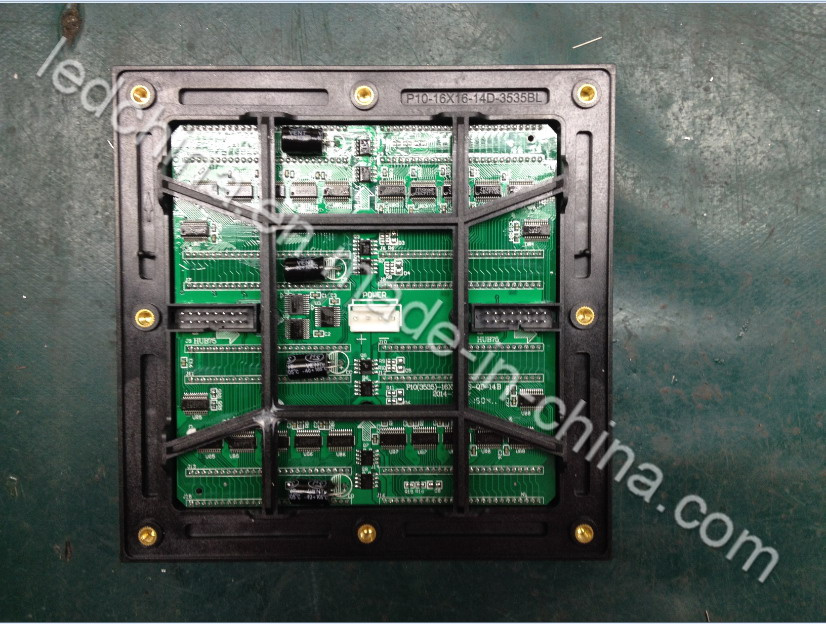

Module size160mm*160mm
Pixel pitch10mm
Pixel Density10000 pixels/m2
Pixel configuration1R1G1B
LED Package modeSMD3535
Module resolution16dots(H)*16dots(V)
Drive typeConstant drive
Scan mode1/2scan
Port typeHUB75-A
Brightness of white balance≥7500cd/m2
Cabinet Dimension960mm*960mm
Module Quantity18pcs
Cabinet Resolution96*96
Cabinet MaterialIron, Aluminum or Die Casting Aluminum
Best viewing distance10M~50M
Best viewing angle120°(H) 60°(V)
IP RatingIP65
Average Power consumption500W/m2
Max.Power consumption≤1400W/m2
Current≤20mA(single LED)
Frame Frequency≥60Hz
Refresh frequency≥600HZ
Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz
Temperaturestorage:-35ºC~+85ºC
working:-20ºC~+50ºC
Humidity10%-95%
Grey scale/colors256levels of each color(RGB)/16.7M colors
MTBF≥5,000hours
Screen Lifespan≥100,000 hours
Screen Plainness<±1mm
Blind Spot Rate<0.0001
CPUPentium4 or above
Operation systemWIN98/2000/NT/XP
Control methodSynchronization

Prod Model: SY-P10-2S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: Two Years After Shipping
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Pixel Density: 10000 dot / m²
Scanning Mode: 1/2 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC
Average Power Consumption: 500W/M2
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.

We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.

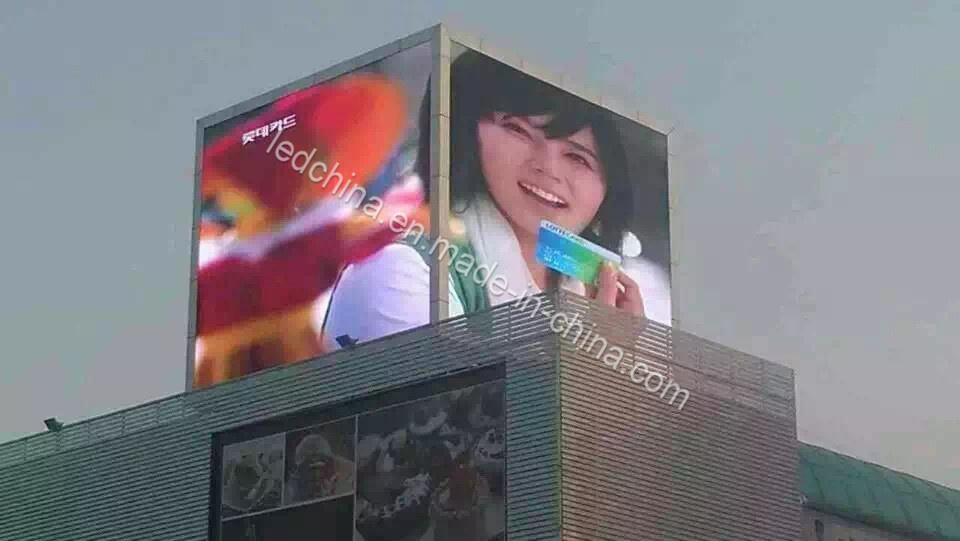

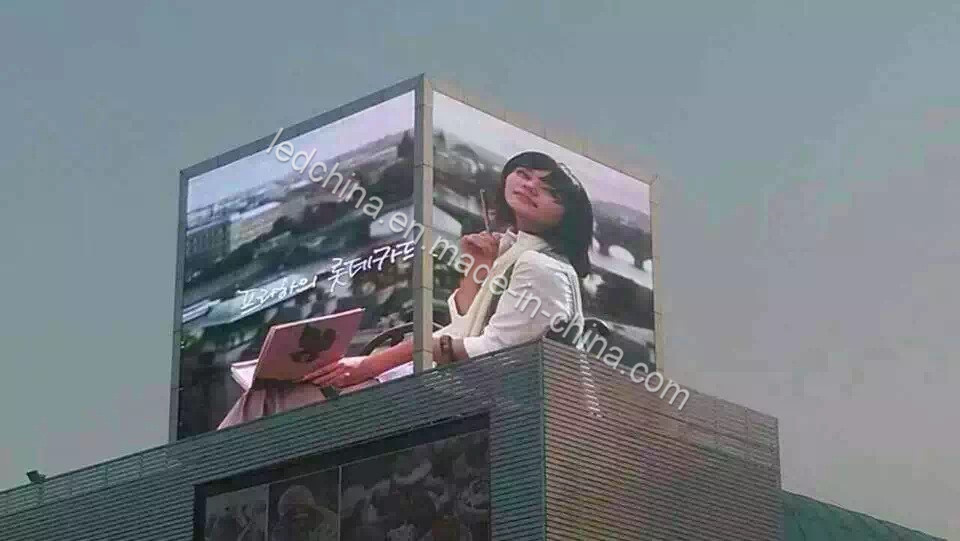

Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.

Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
