P10 Outdoor LED Display of Die-Casting Aluminium Cabinet

P10 Outdoor LED Display of Die-Casting Aluminium Cabinet
Price: US $ 1000-1200/Square Meter
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T

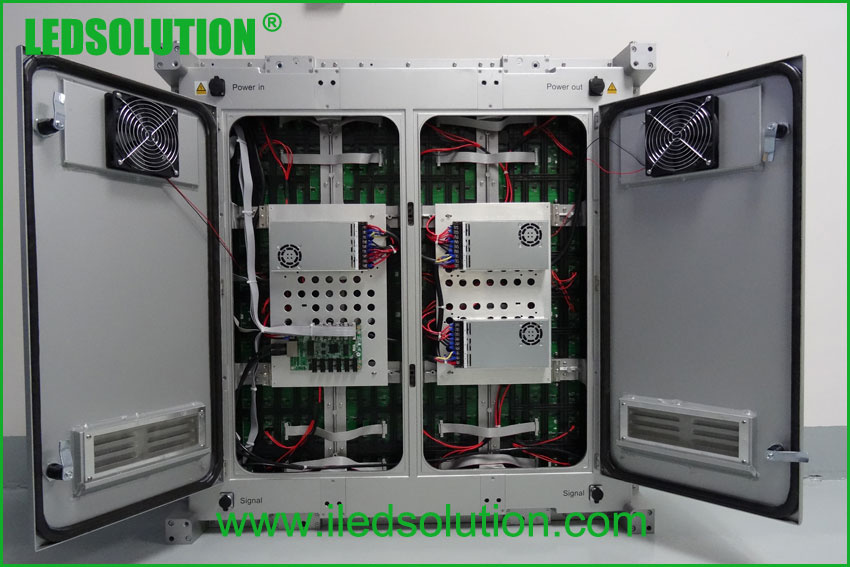

Die-cast Aluminum LED Display is a new series in LEDSOLUTION. It is designed
Specially for rental application. Easy assembly, easy dis-assembly. No need for any
Tools.


Easy assembly Disassembly by hands without tools
Super smart flatness
Seamless tiled display
Sharp Brightness for outdoor use
Up to 1, 073.7 million color
Long Durability and High Reliability
Low Maintenance Cost
Energy Efficient
Superb Picture Quality
ParameterUnitValue
Pitchmm10
Brightnessnits6,000
Color temperaturedeg. K6,500
Viewing angle - Horizontal (50% brightness)deg.140(-70 ~ +70)
Viewing angle - Vertical (50% brightness)deg.140(-70 ~ +70)
Panel weightkg35
Panel widthmm960
Panel heightmm960
Panel depthmm110
Panel areasq. m.0.9216
Panel material
Epoxy paint coated Aluminum
Panel Mode
Die-Cast rental
Operating temperature rangedeg. C-30 to +60
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/BOutdoor 3in1 SMD
Resolution per panel
96x96
Dot per panel
9,216
Dot per sq. meter
10,000
LED per sq. meter
10,000
Recommended minimum viewing distancem7.6
Recommended best viewing distancem10~100
Colors
281 Trillion
Grey scale (linear)Levels65,536 levels per color
Brightness controlLevels100
Contrast ratio
1,000:1
Processing depthbit16
Video frame rateHertz60
Display refresh rateHertz180~3,000
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts / panel.800
Input power (typical)Watts / panel.320
Lifetime (50% brightness)Hours≥100,000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm520~525
Blue wavelength (dominant)nm470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging / Fixed

Prod Model: LS-DO-P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 6, 000nits
Panel Size: 960X960mm
Resolution Per Panel: 96X96
Mounting System: Hanging / Fixed
Panel Material: Epoxy Paint Coated Aluminum
Panel Mode: Die-Cast Rental
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Video Display
Average Power Consumption: 220W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Certification: CE
Pixel Configuration: 3in1 SMD
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
