Mountain A-Li Group Electronic Company
Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Products list
1. P3\P4\P5\P6\P7.62\P10 Inndoor Full Color Led Display;
2. P6/P7/P8 /P10/P12//P16/P20/Outdoor Full Color Led Screen
Why choosed us:
1. Price Advantage: No. 1 cost effective
2. Quality advantage: Serious QC control system, best material
3. Service advantage: After service dept& Tech Dept. Perfect after sales system
Introduction:

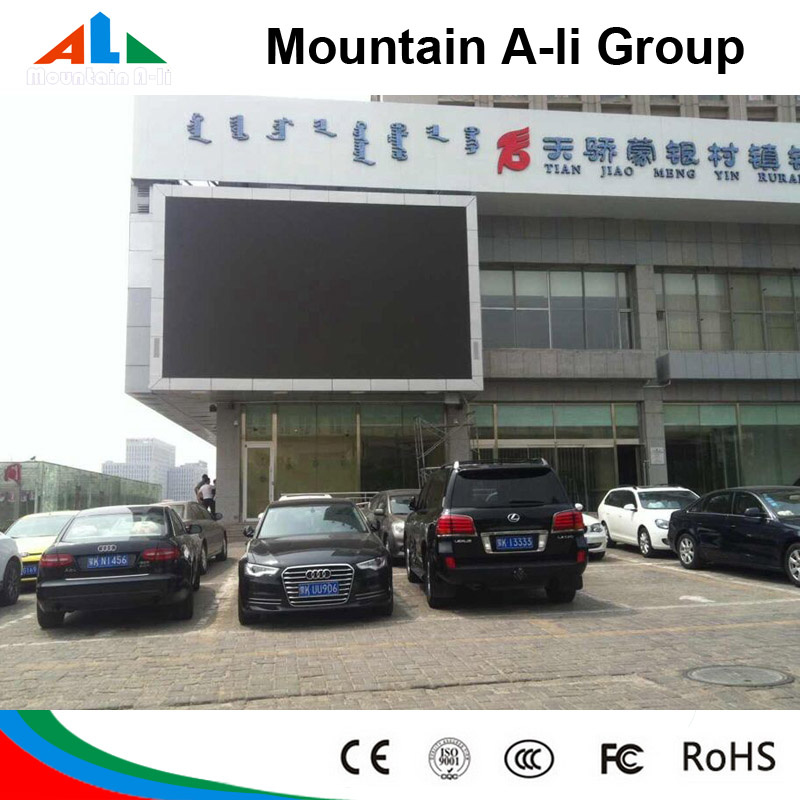

LED display composed of red color, green color and blue color. It can show the high speed, high clearly and distinguishable images and moving text. We can make screen of different color and size according to the client's need. The widely application is in sports venues, business centers, the information centers, exhibition centers, talent exchange centers, recreation venues, hospitals, courts, government organs, large square chamber, the advertising ect.
In today's world, quick and effective communication is essential for every business or organization_retail shops, auto dealers, churches, schools, restaurants, and even banks. To do this, you need the right display using the right technology. Sales caster network-ready LED displays and electronic message centers have revolutionized the way companies reach their customers and employees. Whether you are looking for an indoor LED display or an outdoor LED sign, LED digital signage and software are sure to suit your needs.
|
The specifications of modules |
|
Items |
Parameter |
|
Product Model |
P10 Full Color Led Module |
|
Module size |
160mm*160mm |
|
Pixel pitch |
10mm |
|
Pixel density |
10000dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Module resolution |
16dots(W)*16dots |
|
Module maximum power consumption |
20W |
|
Module Thickness |
25CM |
|
Module Weight |
0.55kg |
|
Driving method |
Constant Current Driving |
|
Scanning method |
1/4 scan |
|
Interface |
HUB75 |
|
Brightness |
≥7500-8000cd/m2 |
|
The specifications of cabinets |
|
Cabinet size |
960mm*960mm |
|
Module quantity |
36pcs |
|
Power supply |
5V/40A 5V/60A |
|
Cabinet resolution |
96*96dots |
|
Optimal viewing distance |
10M~100M |
|
Optimal viewing angle |
160°(W) 120°(H) |
|
RHWorking temperature |
(Work :-20°C~+60°C) |
|
System operating humility |
10%-95% |
|
The specifications of power supplier |
|
Operating Voltage |
AC220V±10% |
|
Average power consumption |
350W/H |
|
Maximum power consumption |
≤700W/m2 |
|
Electric current |
≤20mA(single LED) |
|
The specifications of control card |
|
Control Panels |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
Control model |
Synchronization with PC |
|
The specifications of the main technical parameters |
|
Driving device |
Constant Current Driving |
|
Refresh rate |
≥600HZ |
|
Grey scale |
RGB Each 256, can display 16.7M colors) |
|
MTBF |
≥9000hours |
|
Power switch |
Automatic Switch |
|
Display Mode |
800*600/1024*768/1280*900 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
