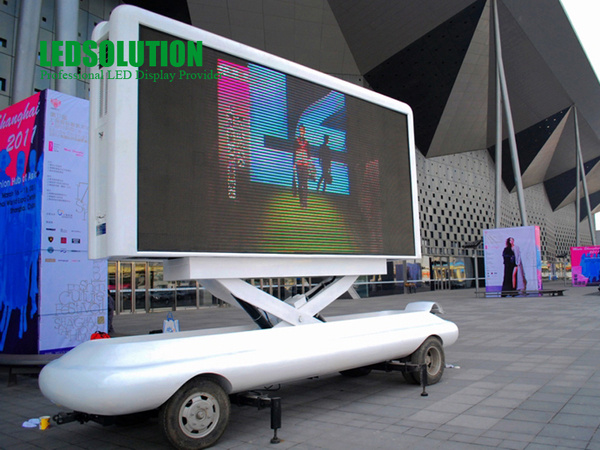

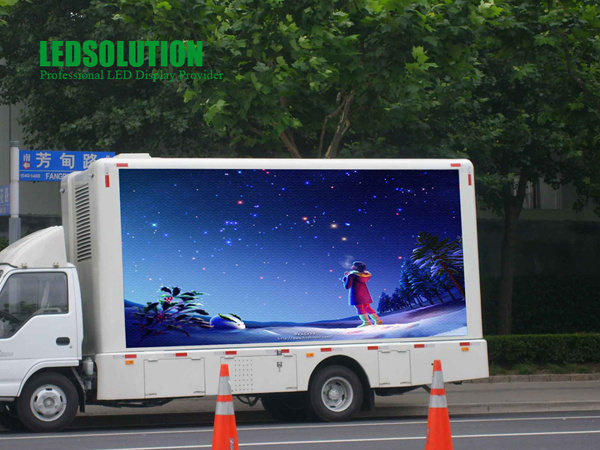

P10 Mobile LED Display for Advertising, Traffic etc
| Price: |
US $ 1000-1500/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Mobile Led Screen:
*Quick assembly model, 2 persons are able to assemble 20sqm within one hour
*Light weight, for indoor application, only 38kg/sqm, for outdoor application, only 45kg/sqm
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness from 6000 nits onwards
|
Parameter |
Unit |
Value |
|
Pitch |
mm |
10 |
|
Brightness |
nits |
6,000 |
|
Color temperature |
deg. K |
6,500 |
|
Viewing angle - Horizontal (50% brightness) |
deg. |
130 (+65/-65) |
|
Viewing angle - Vertical (50% brightness) |
deg. |
60(+30/-30) |
|
Panel weight |
kg |
48 |
|
Panel width |
mm |
960 |
|
Panel height |
mm |
960 |
|
Panel depth |
mm |
170 |
|
Panel area |
sq. m. |
0.9216 |
|
Panel material |
|
Epoxy paint coated Cold rolled steel |
|
Ingress protection (front/rear) |
IP |
IP65/IP43 |
|
Operating temperature range |
deg. C |
-30 to +60 |
|
Humidity operating |
RH |
10% ~ 90% |
|
Pixel type and configuration |
R/G/B |
1,1,1 |
|
Resolution per panel |
|
96 x 96 |
|
Dot per panel |
|
9,216 |
|
Dot per sq. meter |
|
10,000 |
|
LED per sq. meter |
|
30,000 |
|
Recommended minimum viewing distance |
m |
10 |
|
Recommended best viewing distance |
m |
13~34 |
|
Colors |
|
281 Trillion |
|
Grey scale (linear) |
Levels |
65,536 levels per color |
|
Brightness control |
Levels |
100 |
|
Contrast ratio |
|
1,000:1 |
|
Processing depth |
bit |
16 |
|
Video frame rate |
Hertz |
60 |
|
Display refresh rate |
Hertz |
180~3,000 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hertz |
50 to 60 |
|
Input power (max) |
Watts /cabinet |
800 |
|
Input power (typical) |
Watts /cabinet |
320 |
|
Lifetime (50% brightness) |
Hours |
≥100,000 |
|
Red wavelength (dominant) |
nm |
620~625 |
|
Green wavelength (dominant) |
nm |
525~530 |
|
Blue wavelength (dominant) |
nm |
470~475 |
|
Multimedia data format |
|
DVI,MPG,AVI,WMV,RM etc. |
|
Data interconnection |
|
UTP Cat 5/Optical Fiber |
|
Mounting system |
|
Fixed with 4pcs M10 bolts |
|
Controller |
|
Linsn/NOVA/DBStar |
| Prod Model: |
LS-O-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
Over 6000nit |
| Viewing Angle: |
130/60 Degree |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
RoHS |
| Pixel Density: |
3906 Dots/M2 |
| Average Power Consumption: |
244W/M2 |
