P10 High Definition LED Video Display

P10 High Definition LED Video Display
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: T/T,Western Union

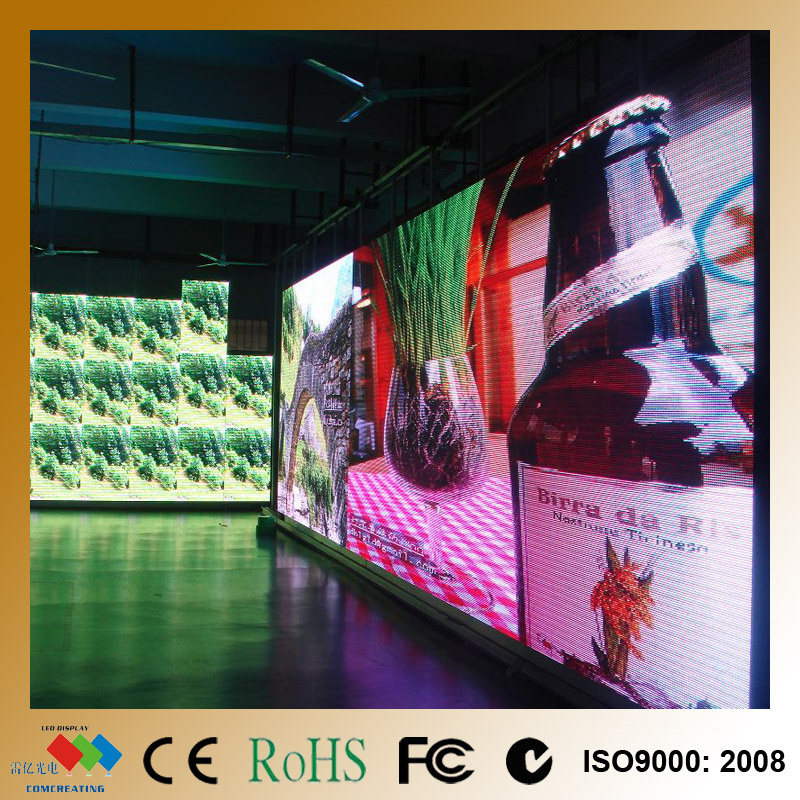

P10 high definition LED video display

1. CE. RoHS. FCC. C-Tick authorized;
2. ISO9001: 2008 QC system;
3. 100.000 hours life span;
4. Water proof. Dust proof;
5. AC 90V to 240V power input;
6. Video. Flash. Animation. Graphic. Text available;
7. PC controlled in real time;
8. Installation structure drawing offered FOC;
9. Easy for installation;
10. 2 years warranty offered;
11. 1% spare parts offered FOC;
12. Training in our factory offered FOC;
13. On-line remote service is available;
14. EXW. FOB. CIF accepted;
15. Factory visiting and inspecting is welcome;
16. OEM service offered;
17. Models available:
P4mm. P5mm. P6mm. P7.625mm. P8mm. P10mm. P12mm. etc. For indoor use;
P10mm. P12mm. P16mm. P20mm. P25mm. P31.25mm. etc. For outdoor use;
LED  Specification
1LED  Chip  Brand Red:   Opto  /  Epistar
Green  &   Yellow:   Silan
2Wave  Length  (nm)R:   625nm;
G:   525nm;
B:   470nm
3Pixel  Configuration1R1G1B
Module  &   Cabinet  Specification
4Physics  Distance  Between  Pixels10  mm
5Physics  Pixel  Density10, 000  Pixel/m²
6Module  Dimensions  (W  x  H)160mmX160mm
7Physics  Pixel  /  Module16  x    16  =  256
8Cabinet  Dimensions  (  W  x  H  xT)960mm  X  960mm  X  190mm
9Physics  Pixel  /  Cabinet96  x    96  =  9216
10Cabinet  Weight55  kg
11Cabinet  MaterialSteel  Cabinet / Aluminum Cabinet
12Cabinet  Frame Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use)
Screen  Specification
13Brightness6500  cd/m² / 8500 cd/m²
14Viewing  Distance  (min,   max)4 -  300m
15Power  Consumption  /  ScreenMAX  :   1000 w/m² ;
Average:     300 w/m² ;
16Drive  Mode1/4  scan,   constant  current  driving
17Refresh  Rate600  HZ
18Frame  Rate60HZ
19Display  Flatness0.5mm
20MaintenanceBack  maintenance,   replace  the  module
21Led  Life  Span100, 000  hours
22Supply  VoltageAC220V/50HZ, ± 10%;
AC110V/60HZ,   ± 10%
23Operating  Temperature-20º C~+50º C
24Operating  Humidity10%-90%
25Storage  Temperature-40º C~+60º C
26Viewing  AngleHorizontal: 120° ;   Vertical:   65°
27Grey  ScaleRed,   green,   blue  each  16k
28Display  Colors4096  Billion
29IP  RatingIP65  water  proof,   dust  proof
30Aging  Time  in  FactoryMore  than  72  hours  constantly
Control
31The  SoftwareLED  Studio
32System  SupportedWin  98  /  2000  /  2003  /  XP / WIN7
33Control  ModeReal  Time  Control  (Synchronous)
34Display  CapabilityFlash,   Video,   Graphic,   Text
35Signal  SupportedRGB,   VGA,   DVI,   etc.
Prod Model: P10 outdoor
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection: IP 65, Water Proof, Dust Proof
Compatibility: PC, Video Processor, Camera, I-Pad, etc.
Control: PC Control in Real Time
Power Input: AC 220V/50Hz; AC 110V/60Hz, ± 10%
Pixel Configuration: 1r1g1b
Weight: 60 Kg/M2
Chip Brand: Epistar / Opto & Silan
Signal Port: Rj 45
Resolution: 10, 000 Pixels/M2
FOB Port: Shenzhen
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 300W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.

Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.

Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
