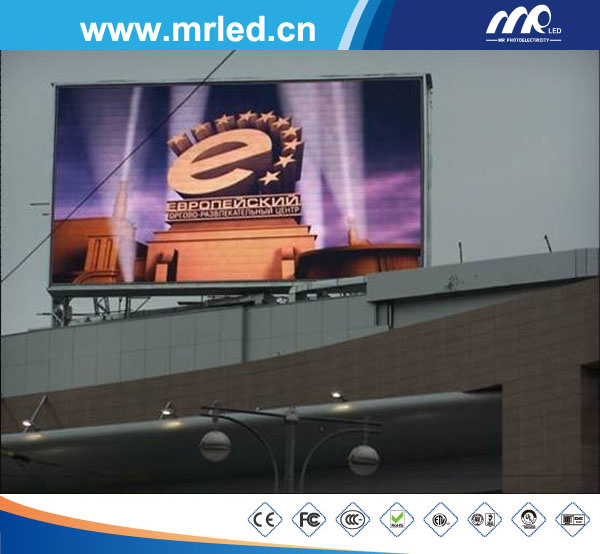

P10 full color outdoor video LED display for advertising:
P10 outdoor LED Display uses state-of-art LEDs, which has the brightness for indoor and outdoor application. The LED display has the advantage of excellent flatness, super uniform color and brightness. The LED Display has long viewing distance. Theoutdoor LED display cabinet of the rental LED display use aluminum which make the weight very light and easy to assemble.
Full color Outdoor LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
2. (Advertising LED Display)Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
3. Description:
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm, P31.25mm, P40mm, P50mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 1 year with parts
|
Item |
10mm outdoor LED Display(960*960mm) |
|
Pixel Pitch: |
10mm |
10mm |
10mm |
|
Driving Method : |
1/2 |
1/4 |
1/2 |
|
LED type : |
SMD3535 |
DIP346 |
DIP5454 |
|
Brightness: |
≥5500cd/m2 |
|
Pixel density |
10000pix/m2 |
|
Viewing angle: |
140°H and 120°v |
120°H and 60°v |
140°H and 120°v |
|
Module Size(W*H) |
160*160mm |
|
Cabinet Size(W*H) |
960*960mm |
|
Cabinet weight: |
42kg |
|
Cabinet Material: |
Aluminum |
|
Avarage Power Consumption: |
525 W/m2 |
260 W/m2 |
525 W/m2 |
|
Max Consumption : |
1250 W/m2 |
750 W/m2 |
1250 W/m2 |
|
Refresh rate: |
>1200HZ |
|
Color Depth: |
14bit |
14bit |
14bit |
|
voltage : |
200-240V |
200-240V |
200-240V |
|
IP Rrating (Front/Rear): |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
|
Operating temperature : |
-20-60 degree |
|
Storage temperature: |
-40-70 degree |
|
Operation humidity: |
10-90% |
|
Storage humidity: |
10-90% |
|
Life span (hrs) |
≥55000 |
|
Control system |
Linsn/Nova |
|
Compliant standard: |
CE,FCC,RoHS,CCC |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
